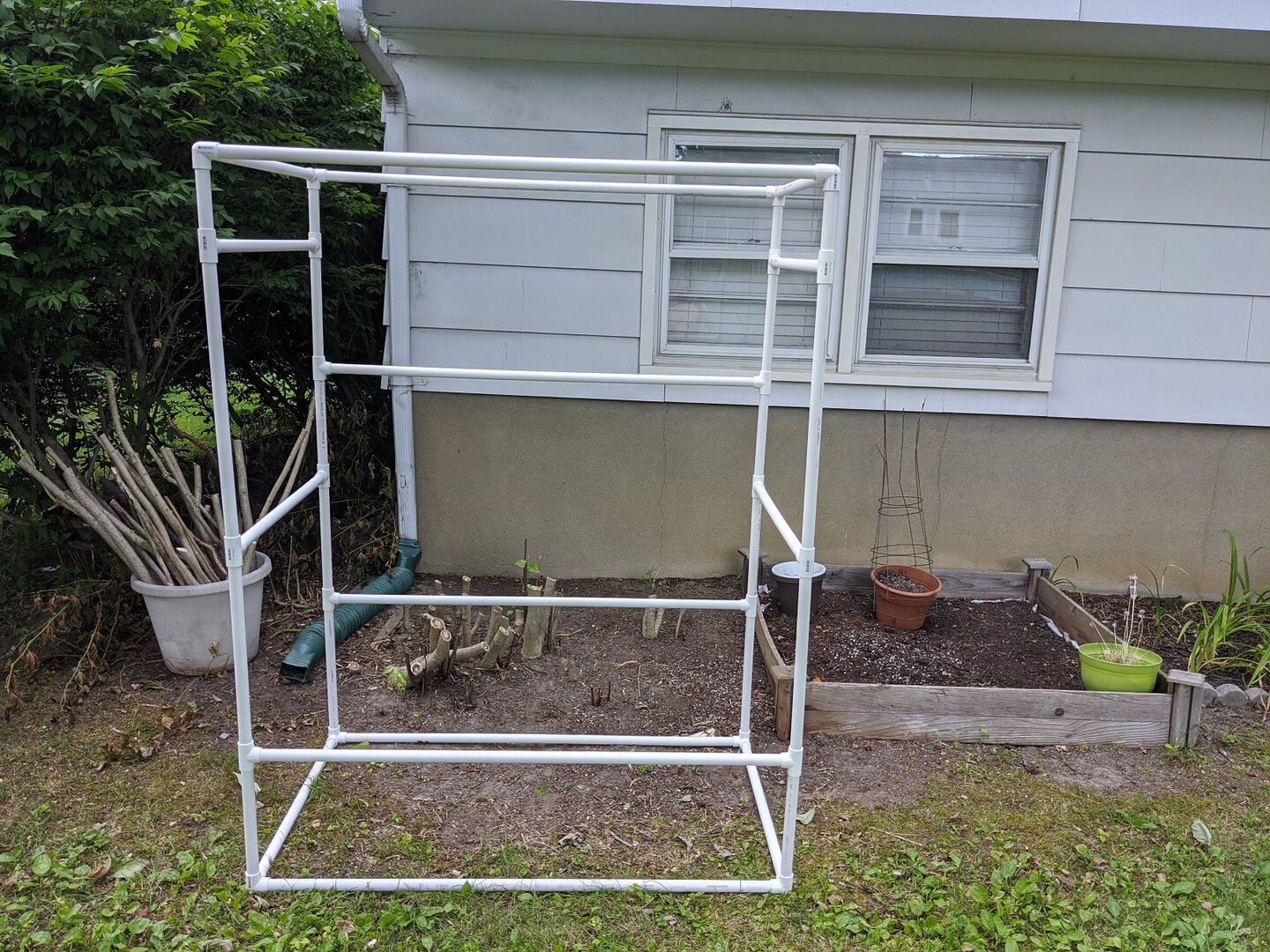

Outdoor PVC enclosure build

RyanBRZ

Avid Member
I have no idea why 2 of them are there to be honest, only 1 is in use. Maybe the empty ones are needed to stabilize/eliminate pressure in the house when the heat or AC is on? This floor was renovated after flooding from hurricane sandy, you'd think they would have closed up the holes if they weren't needed.


RyanBRZ

Avid Member
Thanks!

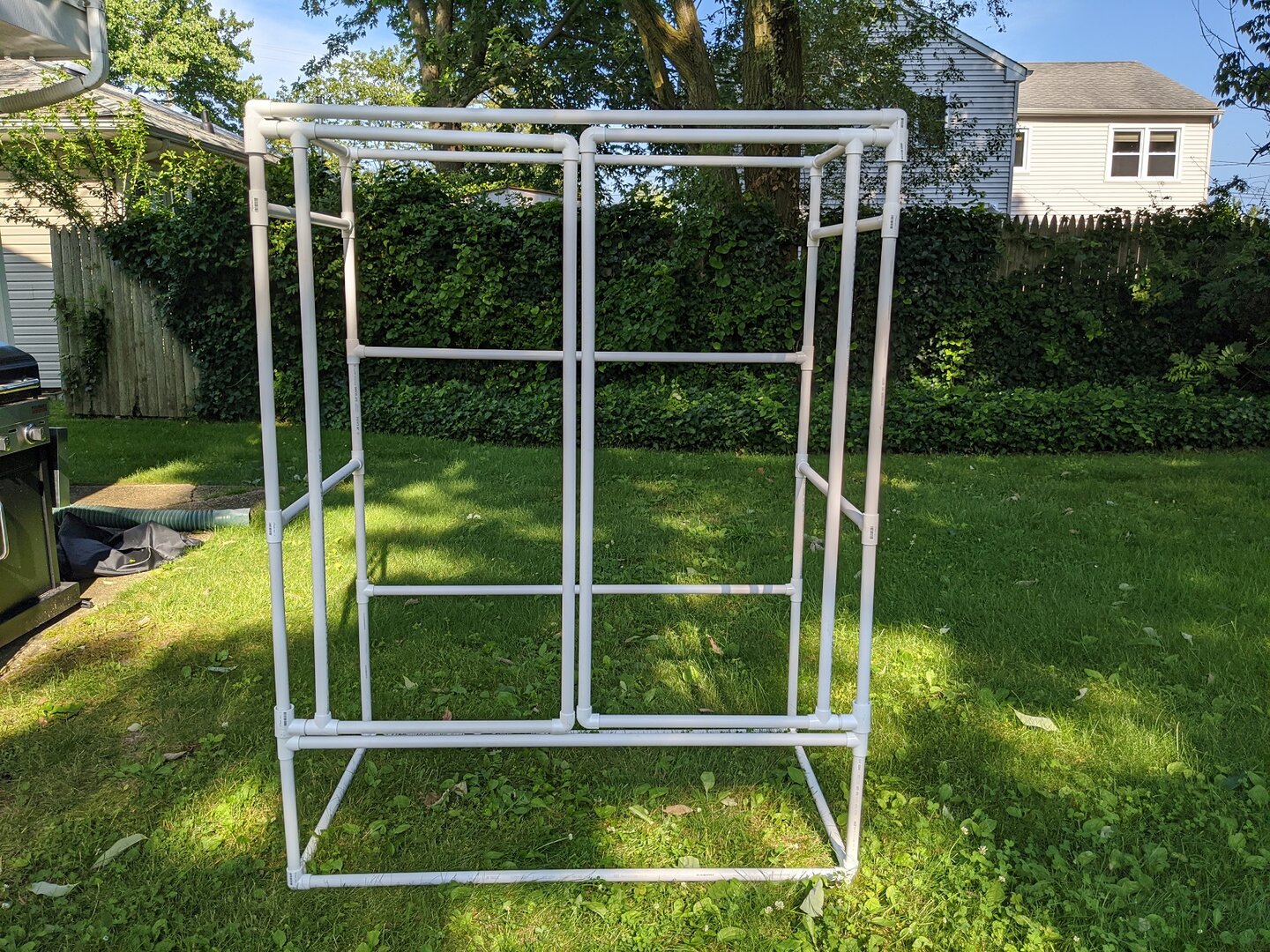

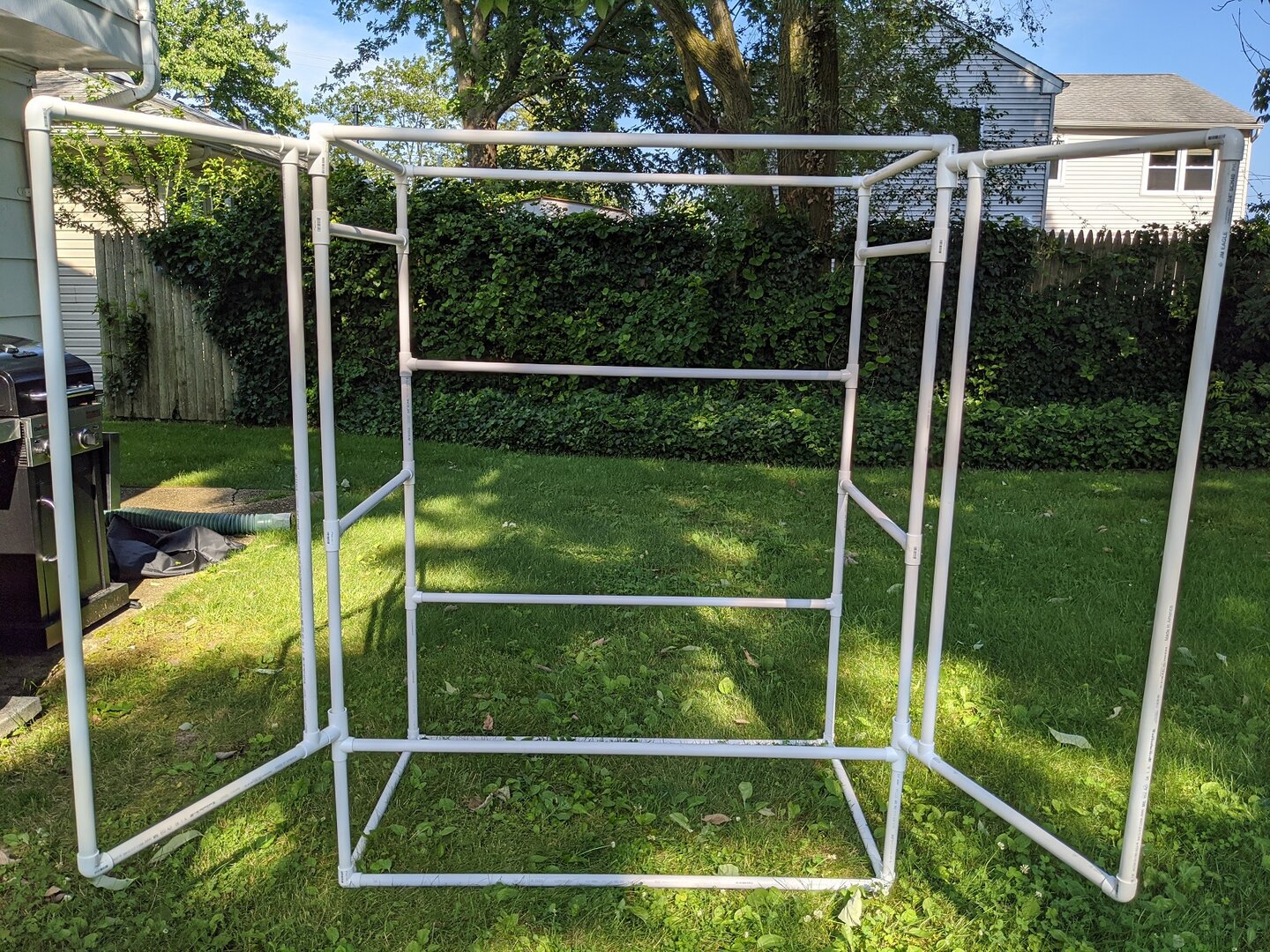

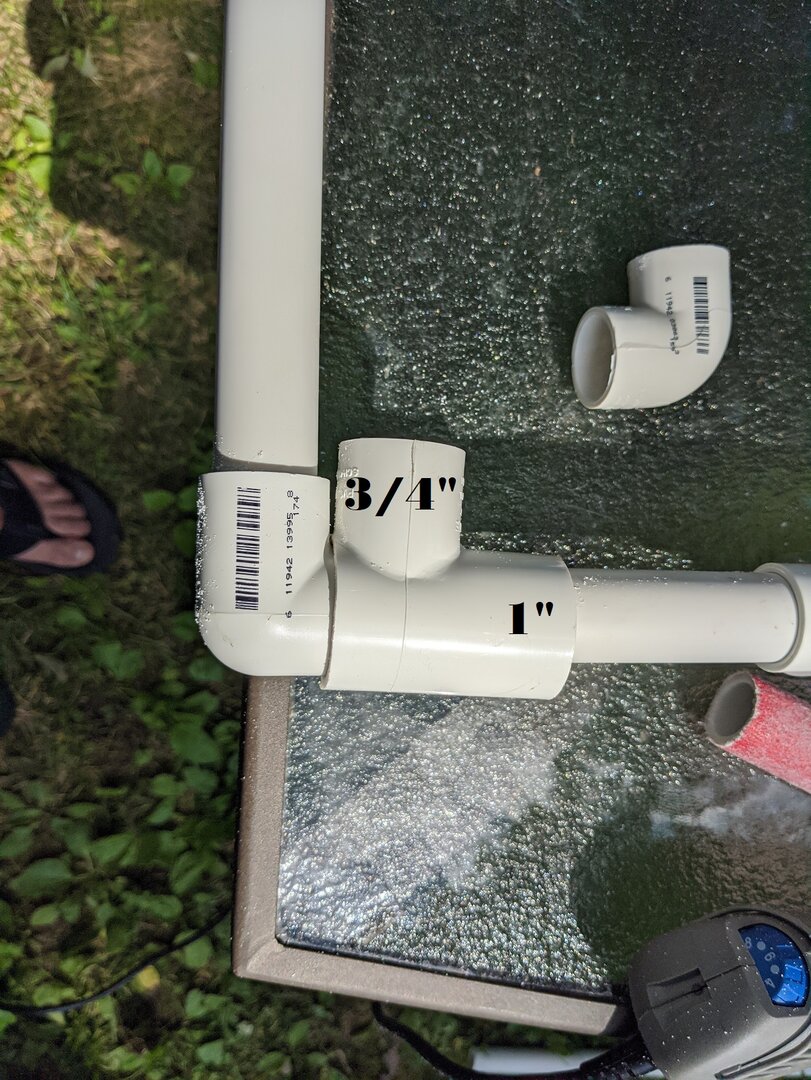

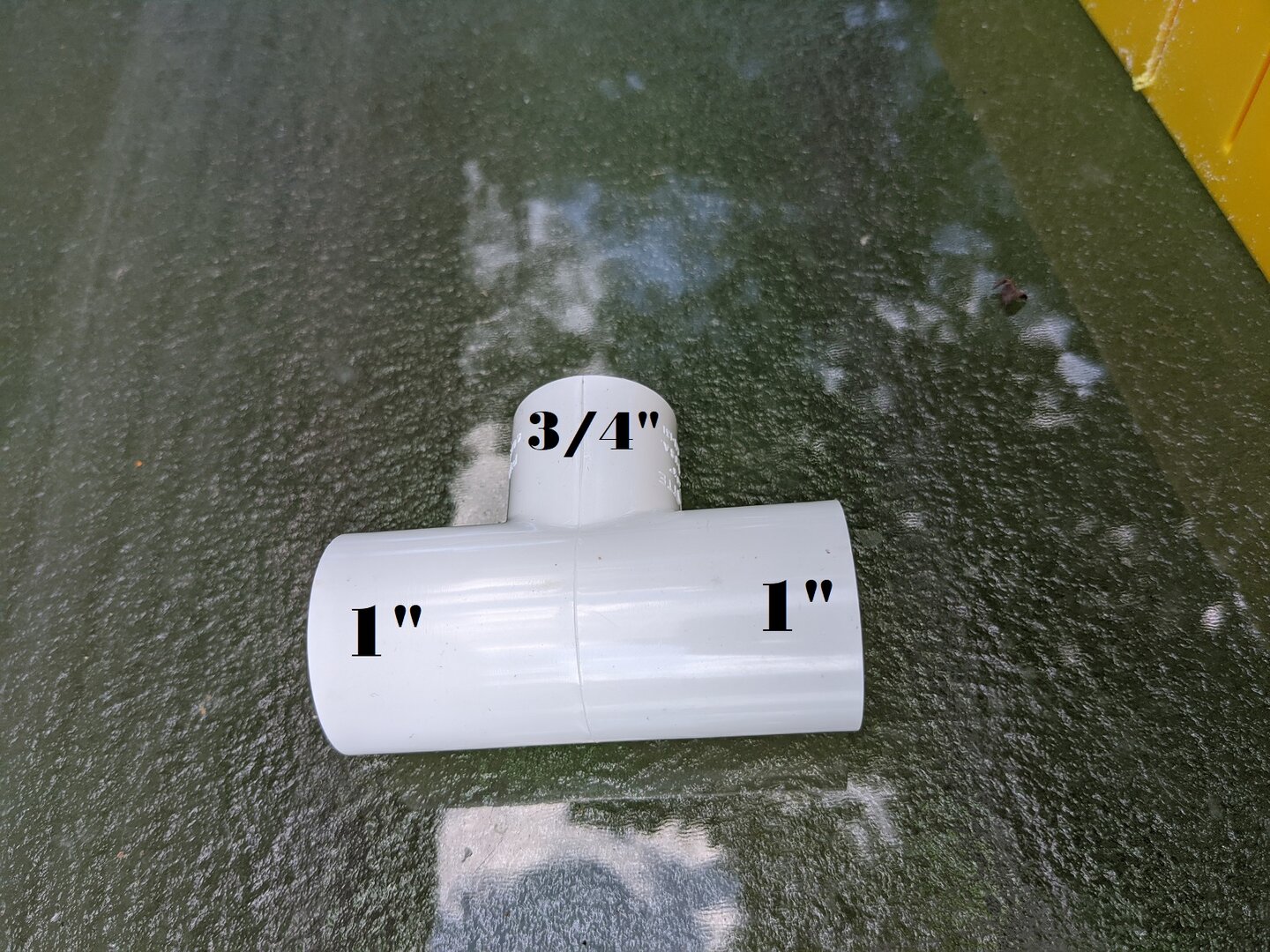

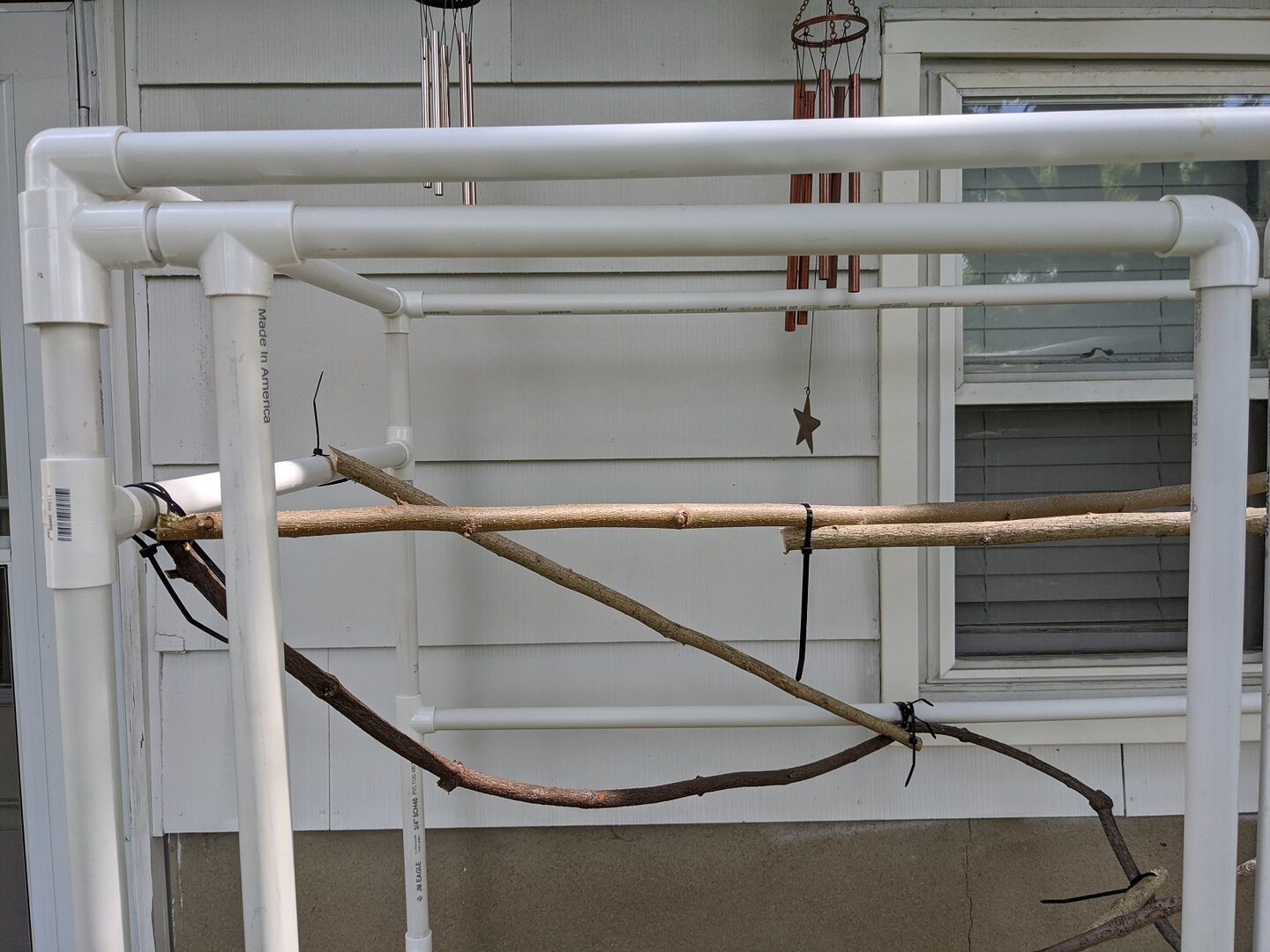

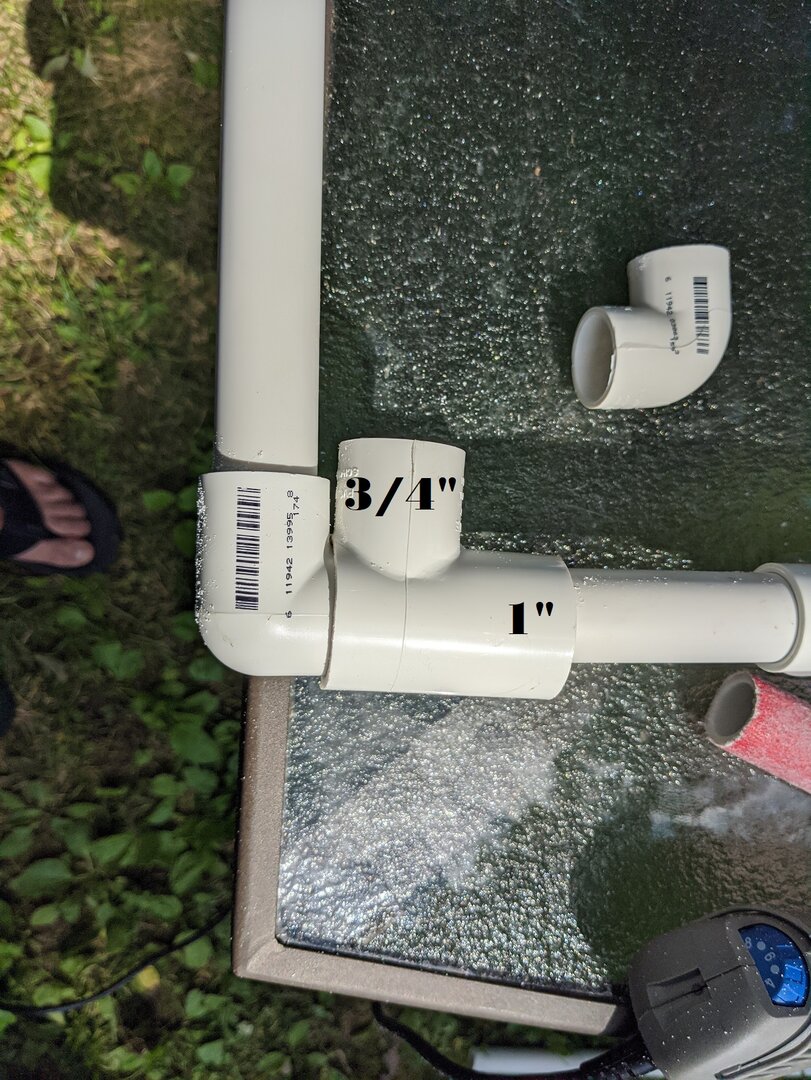

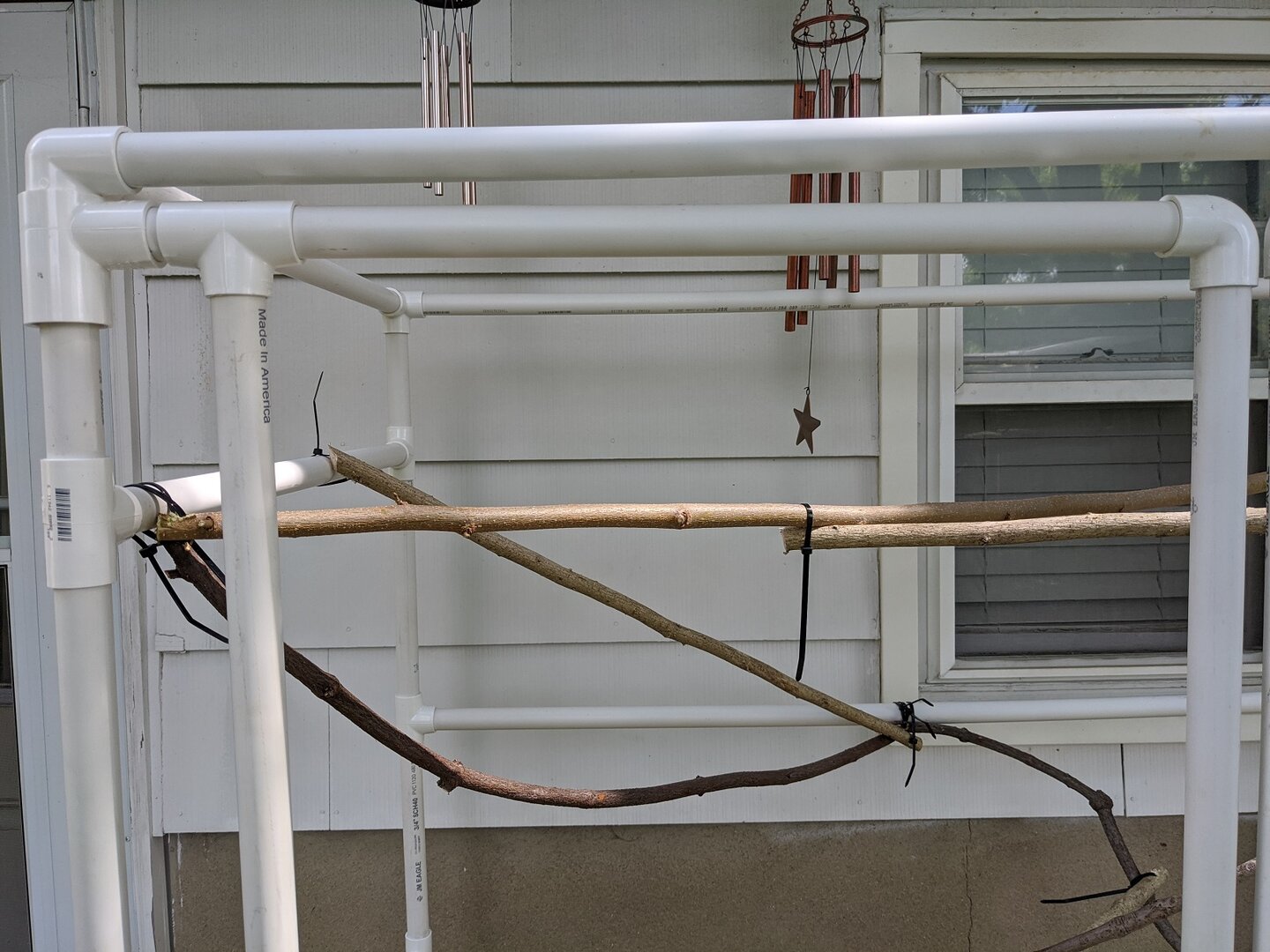

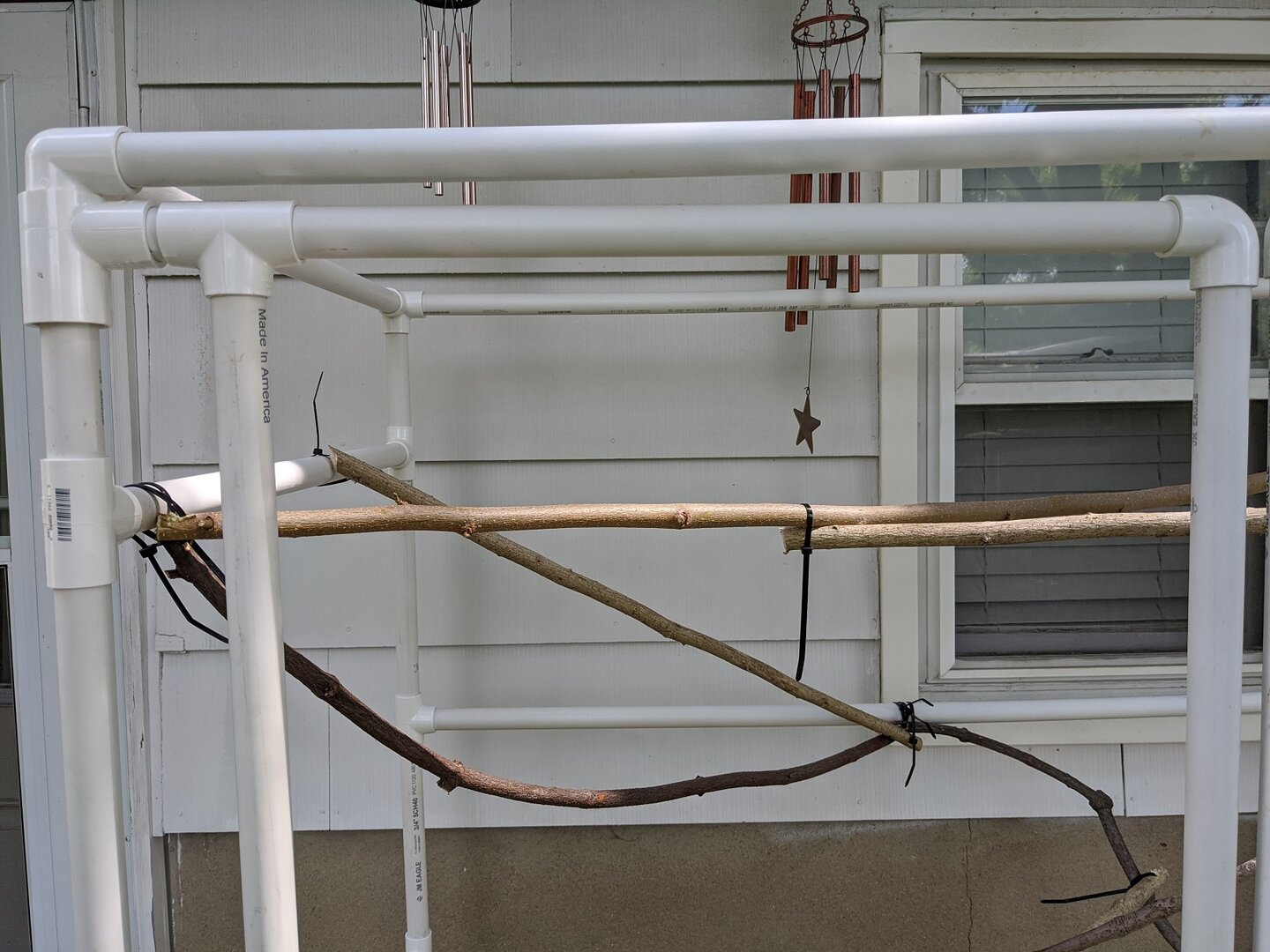

I bought 4 T fittings, slightly over-sized (1" to fit over 3/4" PVC) to work as hinges. I had to cut off one arm of the T on each to reduce the gap to the frame, and then dremel out some material to make it large enough to slide over the elbow fitting.

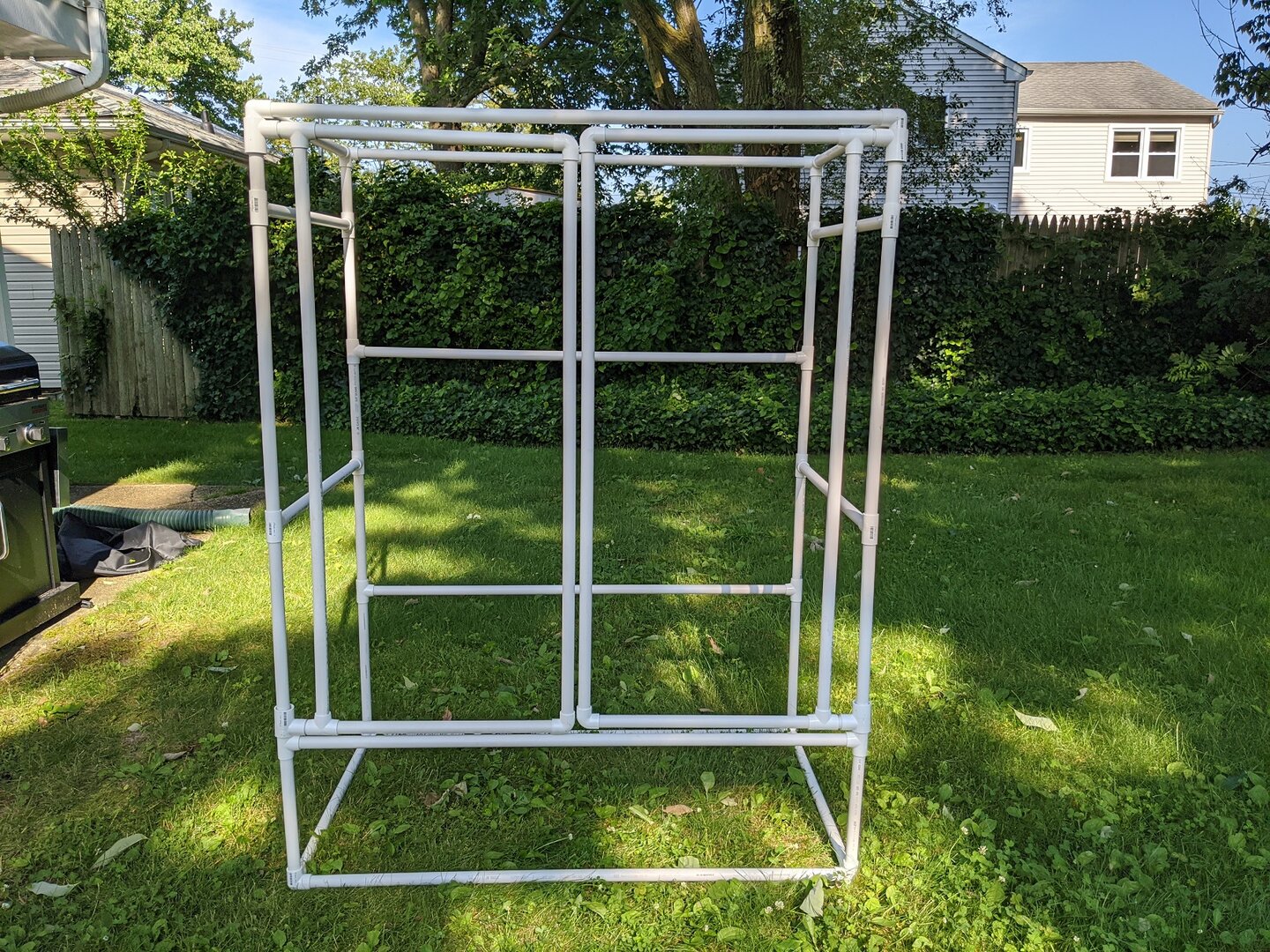

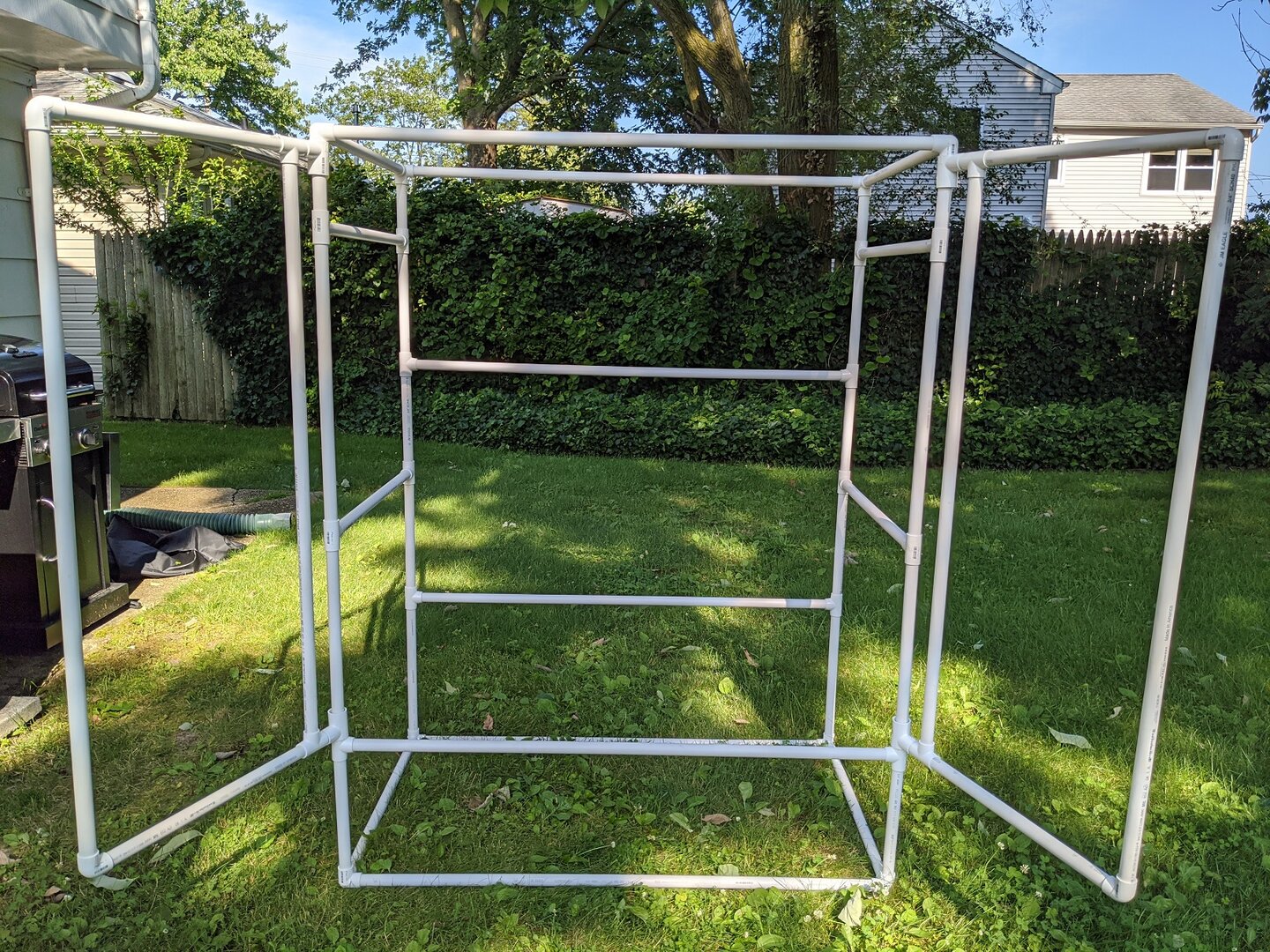

There is a slight door-to-frame gap on the top and bottom. I am going to install a 2-3" tall piece of plastic/aluminum board to both cover this gap, and to prevent the doors from swinging inside of the cage. If I can find something strong enough, I'd like the doors to actually hook onto something, so they are not just hanging from the hinges.

IMG_20200628_151620.jpg IMG_20200628_154548.jpg IMG_20200630_103012.jpg


Beman

Chameleon Enthusiast
Thanks!

I bought 4 T fittings, slightly over-sized (1" to fit over 3/4" PVC) to work as hinges. I had to cut off one arm of the T on each to reduce the gap to the frame, and then dremel out some material to make it large enough to slide over the elbow fitting.

There is a slight door-to-frame gap on the top and bottom. I am going to install a 2-3" tall piece of plastic/aluminum board to both cover this gap, and to prevent the doors from swinging inside of the cage. If I can find something strong enough, I'd like the doors to actually hook onto something, so they are not just hanging from the hinges.

View attachment 270892 View attachment 270893 View attachment 270894

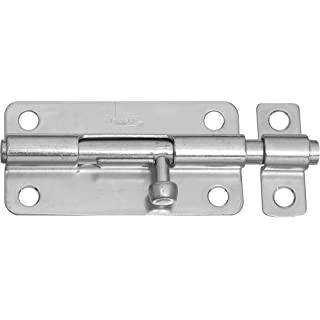

Very creative way to do it! I like it. Have you thought about just hooking a slide lock to it on the top of the doors and the bottom as well. This would apply pressure to both sides. Or if you added in a vertical piece on the frame where the doors meet in the middle. You could do small hooks from it to each door. might have to shorten your door width just slightly though.

This is what I did in mine and it helped with the doors. With wood but same idea.


RyanBRZ

Avid Member
I am on the fence with how to handle locking the doors, I want to avoid cutting anything, if possible. I am thinking of maybe installing hooks from the top, one for each door, that I can hook/rest the doors onto when closed, and then use a slide-lock on the doors, locking them to each other, as an extra level of security.

Also need to decide if I am going to cement any of these parts, right now it's just pieced together. Thought about cementing only the front and rear panels, this way I can take the cage apart and store it over the winter.


Beman

Chameleon Enthusiast
I am on the fence with how to handle locking the doors, I want to avoid cutting anything, if possible. I am thinking of maybe installing hooks from the top, one for each door, that I can hook/rest the doors onto when closed, and then use a slide-lock on the doors, locking them to each other, as an extra level of security.

Also need to decide if I am going to cement any of these parts, right now it's just pieced together. Thought about cementing only the front and rear panels, this way I can take the cage apart and store it over the winter.
Yeah I have only worked with PVC in a very limited capacity. But I would think if you do cement anything then just do panels so that you can take a part each piece for storage.

You are doing a great job. It is one of the best PVC enclosures I have seen. Great example for others to follow.

Last edited:

RyanBRZ

Avid Member
Yeah I have only worked with PVC in a very limited capacity. But I would thing if you do cement anything then just do panels so that you can take a part each piece for storage.

You are doing a great job. It is one of the best PVC enclosures I have seen. Great example for others to follow.
Thanks! It was/is a fun project. I will post my full parts list, cost, and helpful hints when I have some time.


RyanBRZ

Avid Member
Here's the parts list, it totaled around $55-$60 from Home Depot

PartSizeCount
3-way corner fitting 3/4"8
T fitting3/4" x 3/4" x 3/4"18
T fitting 1" x 1" x 3/4"4
Elbow fitting 3/4"4
PVC Pipe 3/4" x 10'10

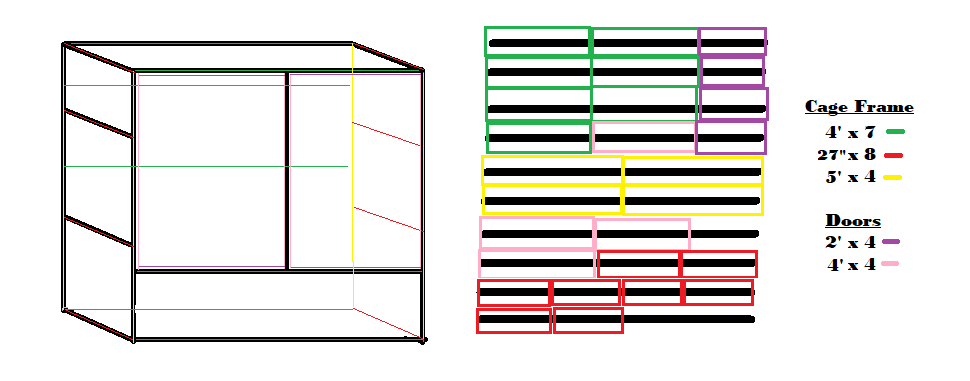

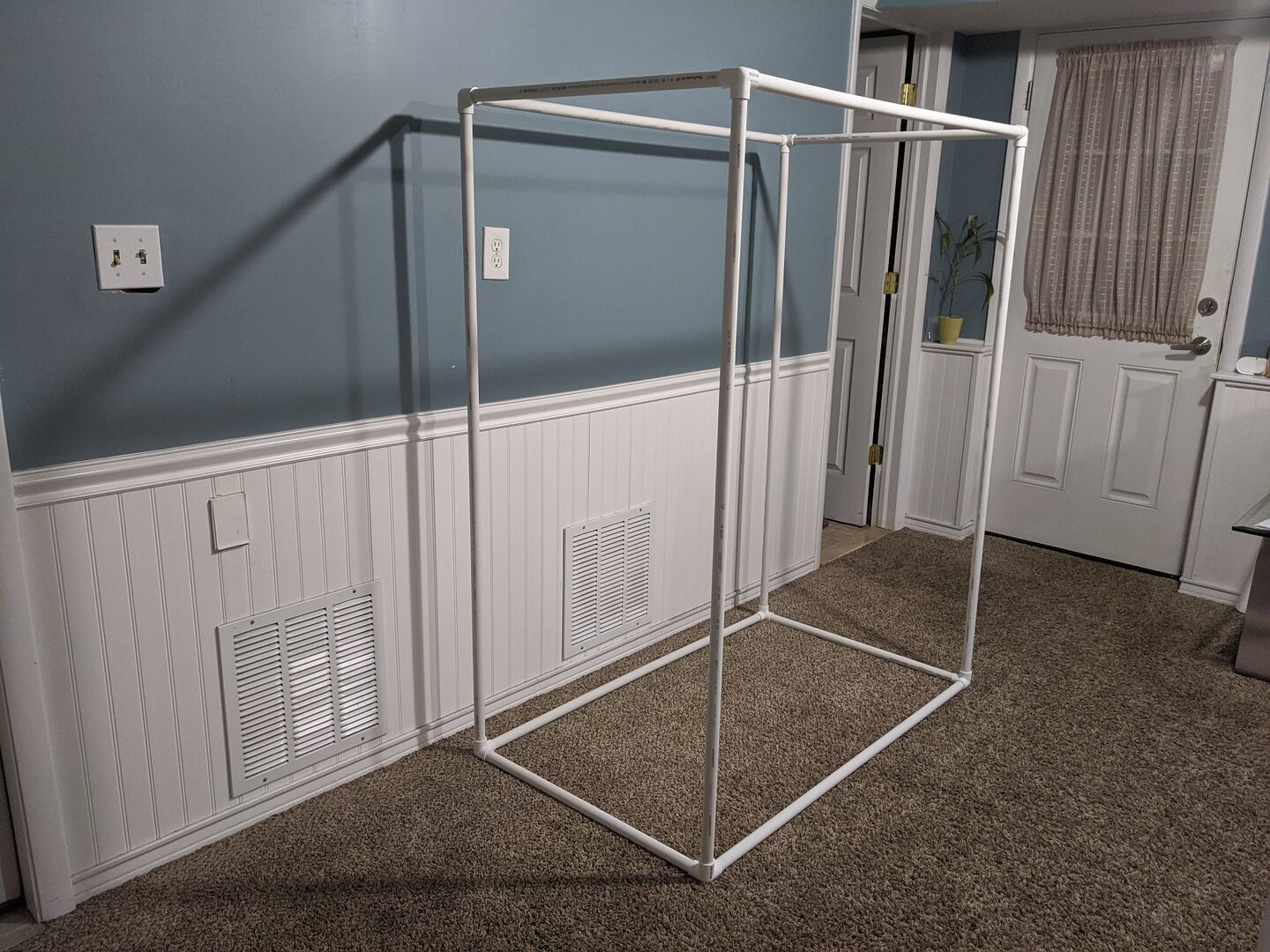

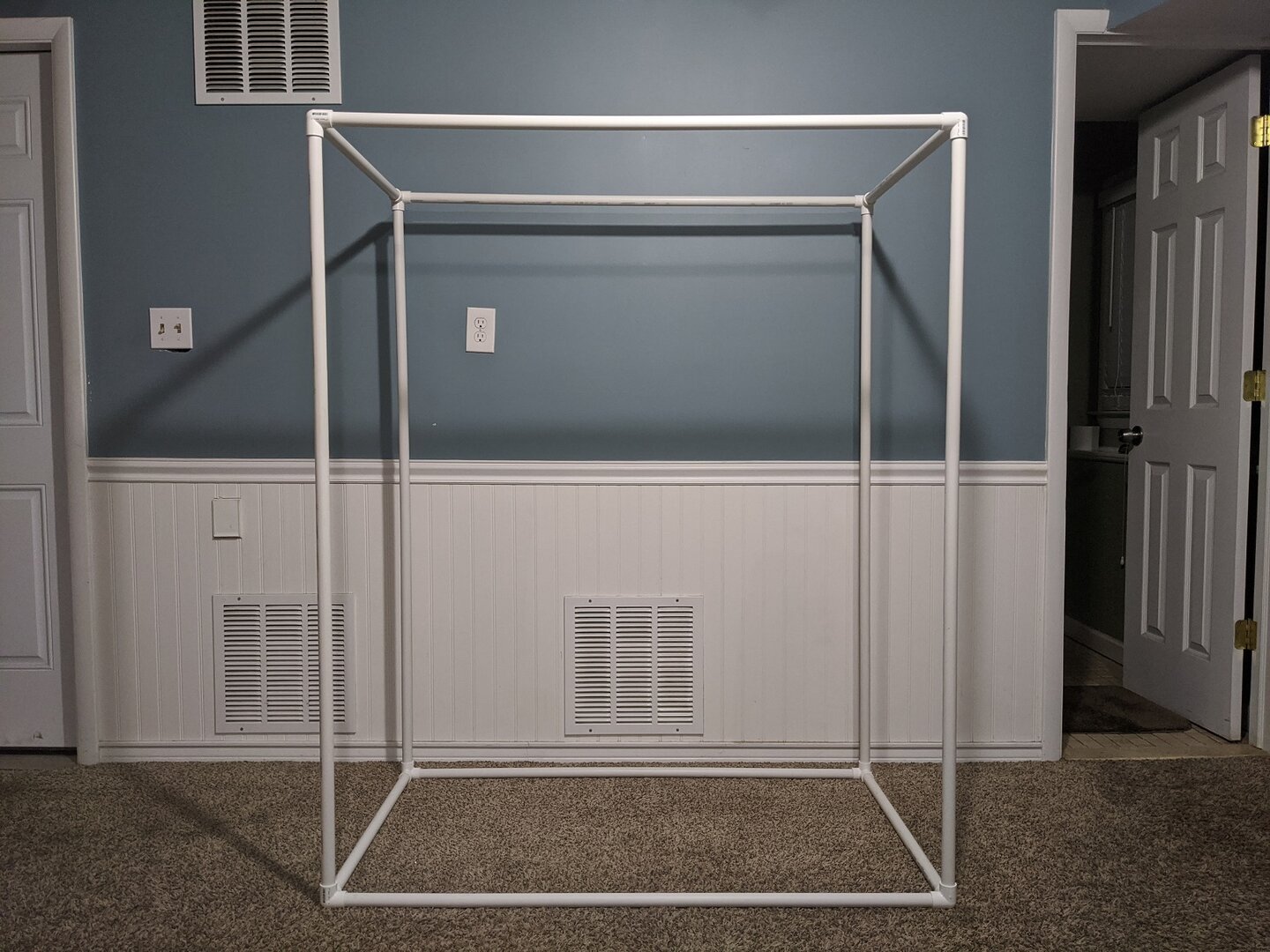

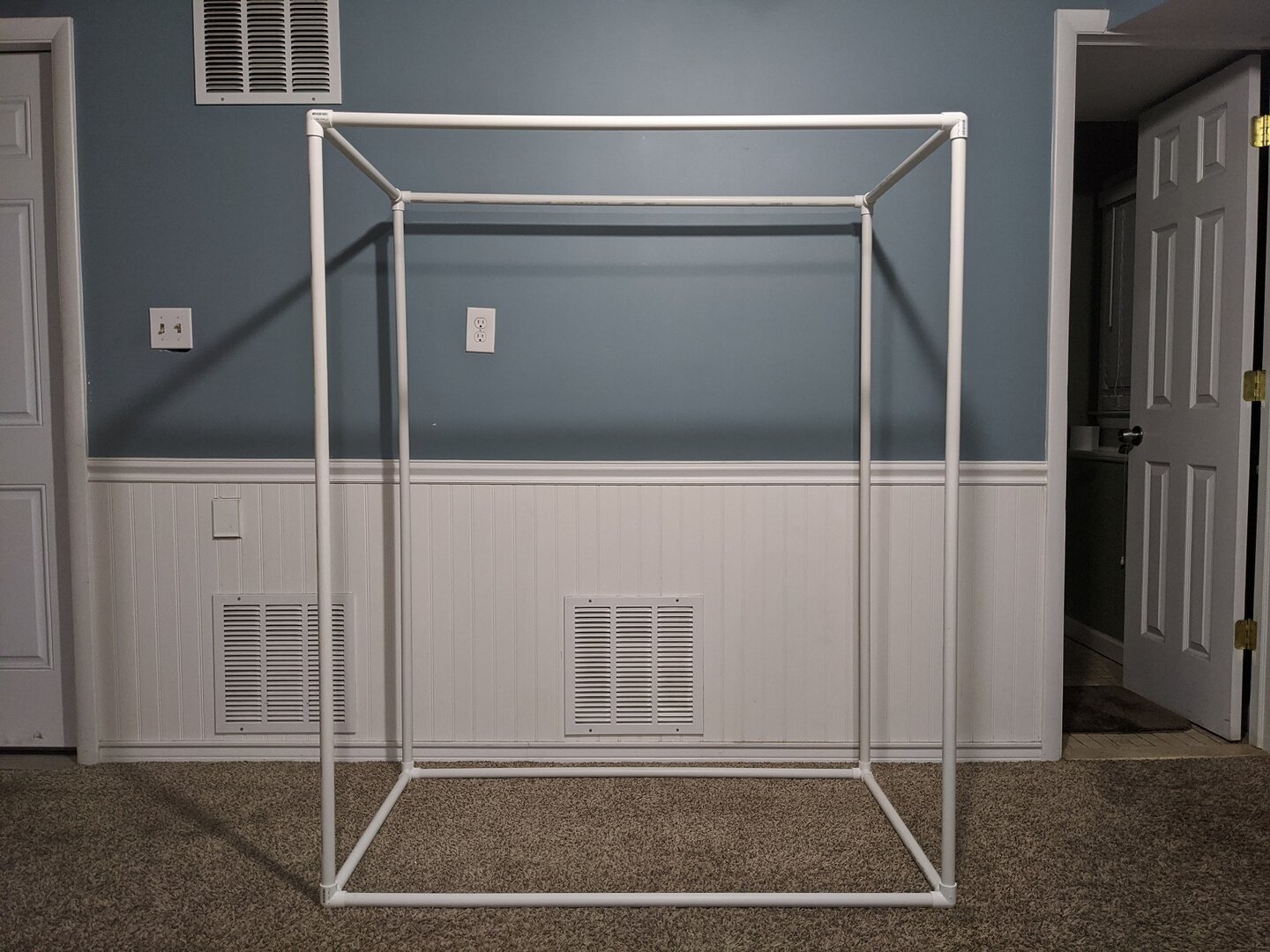

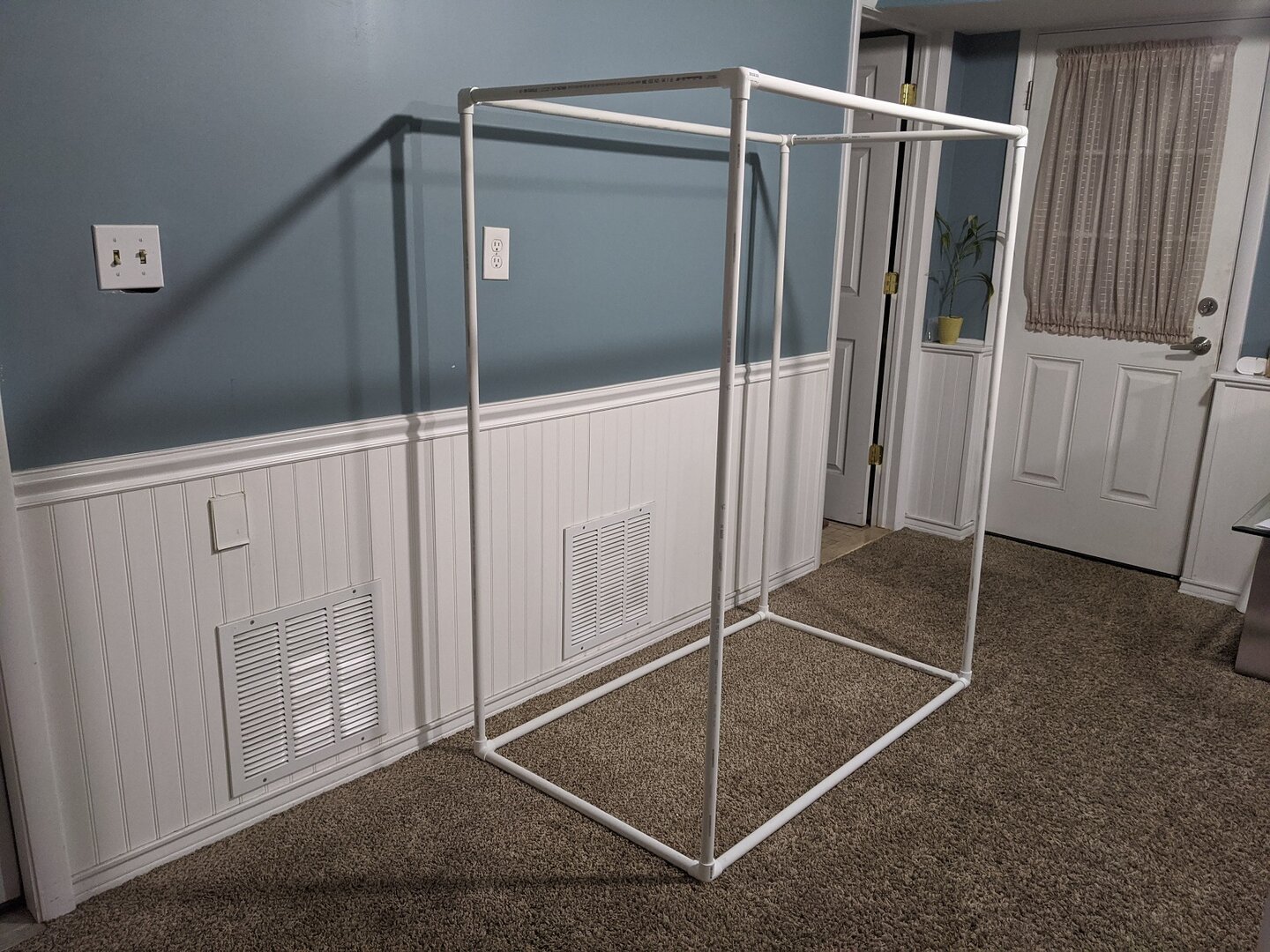

I started by building the cage in MS Paint (don't hate) and then I marked the PVC pipes where I planned to cut based on my sketch. To cut the PVC I used a miter box hand saw, they also sell cutter tools but I have no experience with them.

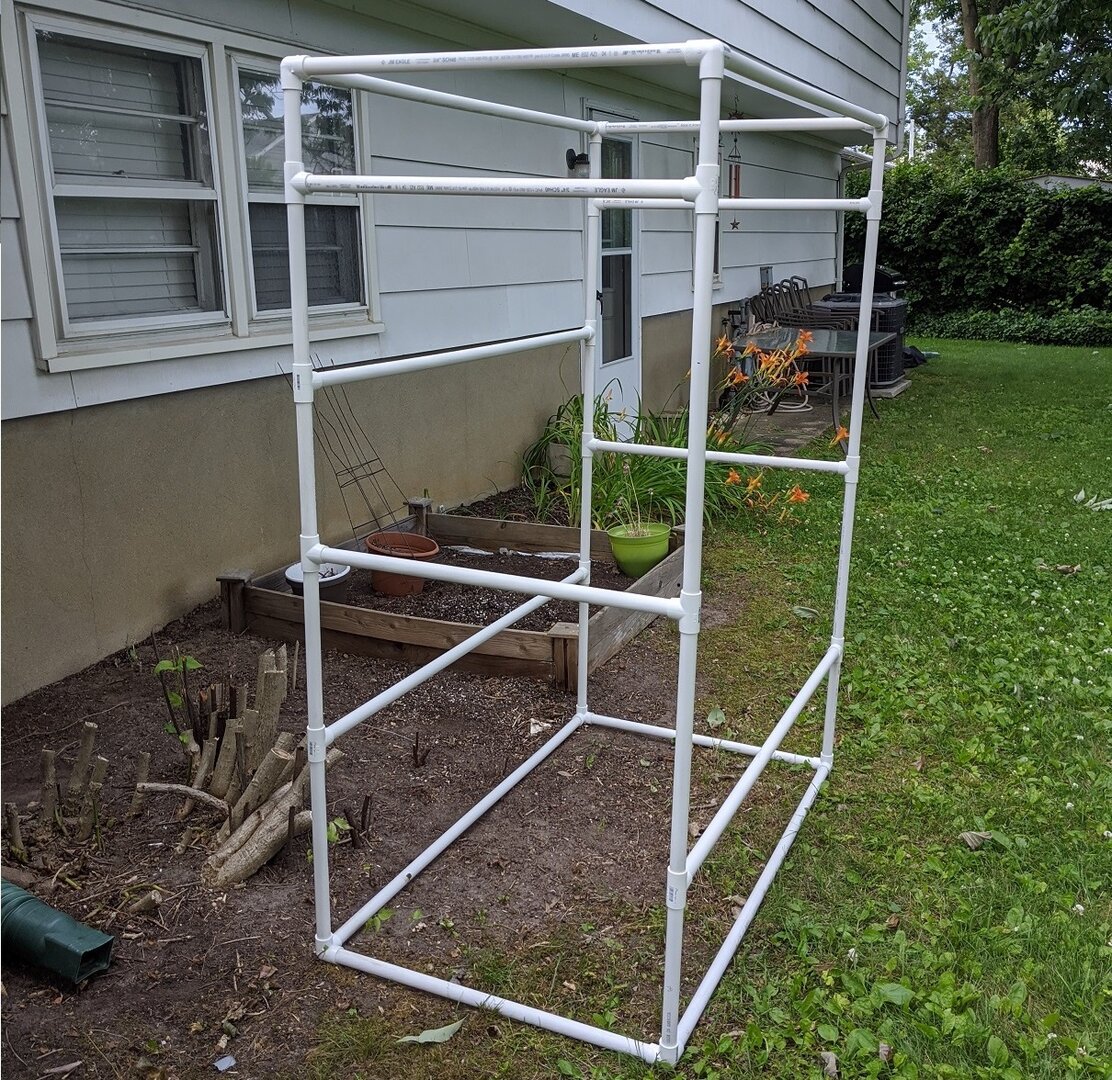

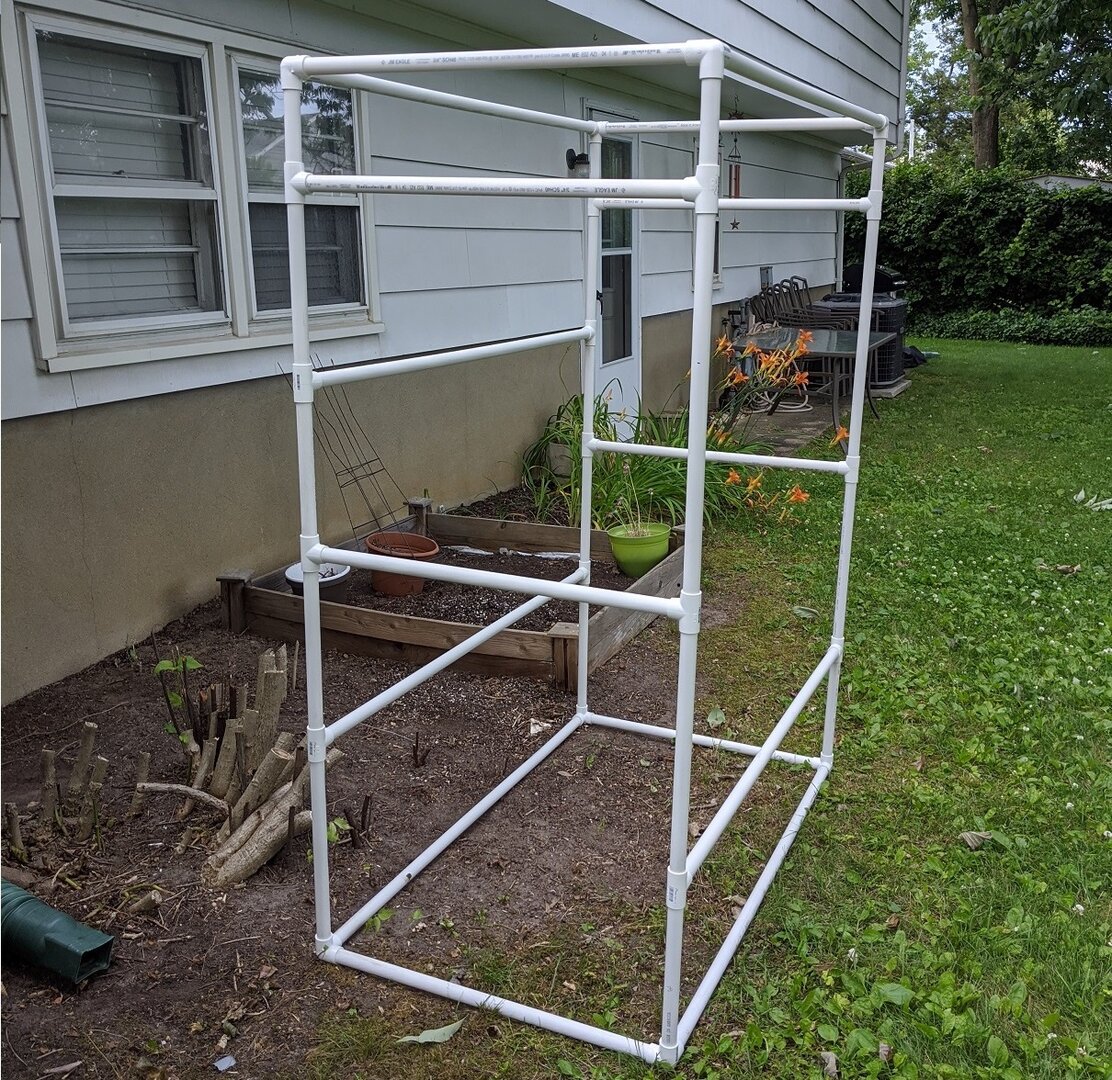

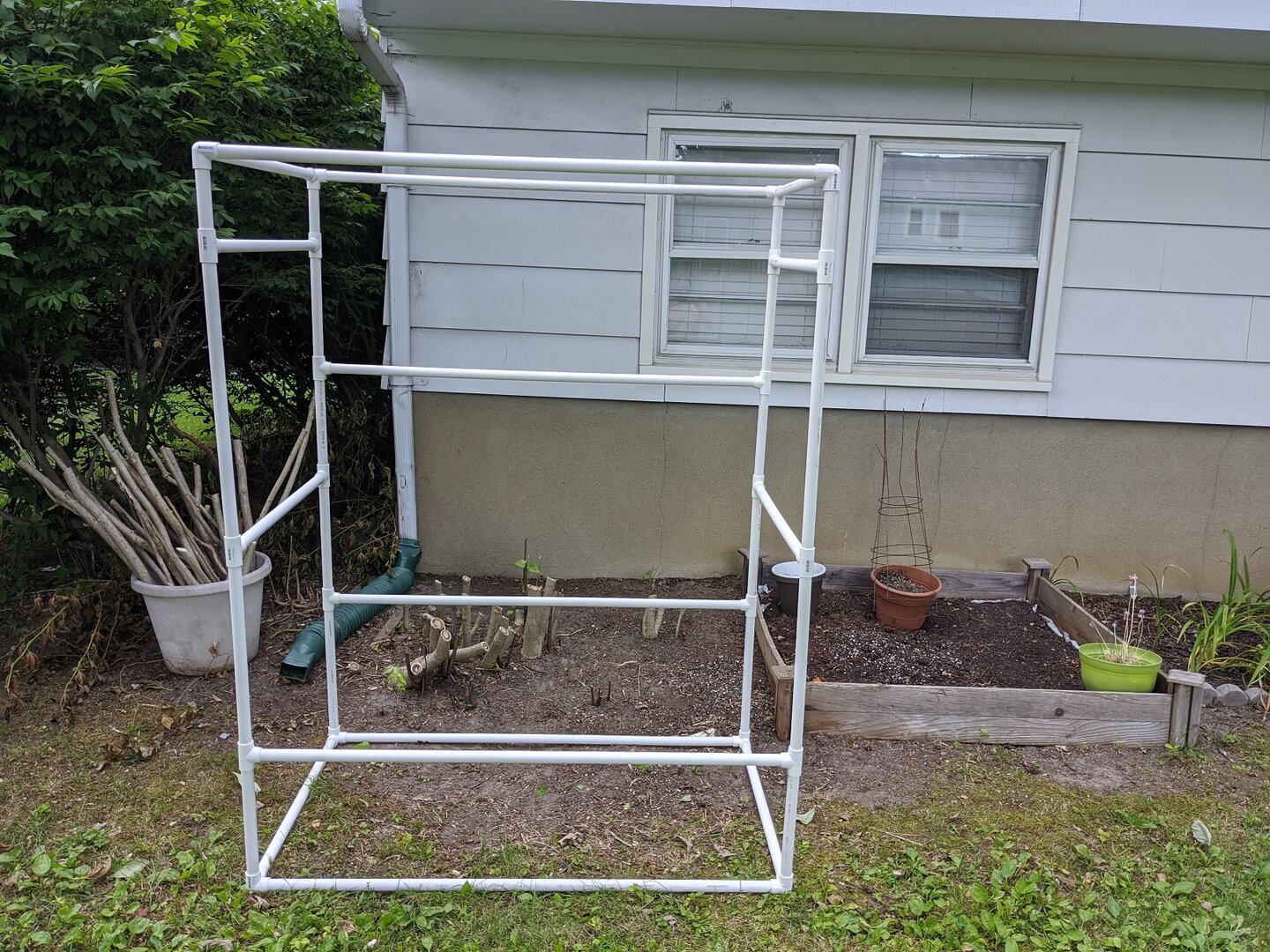

Keep in mind that the fittings add length/height to the PVC so your cage will end up being a few inches bigger than the dimensions of the pipes. The back of the cage has an extra set of fittings where the front does not (4 vs 3), causing the back to be slightly taller and uneven. You will need to improvise here by cutting away some PVC pipe from the back, while also taking into consideration that the distance between each of the side and back supporting bars needs to remain consistent or it will be uneven/crooked looking. I don't remember specifically what I did, but it worked. If you mess up, it's not the end of the world being PVC is cheap, but you can build a complete cage using 10 pipes with only a little left over if you make no mistakes.

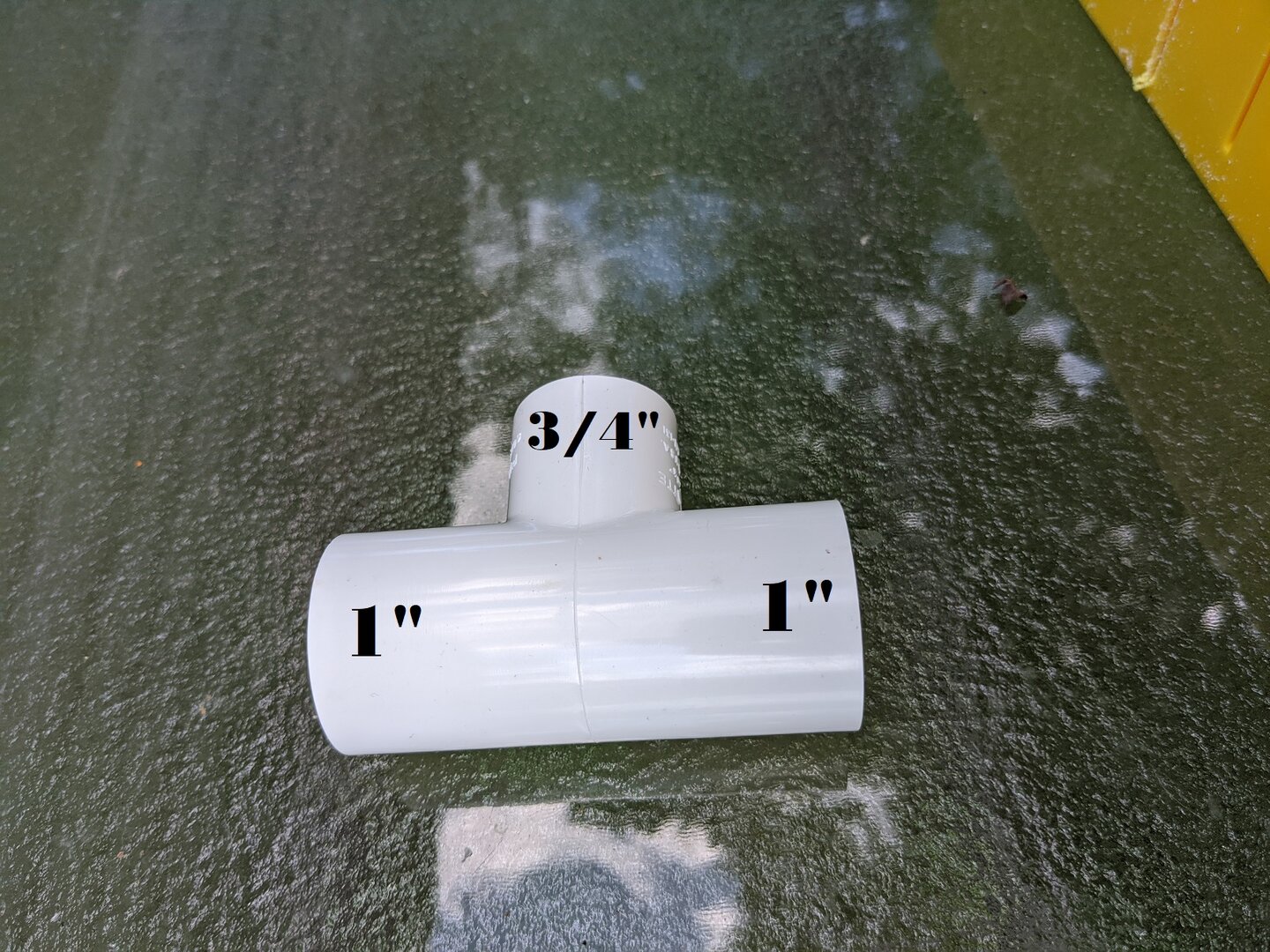

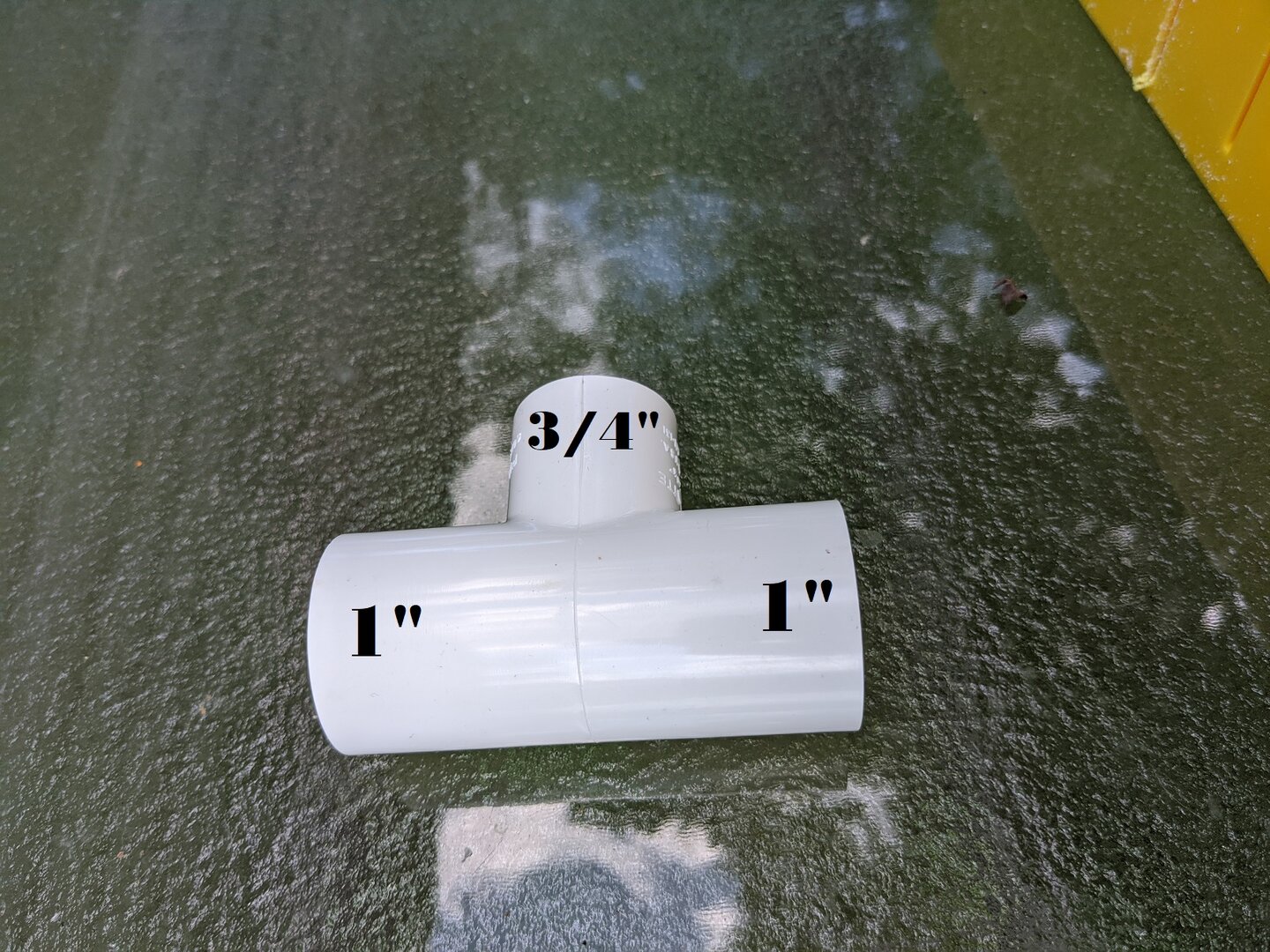

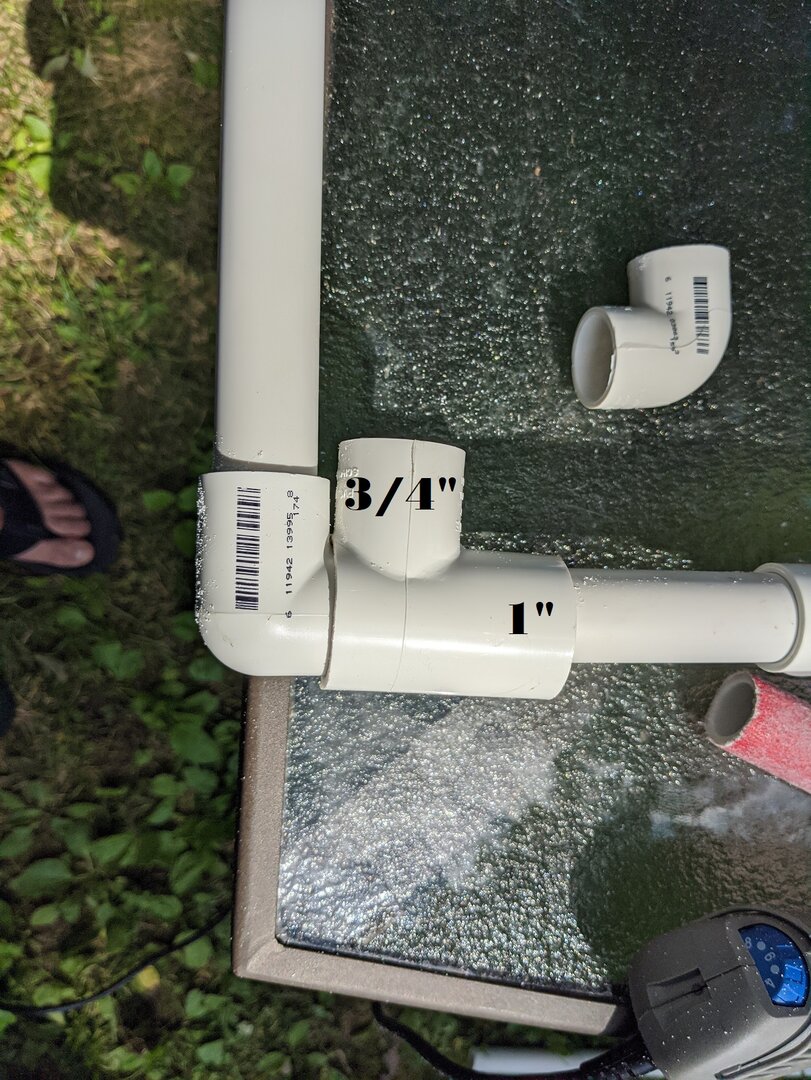

In my post above I covered how to make the door hinges using the 1"x1"x3/4" PVC T's. You will need a Dremel or similar tool using a round sanding bit to take away some of the inside material to allow it to slide over the 3/4" elbow.



Ramrod

Avid Member
I am on the fence with how to handle locking the doors, I want to avoid cutting anything, if possible. I am thinking of maybe installing hooks from the top, one for each door, that I can hook/rest the doors onto when closed, and then use a slide-lock on the doors, locking them to each other, as an extra level of security.

Also need to decide if I am going to cement any of these parts, right now it's just pieced together. Thought about cementing only the front and rear panels, this way I can take the cage apart and store it over the winter.
Looks great. What material are you planning on using for the screening and method of attatchment?


Reptofreak

Avid Member
Great work, looks awesome! Can’t wait to see the finished product.

I just used wood for my outdoor enclosure, but I can see a real benefit to using a more weather resistant material like pvc.


RyanBRZ

Avid Member
Looks great. What material are you planning on using for the screening and method of attatchment?

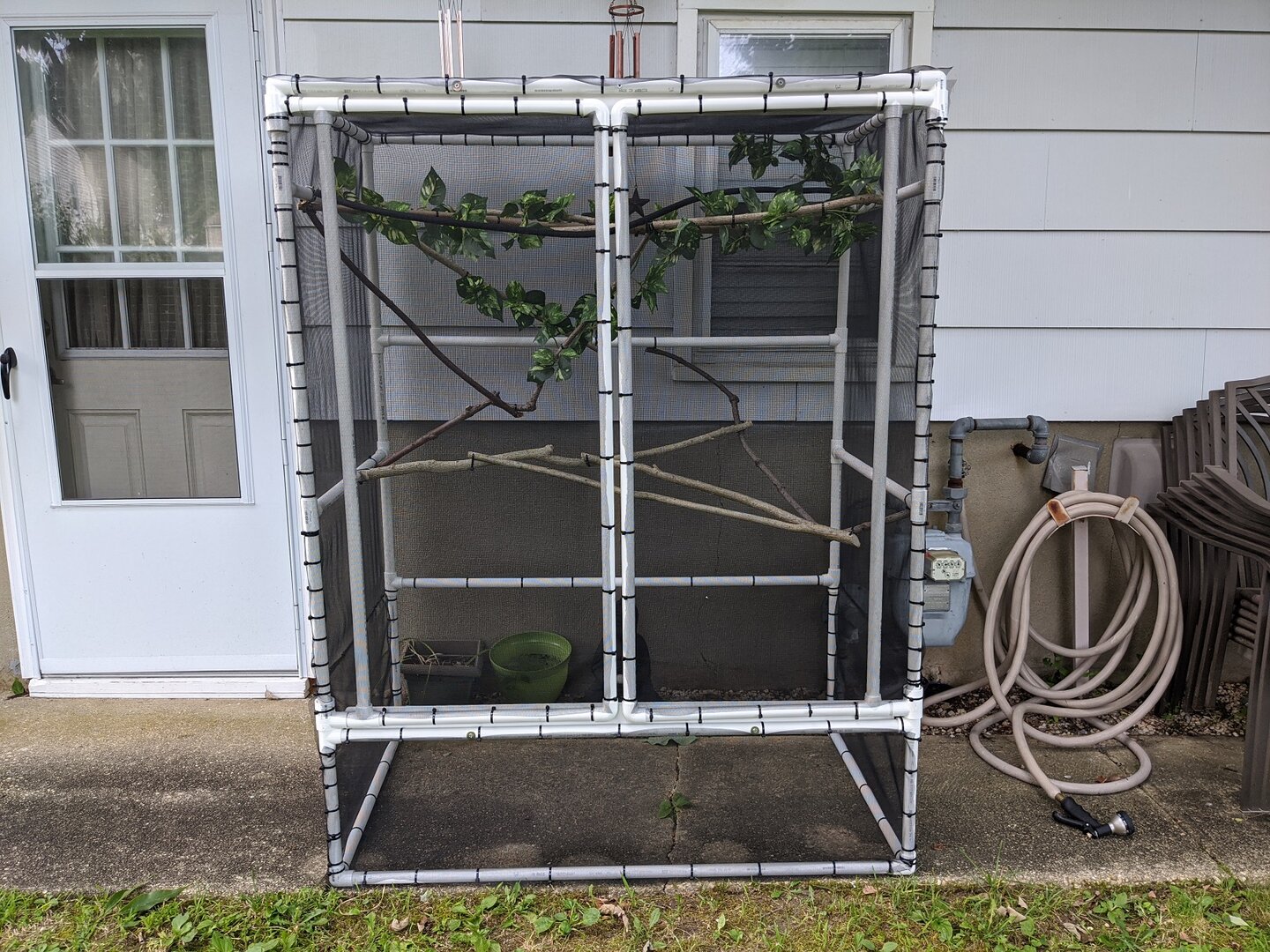

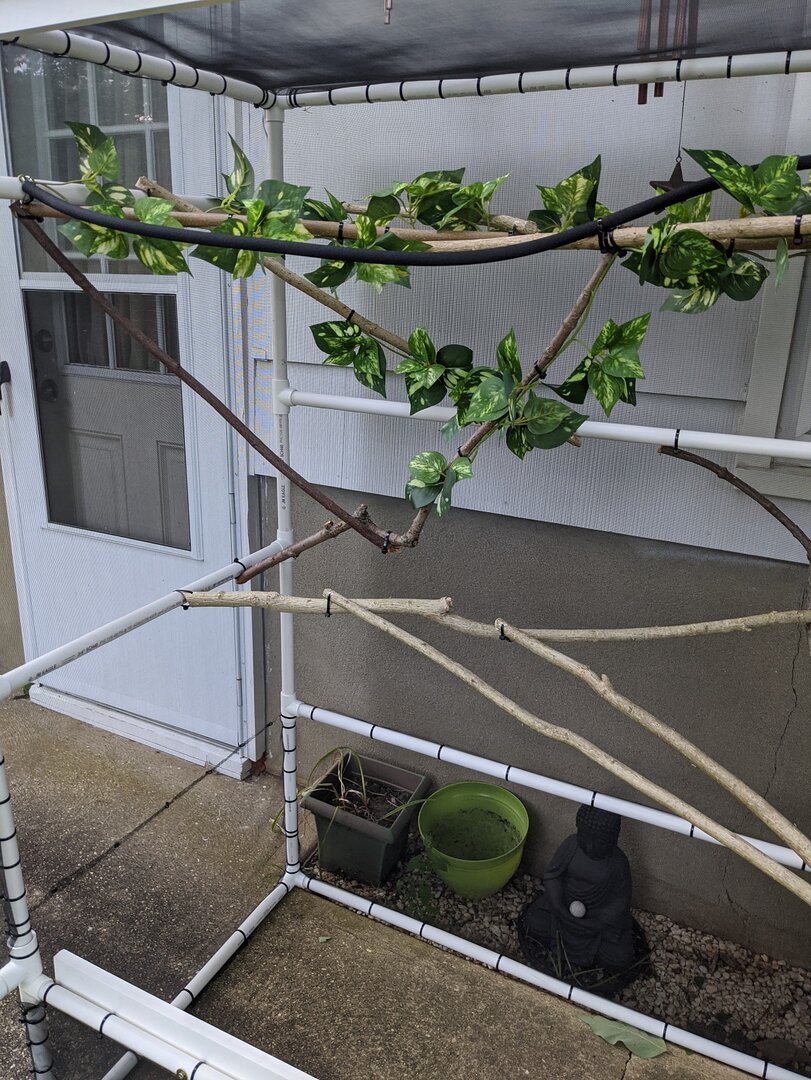

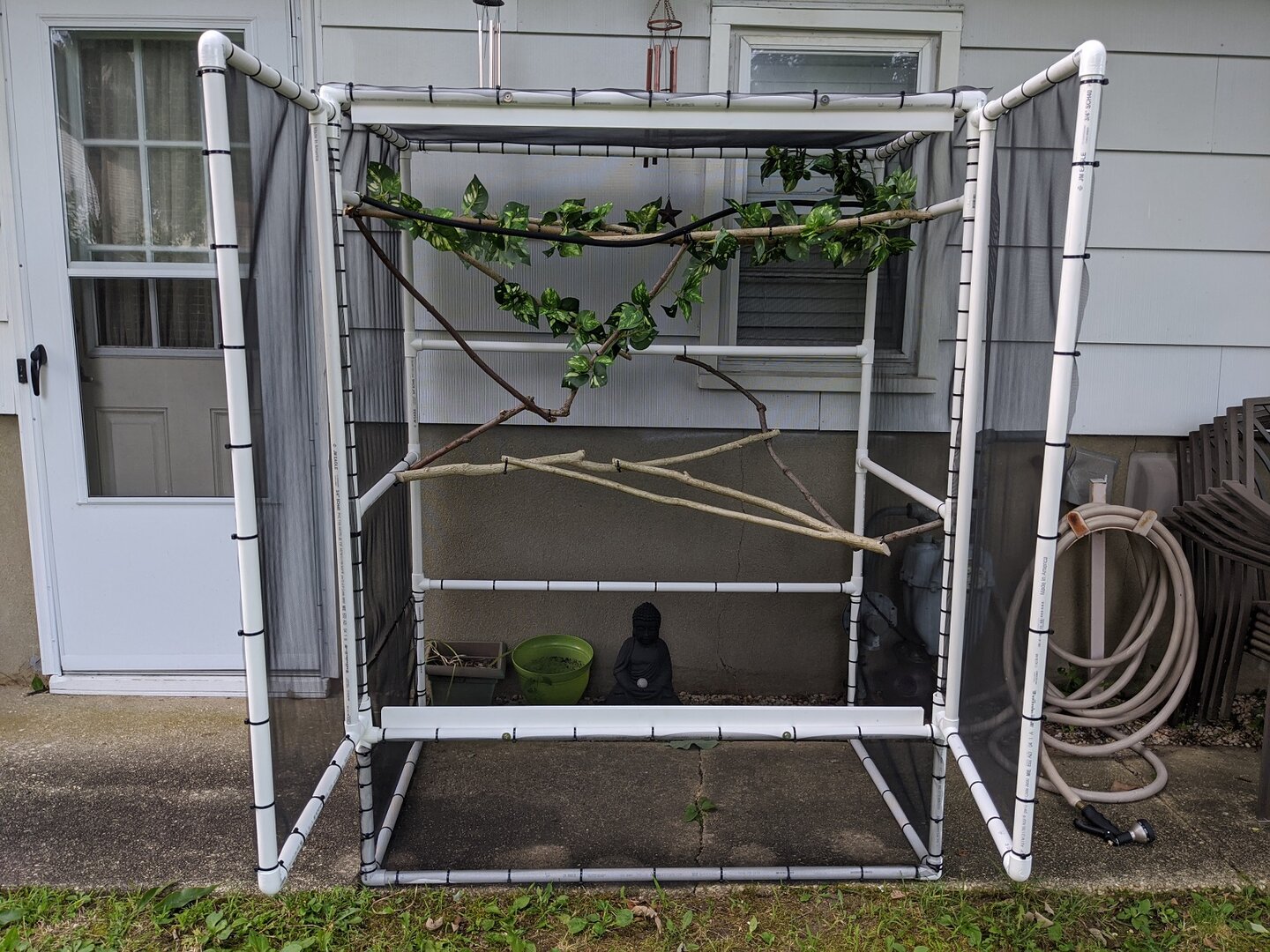

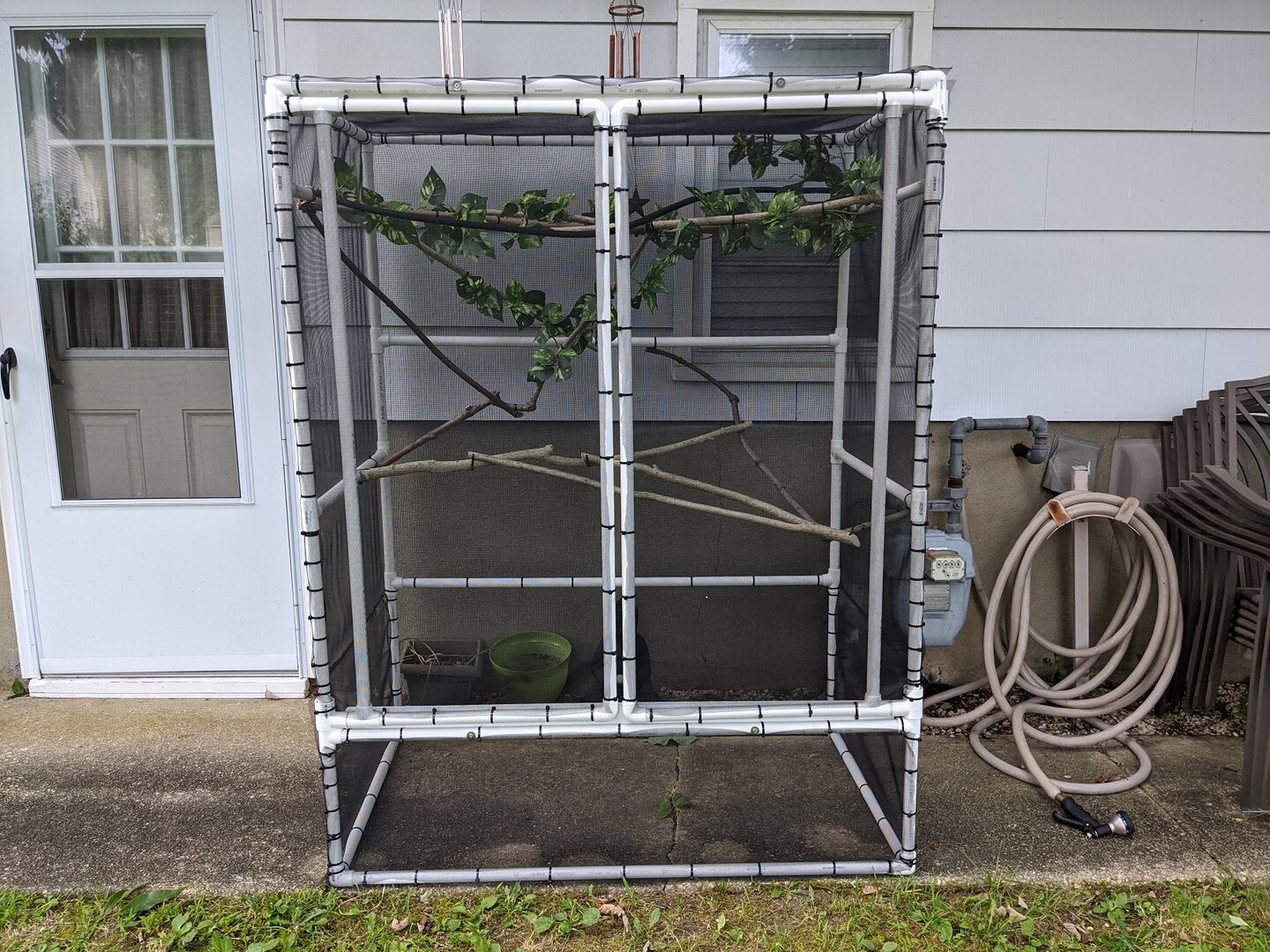

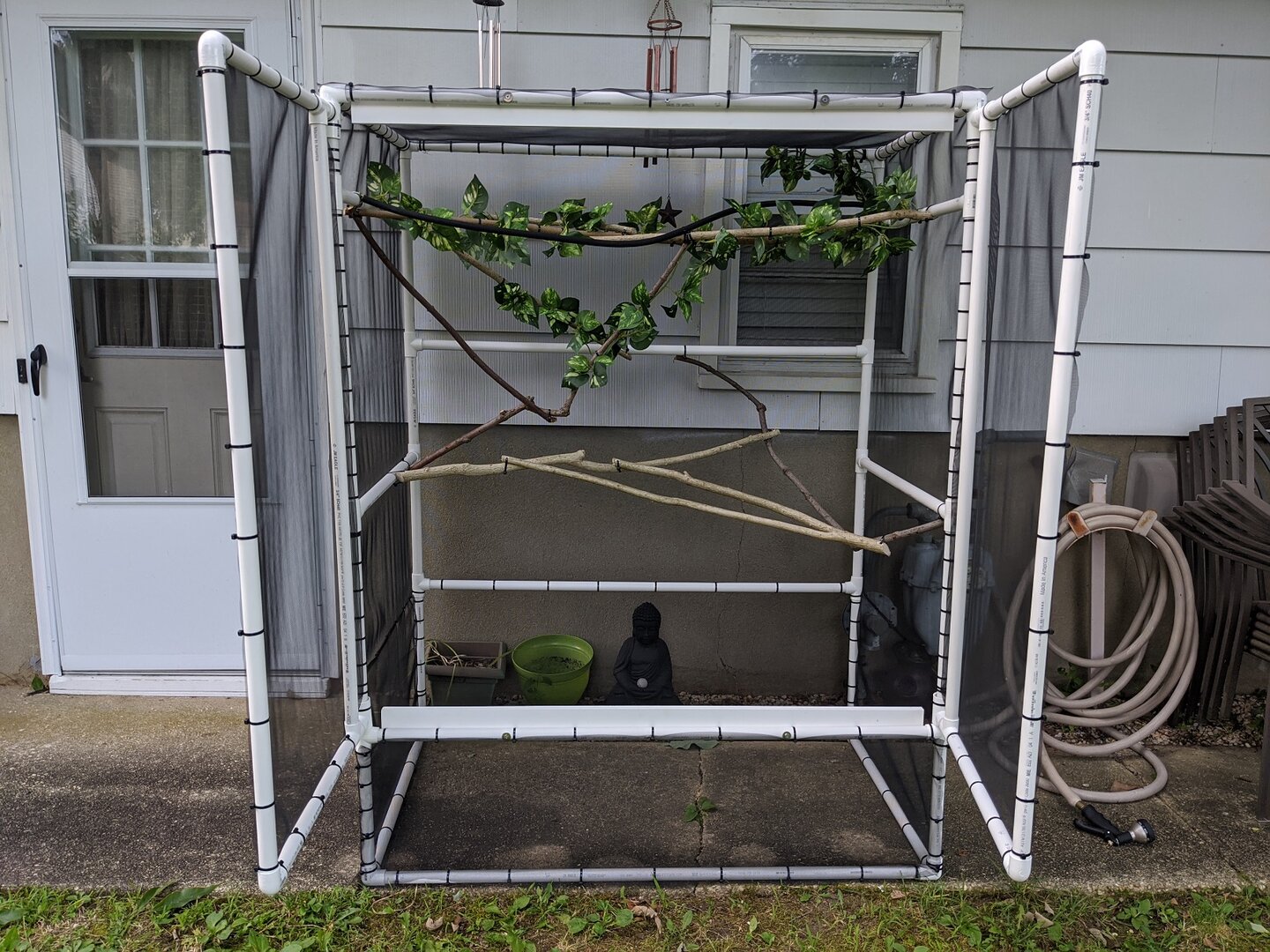

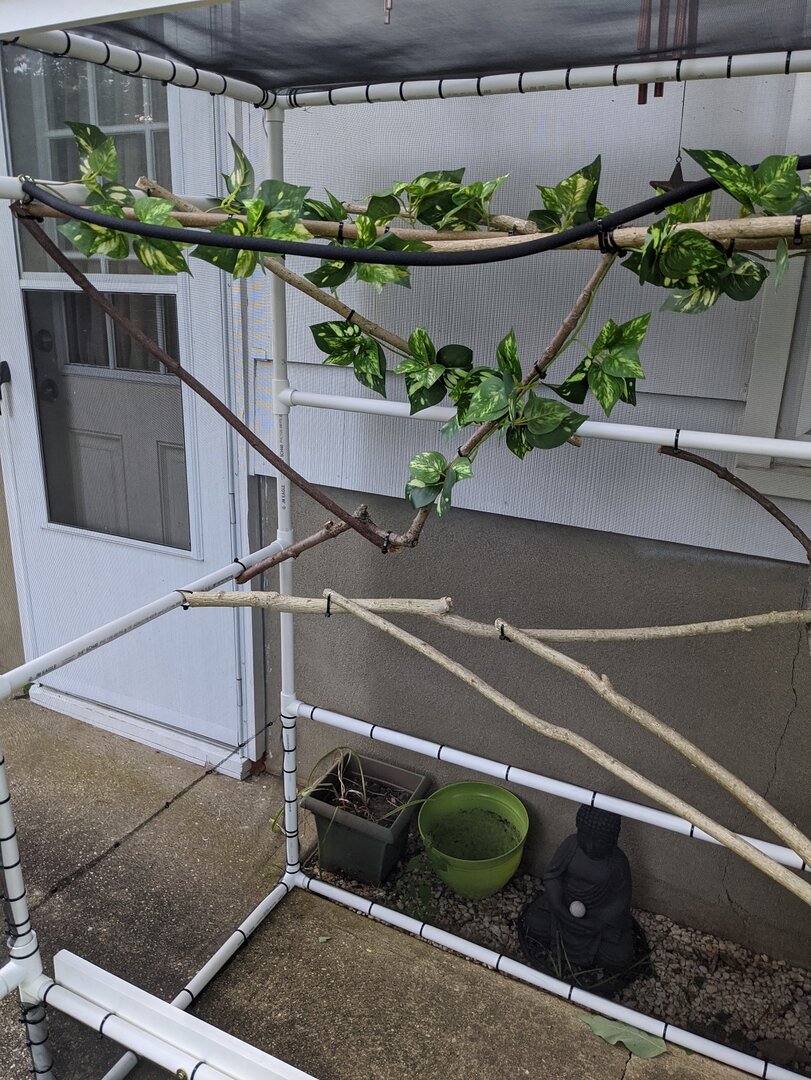

My original plan was to use poultry mesh because I liked the idea of letting more sunlight into the cage. But then realized that there are lightning bugs where I live which are poisonous, so I need something that keeps insects out. Also had concerns of his tongue hitting the poultry mesh and possibly getting injured. I decided to go with fiberglass window screen secured with zip ties. I am considering wrapping it around the back, from door to door, to avoid having to zip tie it at every corner, this way it will be easier to remove the screen if I want to break the cage down. I plan to do it this weekend but haven't settled on a plan yet. May also zip tie only the front and back panels and figure out some removable plan for the sides, possibly velcro, to allow easier break down.

Great work, looks awesome! Can’t wait to see the finished product.

I just used wood for my outdoor enclosure, but I can see a real benefit to using a more weather resistant material like pvc.
Thank you! Yeah, I am hoping to make this last, I am considering using it indoors for the winter being it's much larger than my ReptiBreeze XL. I have been itching for a cage wider/deeper than 24"/24".


Ramrod

Avid Member
My original plan was to use poultry mesh because I liked the idea of letting more sunlight into the cage. But then realized that there are lightning bugs where I live which are poisonous, so I need something that keeps insects out. Also had concerns of his tongue hitting the poultry mesh and possibly getting injured. I decided to go with fiberglass window screen secured with zip ties. I am considering wrapping it around the back, from door to door, to avoid having to zip tie it at every corner, this way it will be easier to remove the screen if I want to break the cage down. I plan to do it this weekend but haven't settled on a plan yet. May also zip tie only the front and back panels and figure out some removable plan for the sides, possibly velcro, to allow easier break down.


Thank you! Yeah, I am hoping to make this last, I am considering using it indoors for the winter being it's much larger than my ReptiBreeze XL. I have been itching for a cage wider/deeper than 24"/24".
Would like to see pictures of screening when completed and listen to any comments about attatchment you may have. I am currently using a portable roll around cage I built for outside time but going to build a larger more permanent enclosure outside.
