Mistking help

Bcloughen

Member

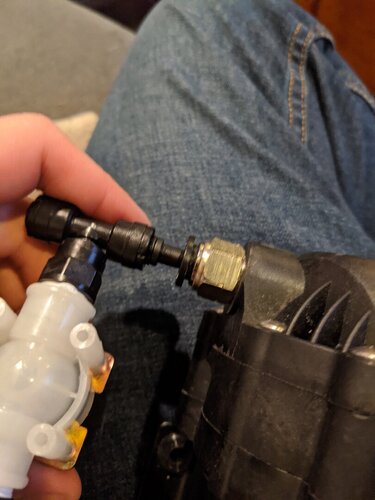

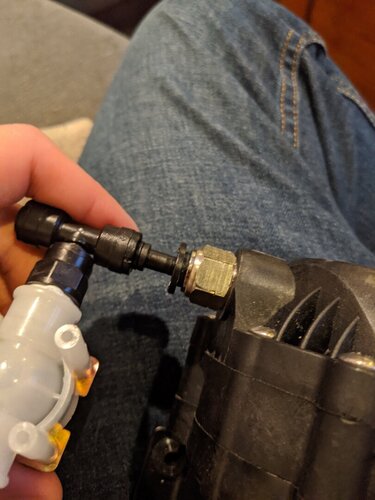

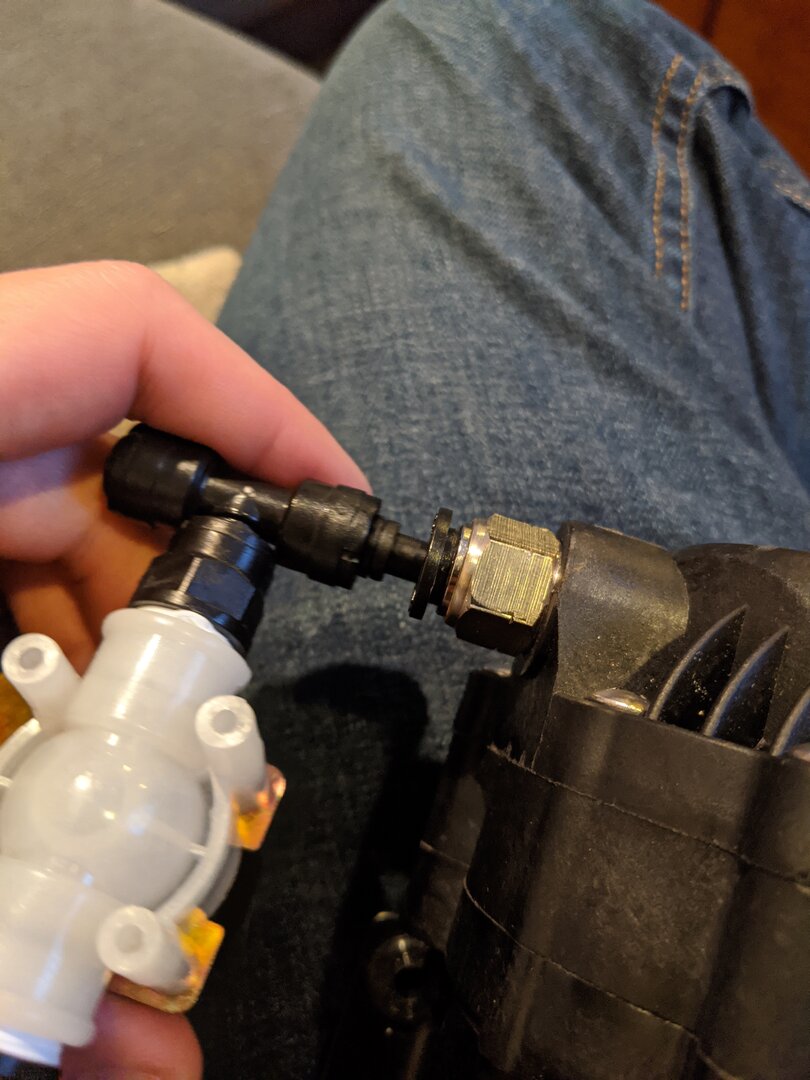

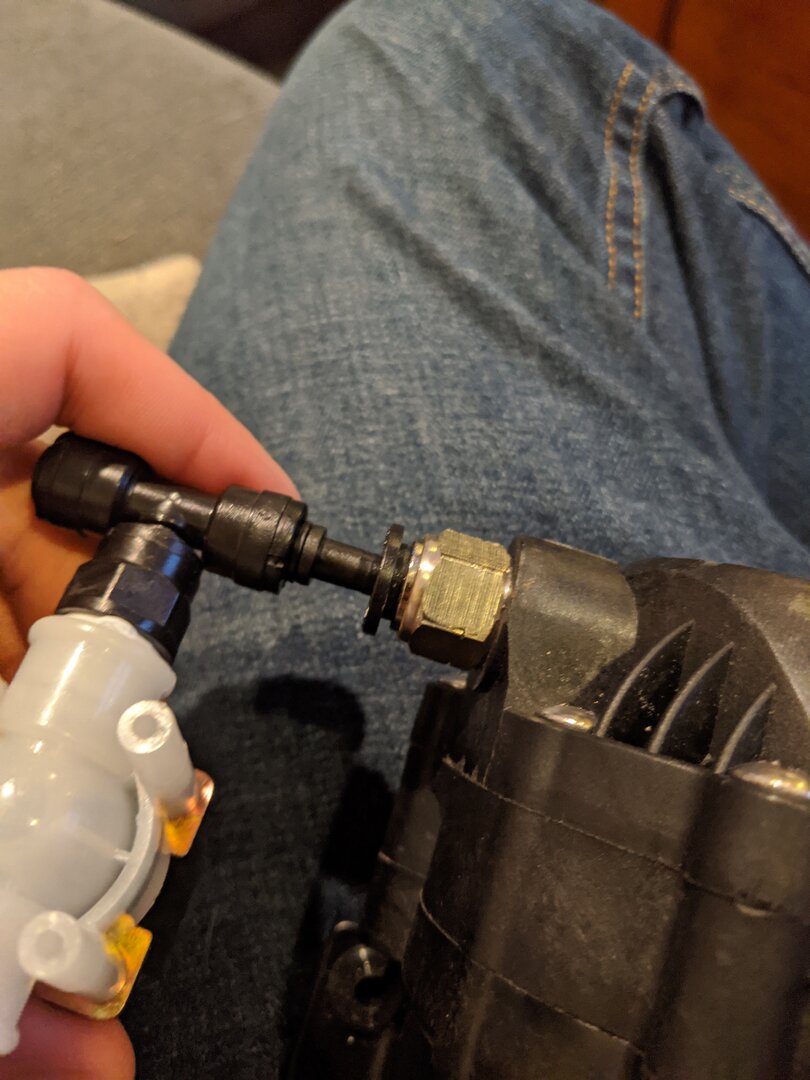

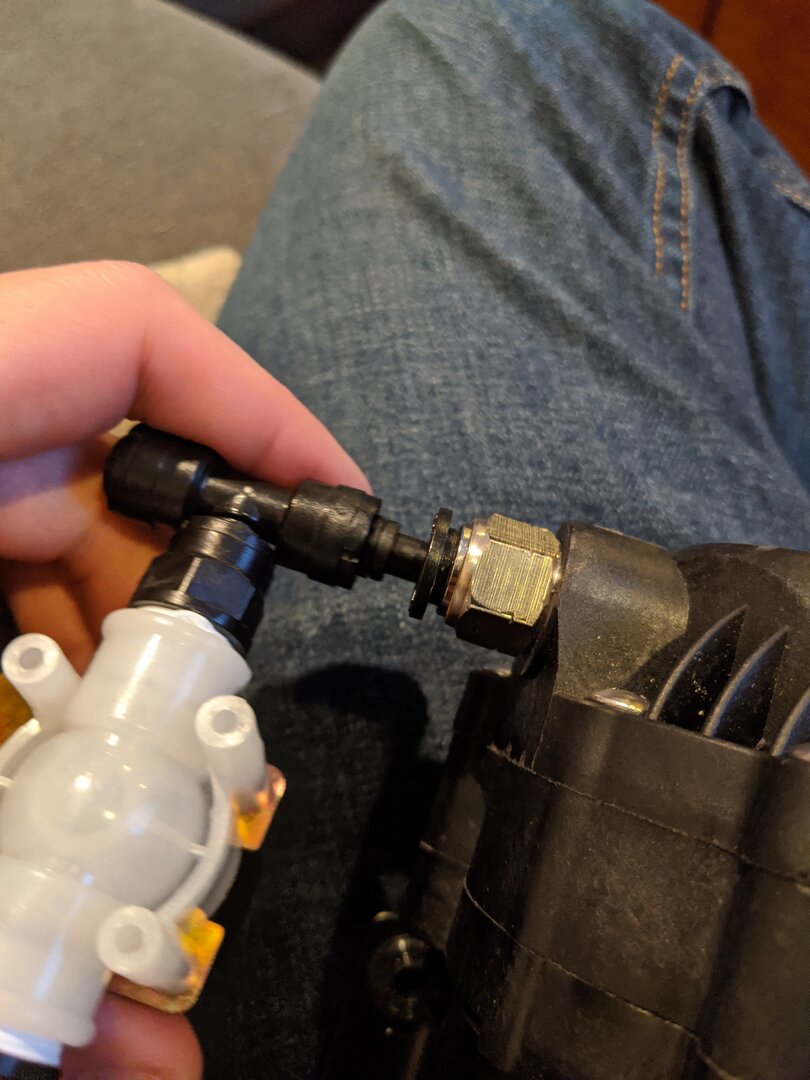

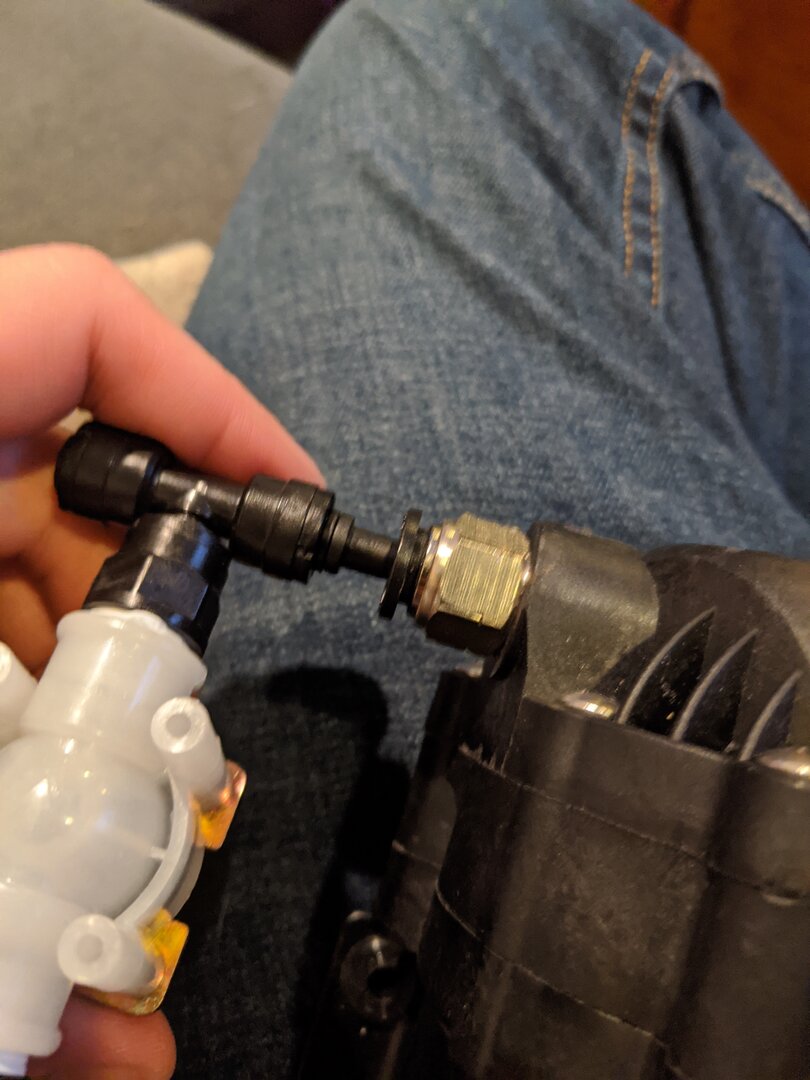

Alright, I'm thinking I might be crazy but my zipdrio on my ultimate mistking doesn't stay plugged into the pump. It just falls right out, what am I doing worng?


Attachments

  • IMG_20200110_230413.jpg
    121.6 KB · Views: 106
  • IMG_20200110_230412.jpg
    120.3 KB · Views: 118
  • IMG_20200110_230409.jpg
    109.9 KB · Views: 99
Just a heads up we figured out what the issue was The Mistking I bought off of Amazon was used the pump was for the advanced system when I bought the ultimate and the pump came outside of the manufacturer's warranty be warned when ordering from Amazon

I believe all you would need is a 3/8 to 1/4 converter then connect the 3/8 tubing to your pump then to the converter then the other end of the converter is 1/4 that can be plugged into your Zip drip using 1/4 tubing.

So wait, your got a MK advanced pump? The 3/8s? Send it back? This isn't a warranty issue anyway. The pump is 3/8s and your other parts are 1/4.

I believe all you would need is a 3/8 to 1/4 converter then connect the 3/8 tubing to your pump then to the converter then the other end of the converter is 1/4 that can be plugged into your Zip drip using 1/4 tubing.

Does not work that way. The advanced pump requires 3/8 backbone. If you try to downconvert it like that, you will bust the fitting and damage the pump. The pressure will be too high.

When you use an advanced pump, you have to have 3/8inch backbone, you reduce on the exhausts of the backbone, so there is a line that's 3/8s, and then it downconverts, with Ts to the Nozzles.

The advanced pump will also have too much pressure with only 1 or 2 nozzles. That downconvert in small lenghts to the Nozzle only works, because there is so many, your not supposed to use the advanced with less than 10 nozzles.
