Habitat Build

crosscutts

Avid Member

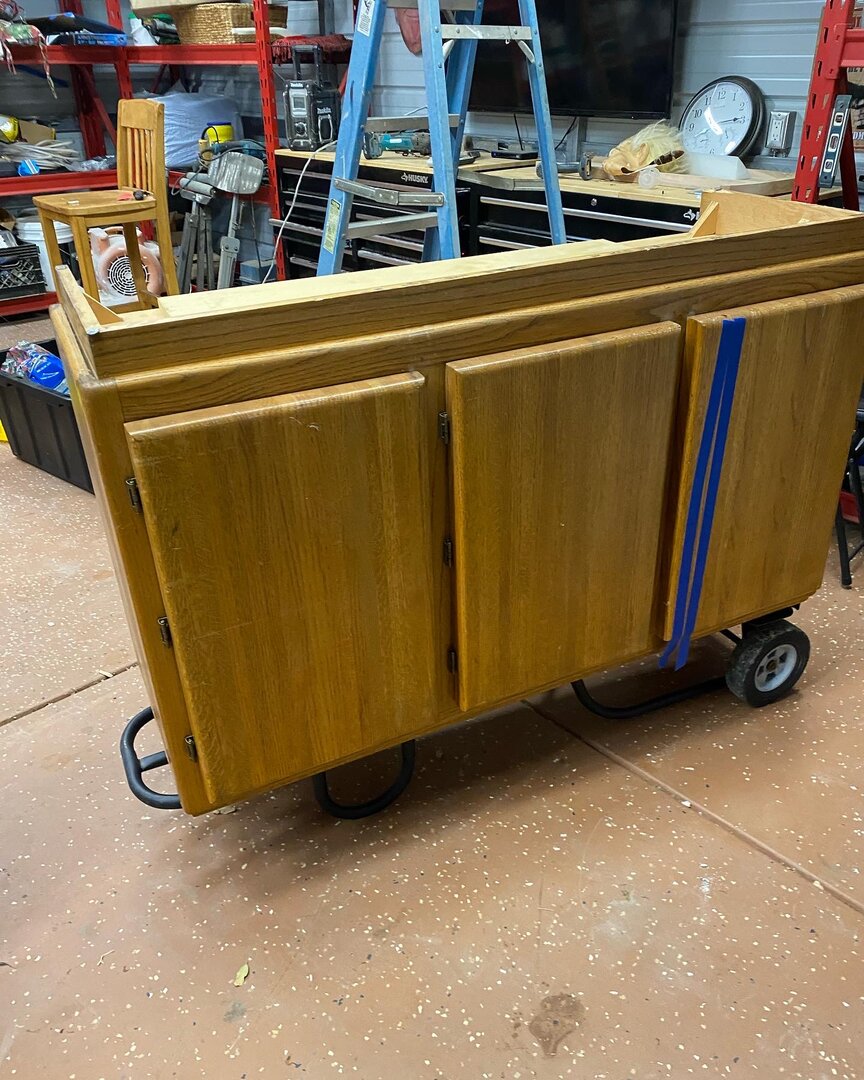

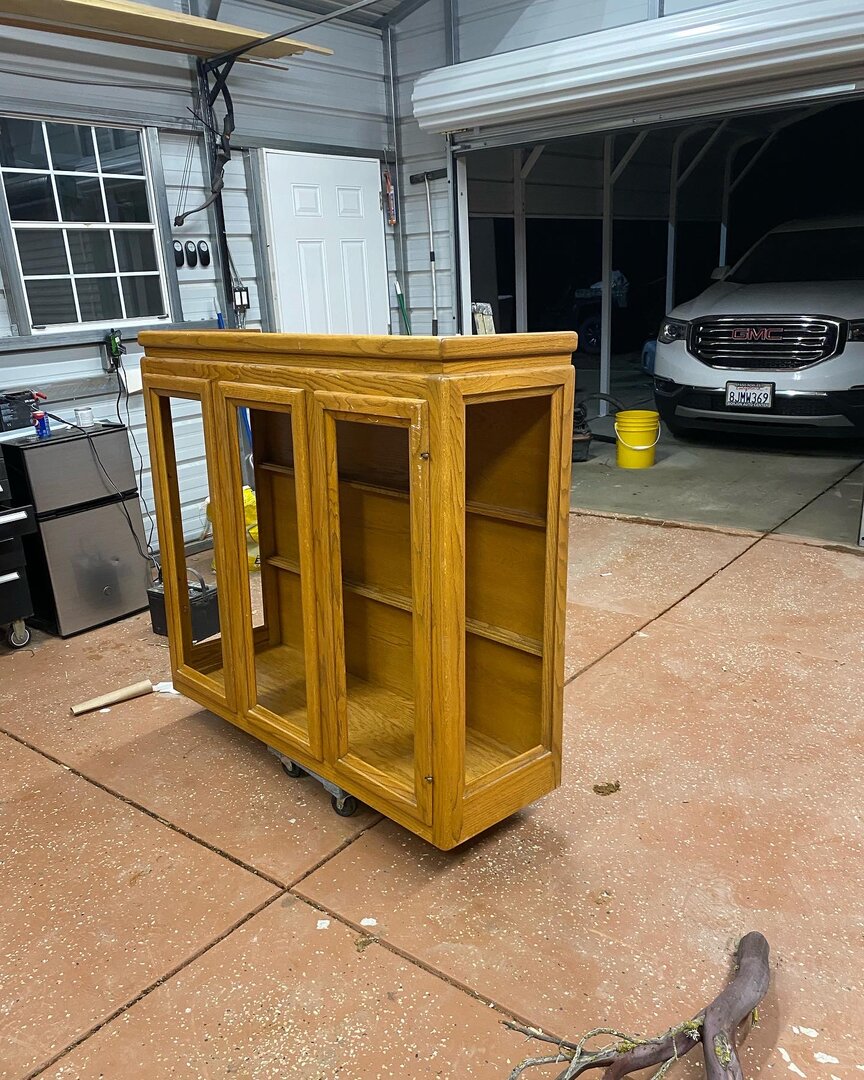

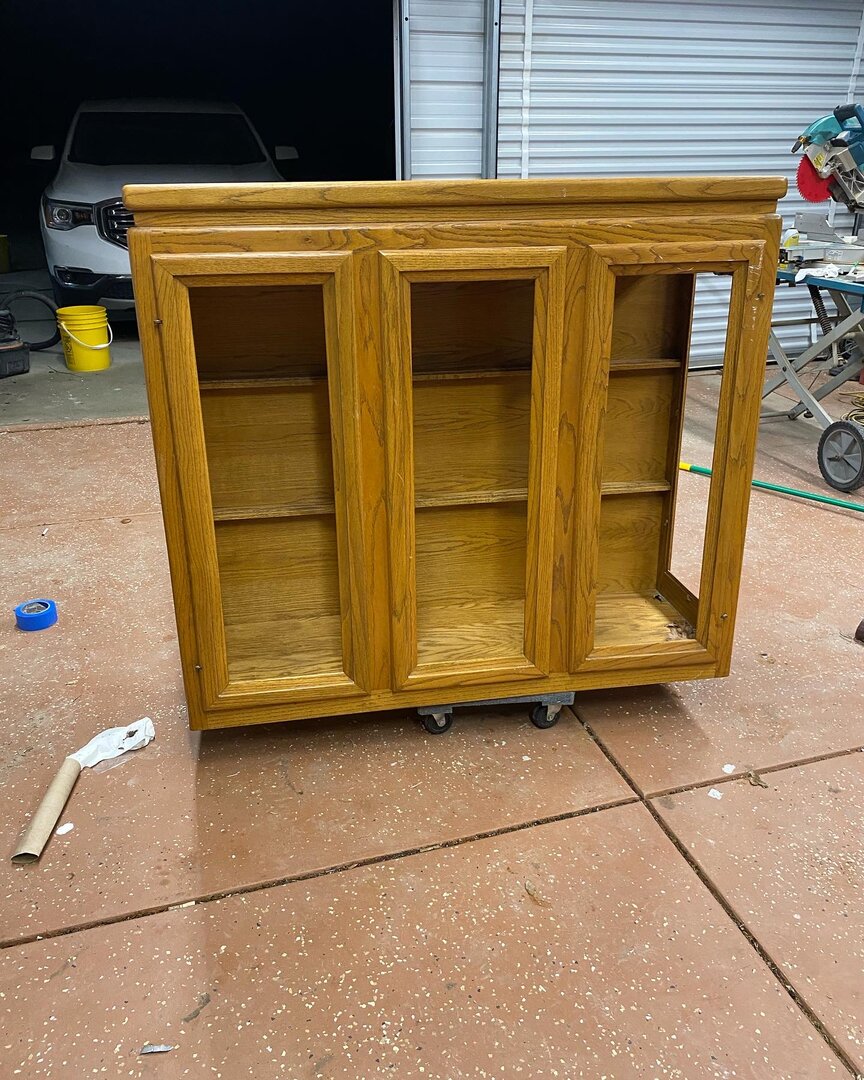

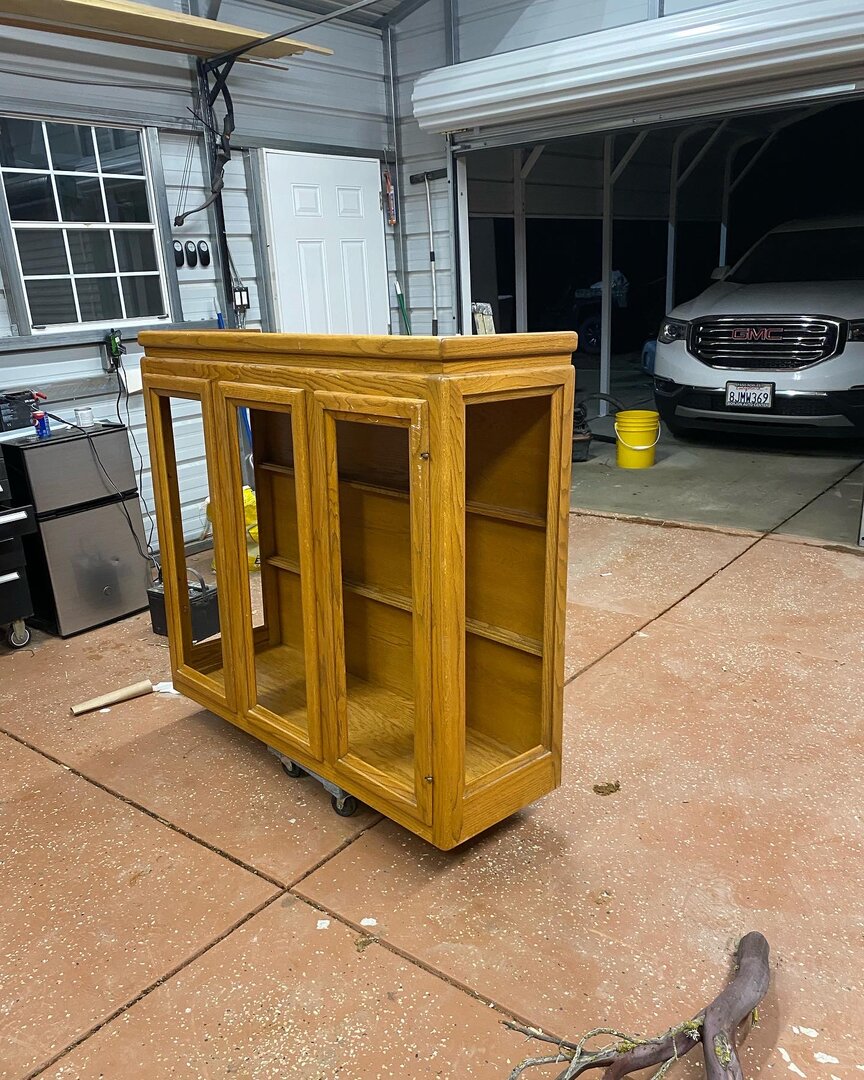

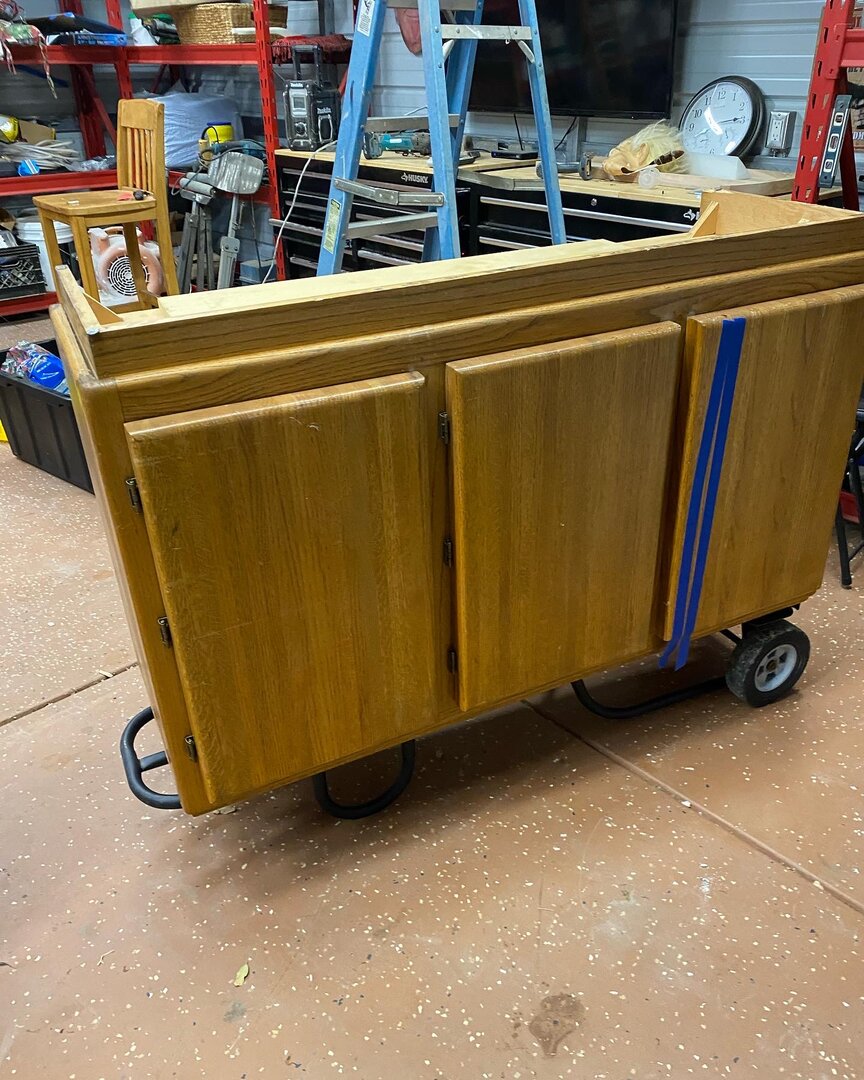

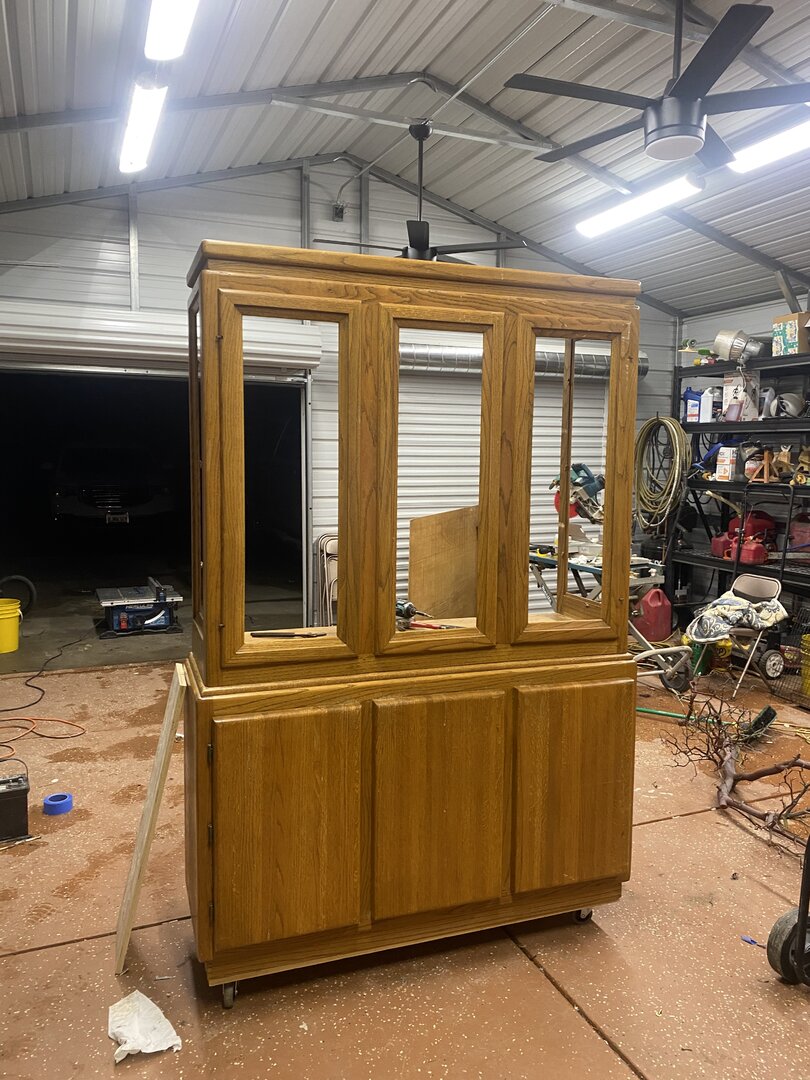

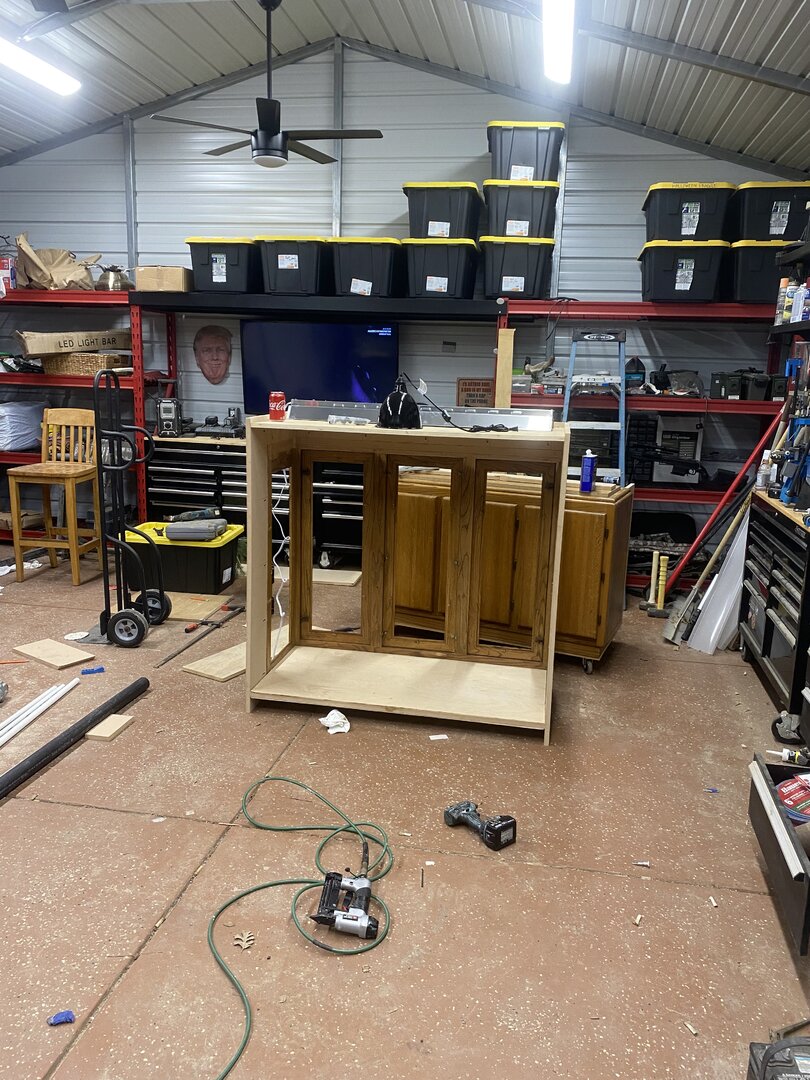

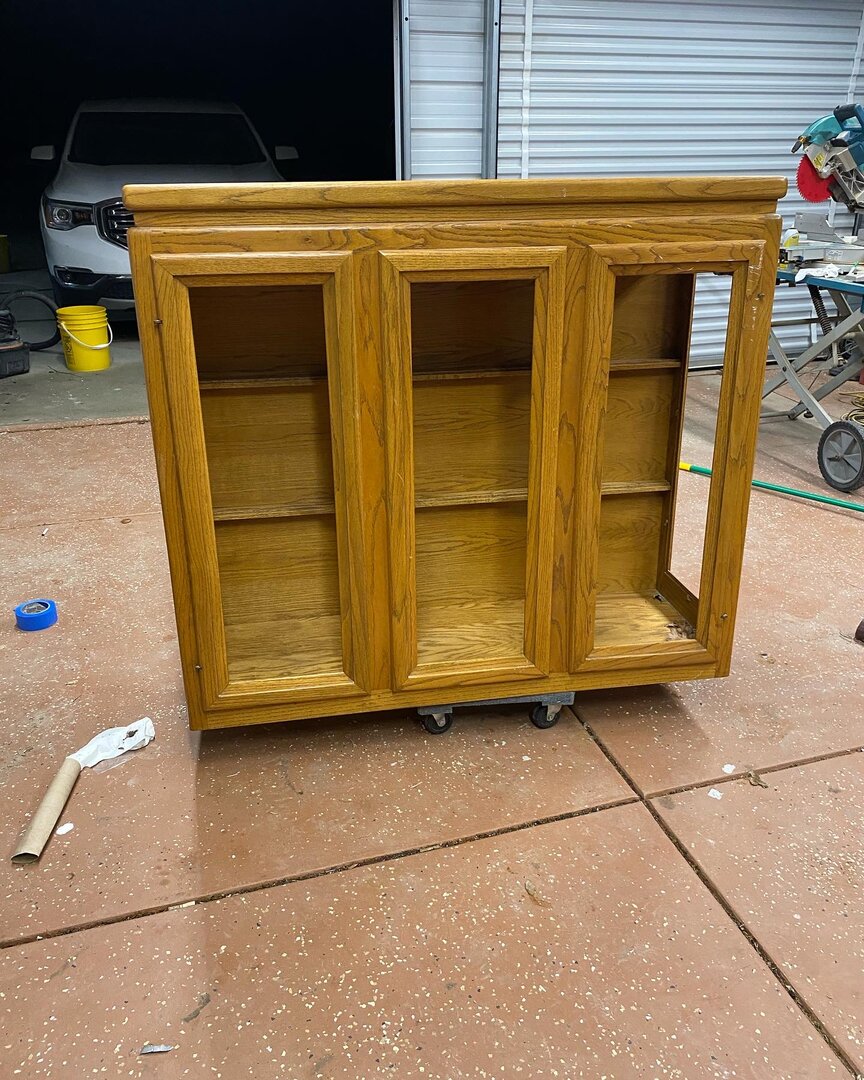

Well after my first build and not being involved for a while , i’m realizing that the habitat is a bit too small for a full grown panther it’s a perfect size for him now but he’ll soon grow out of it. So I decided to purchase another cabinet $40 on craigslist, and now I’m going to converted into a habitat . Thought I’d bring you all along for the ride .


Attachments

  • F141A5A0-C0B0-43FF-B65A-C351C139C765.jpeg
    211.9 KB · Views: 36
  • CFD3AA83-73B8-4E98-B4B8-5D53FF364AAC.jpeg
    234.6 KB · Views: 35
  • 1E22E2E3-A055-4A16-894A-017EF1C8CE55.jpeg
    195.4 KB · Views: 42
  • 0821C91C-0C96-4AF6-B518-54191FACBD36.jpeg
    242.6 KB · Views: 39

crosscutts

Avid Member

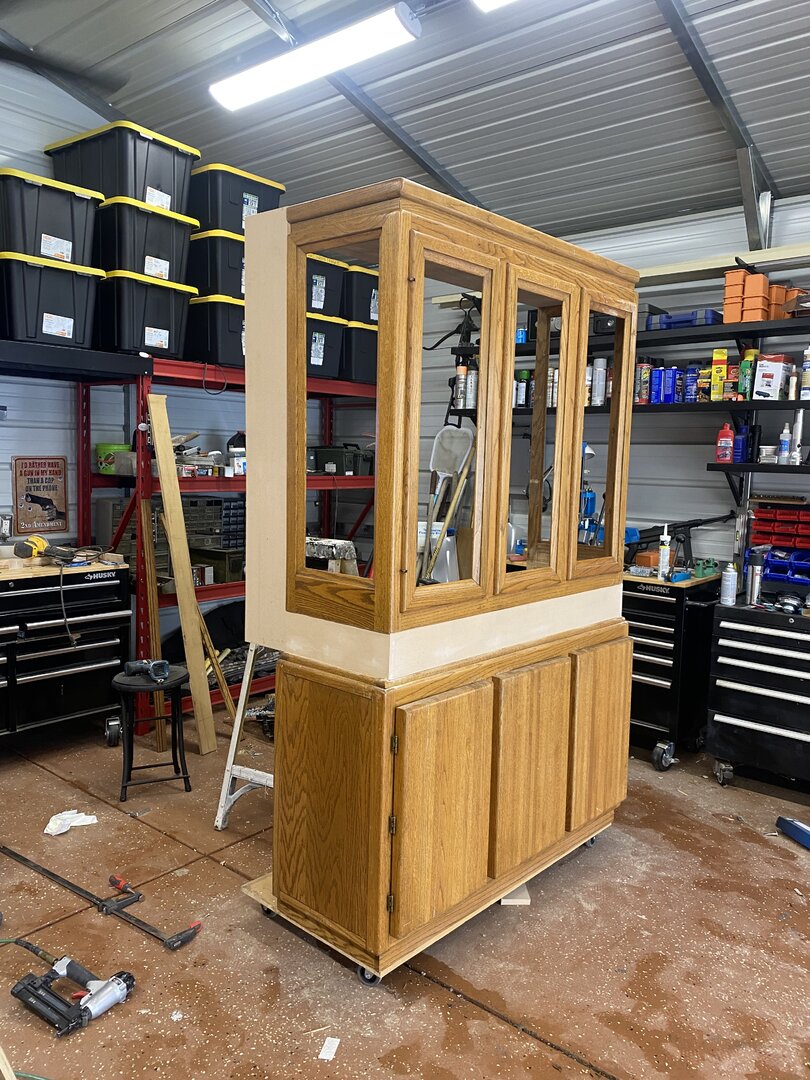

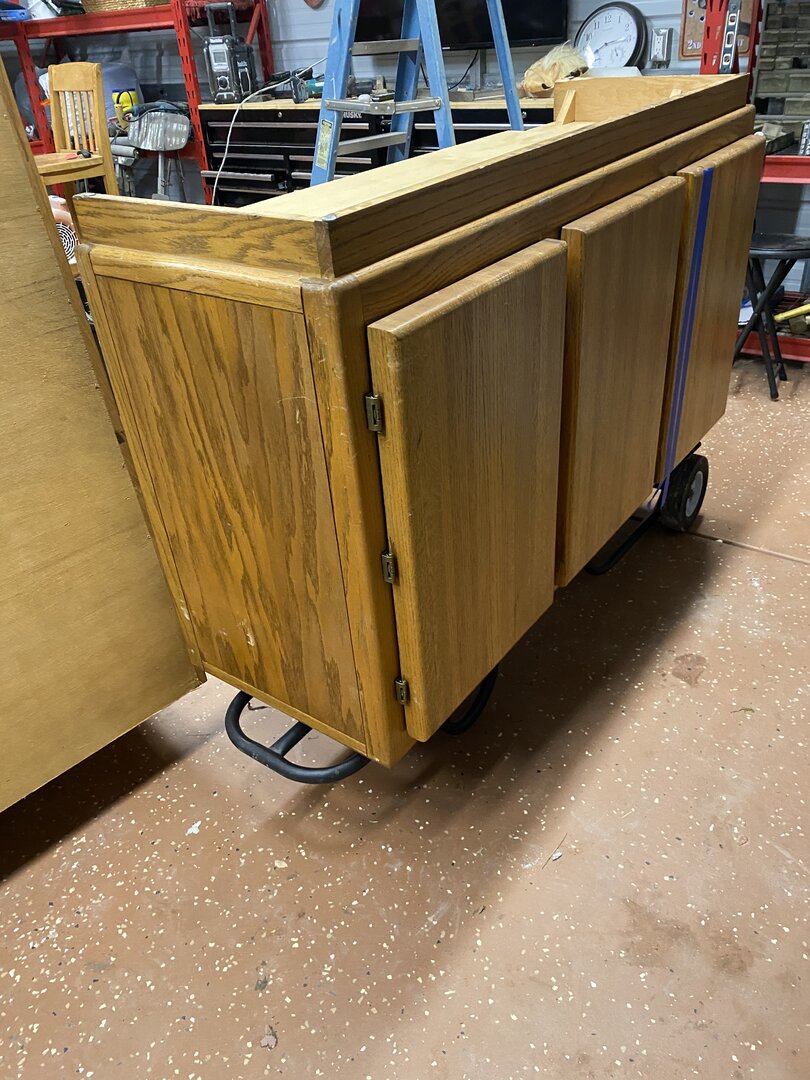

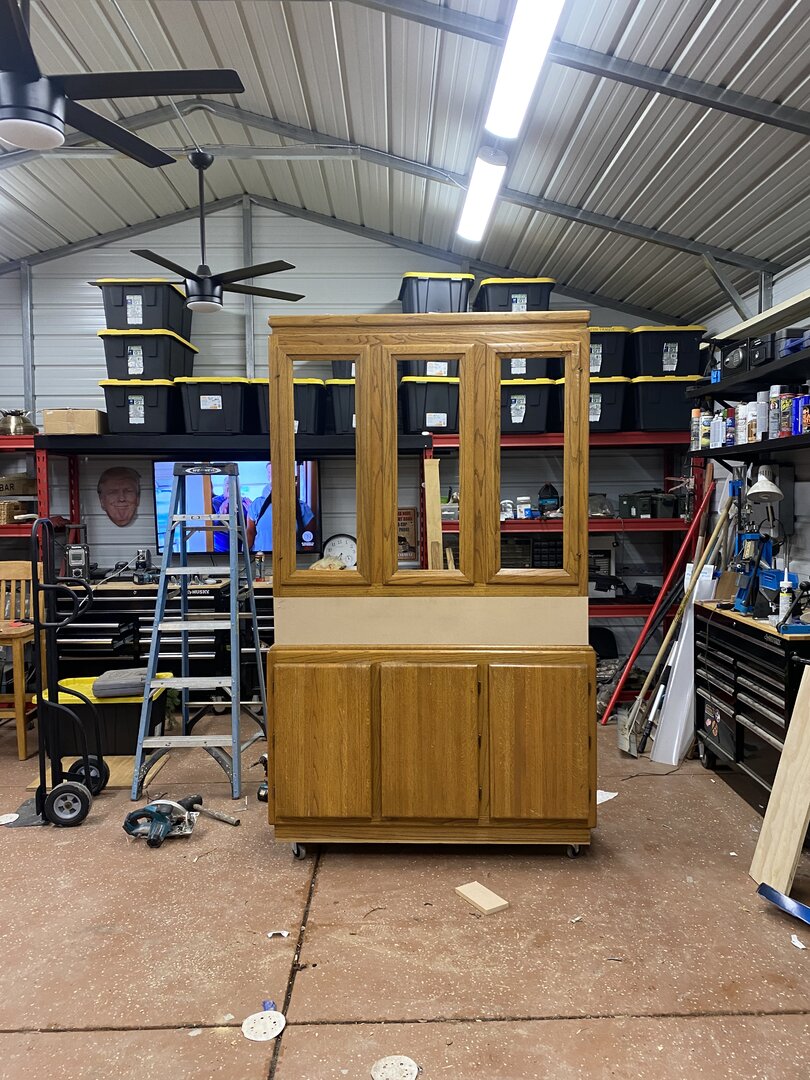

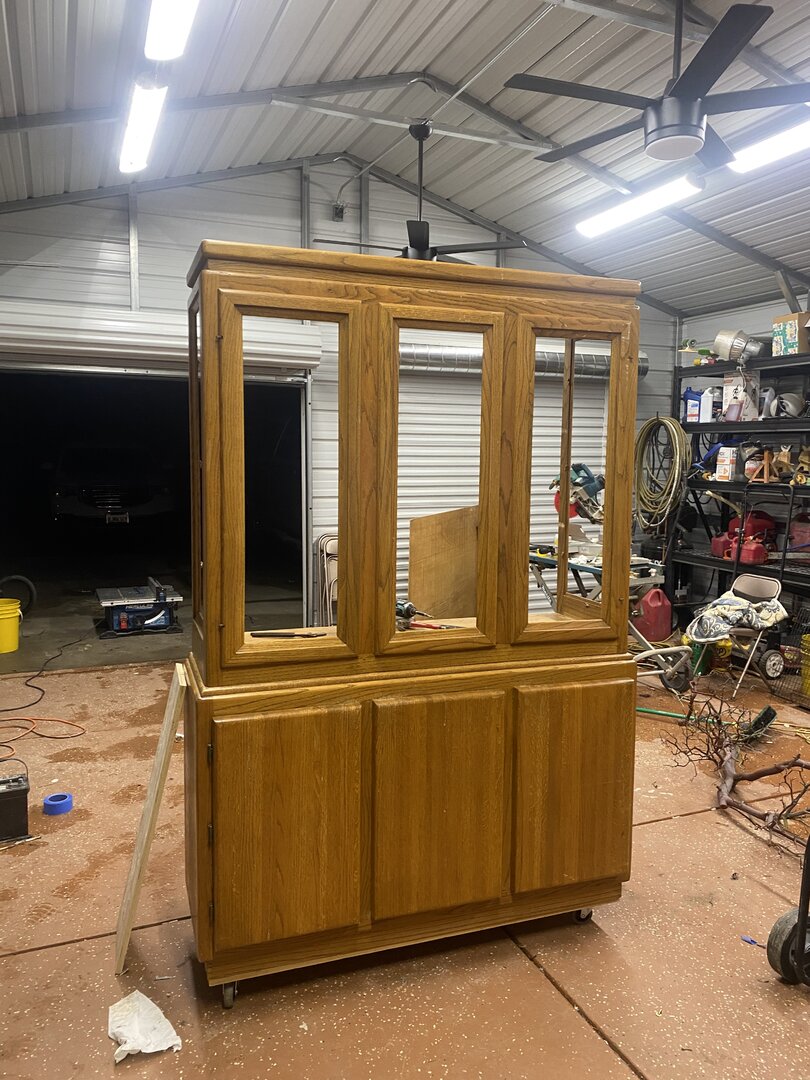

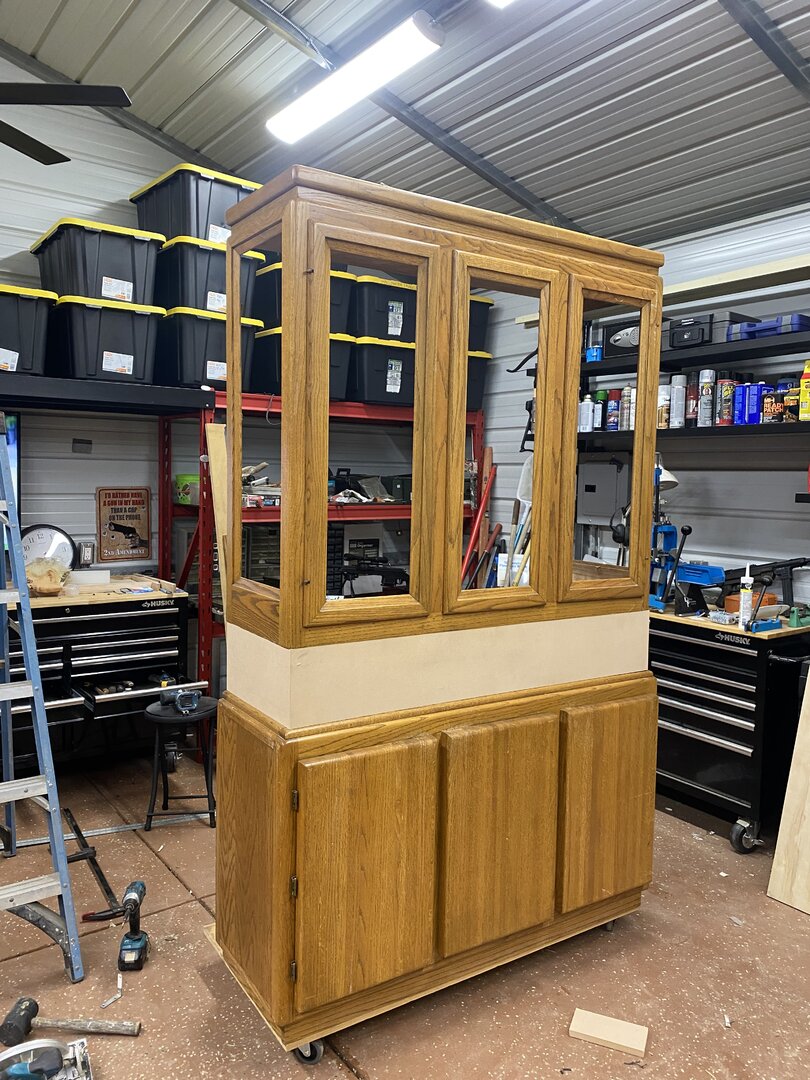

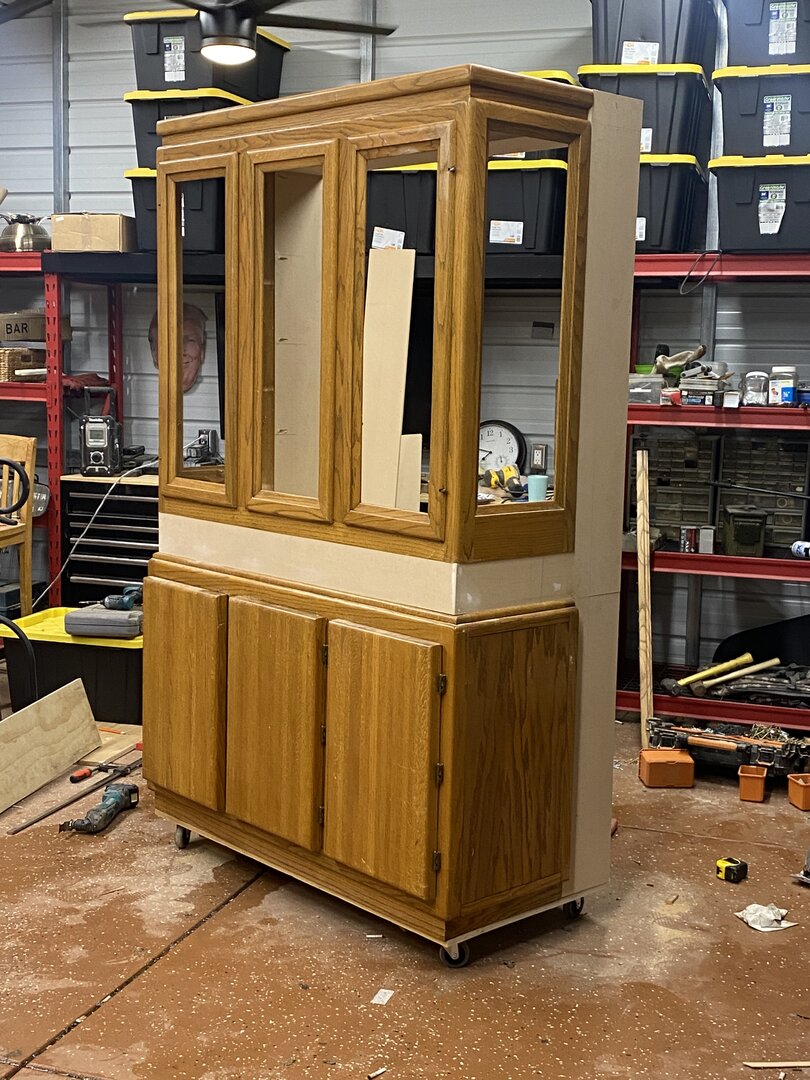

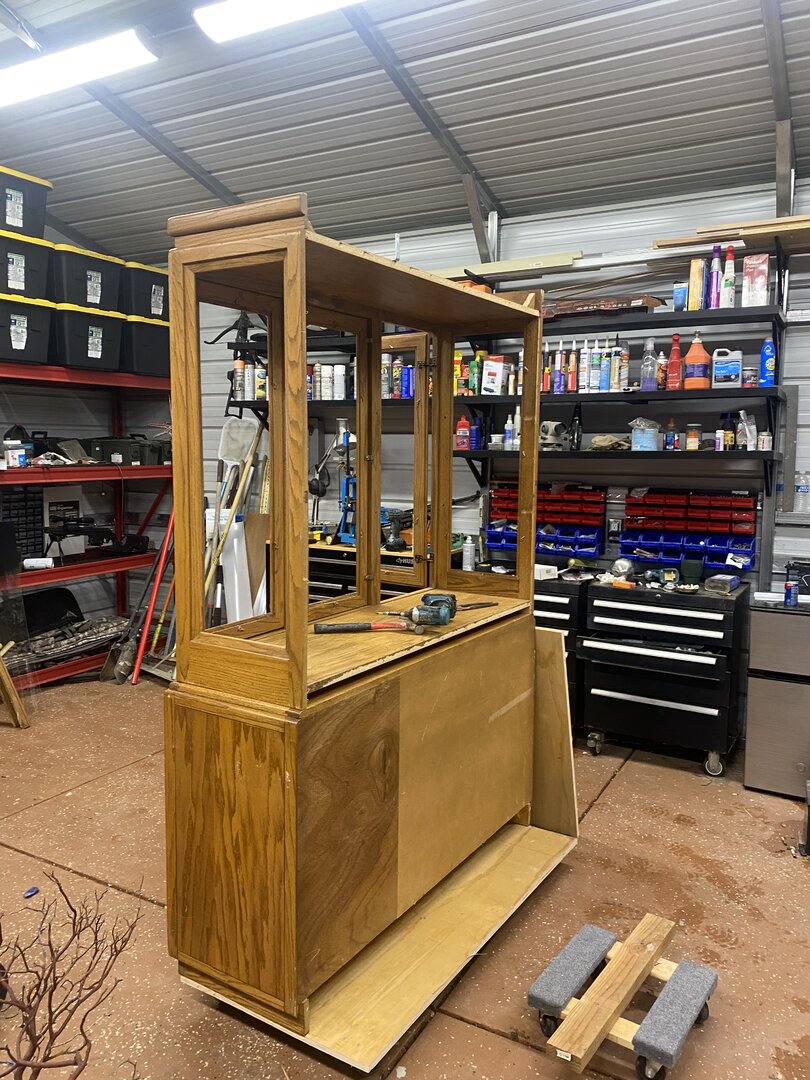

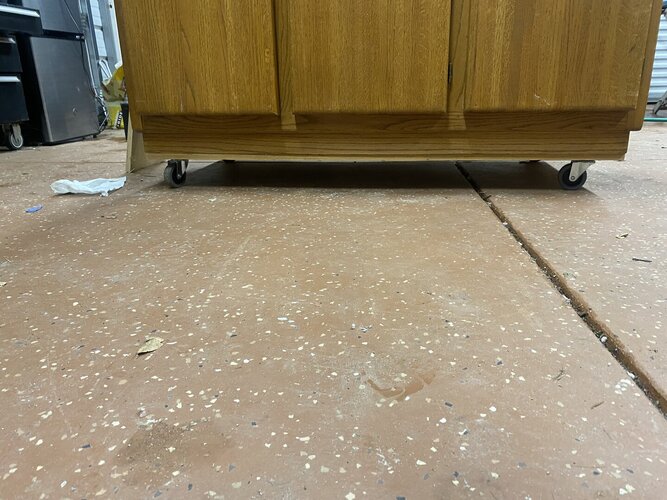

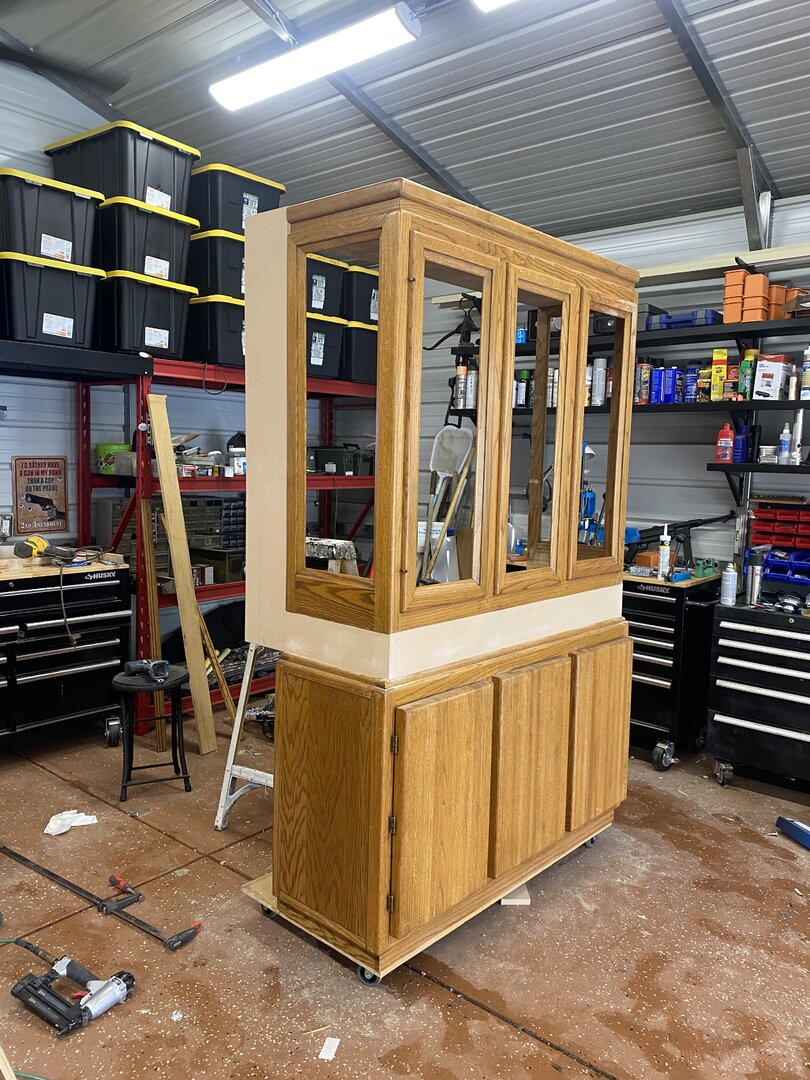

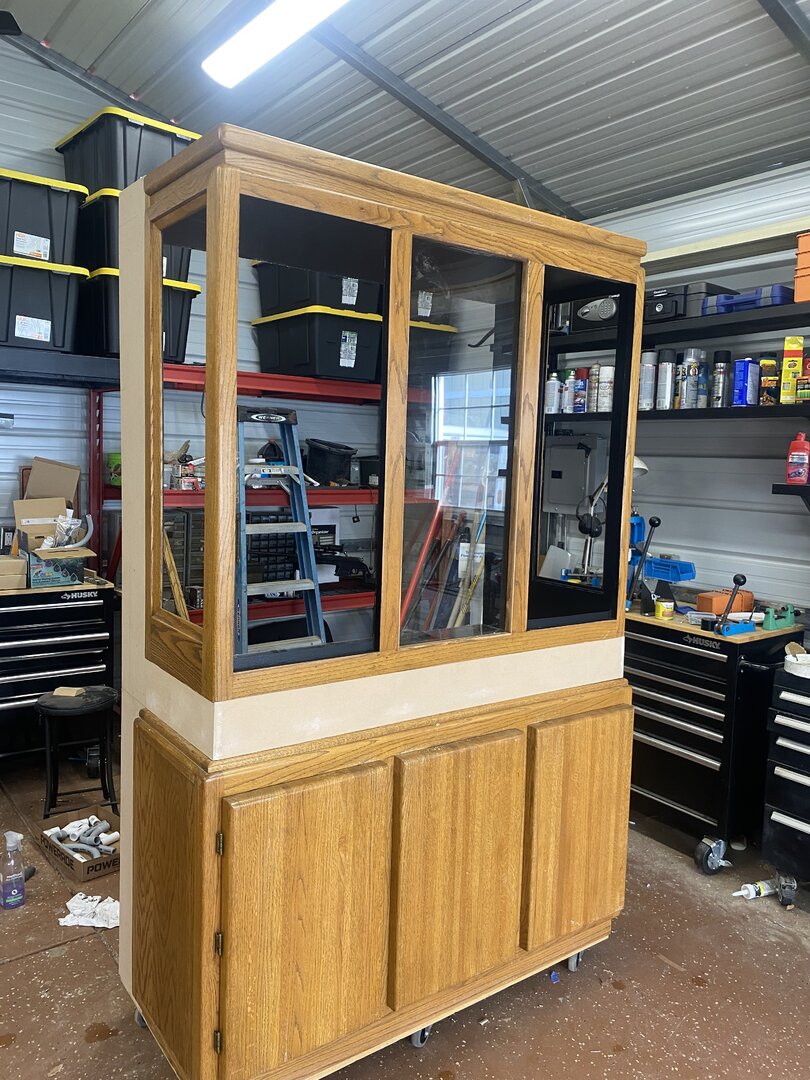

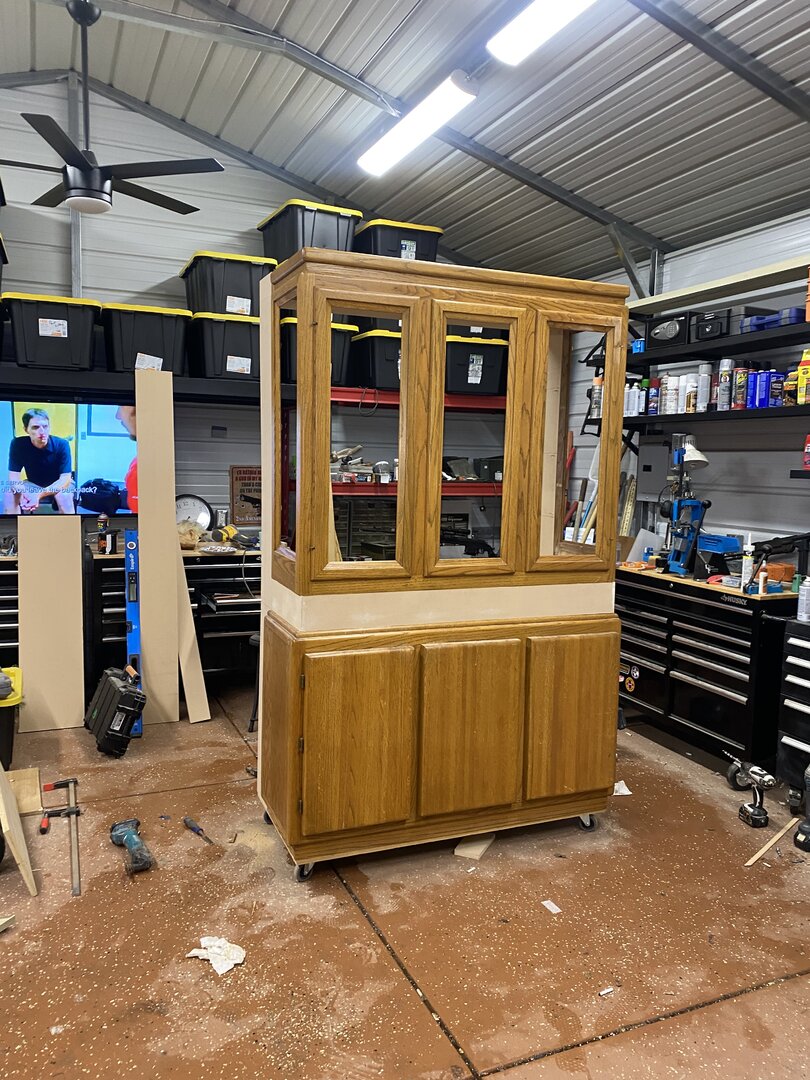

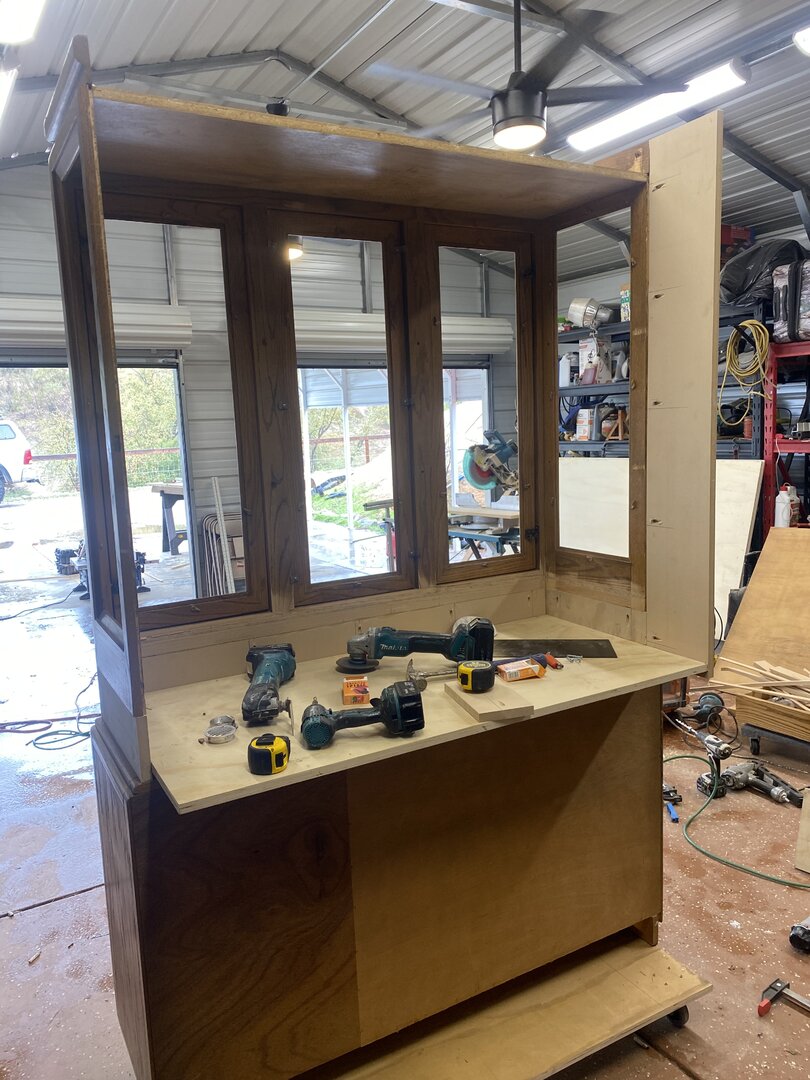

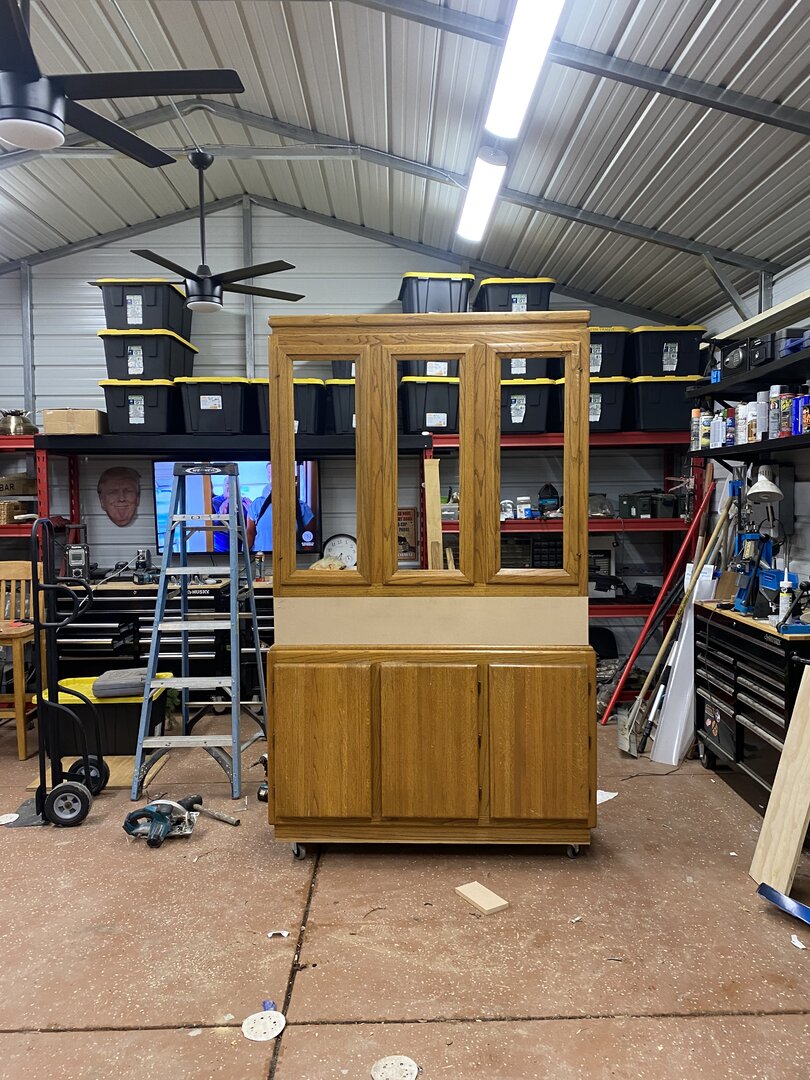

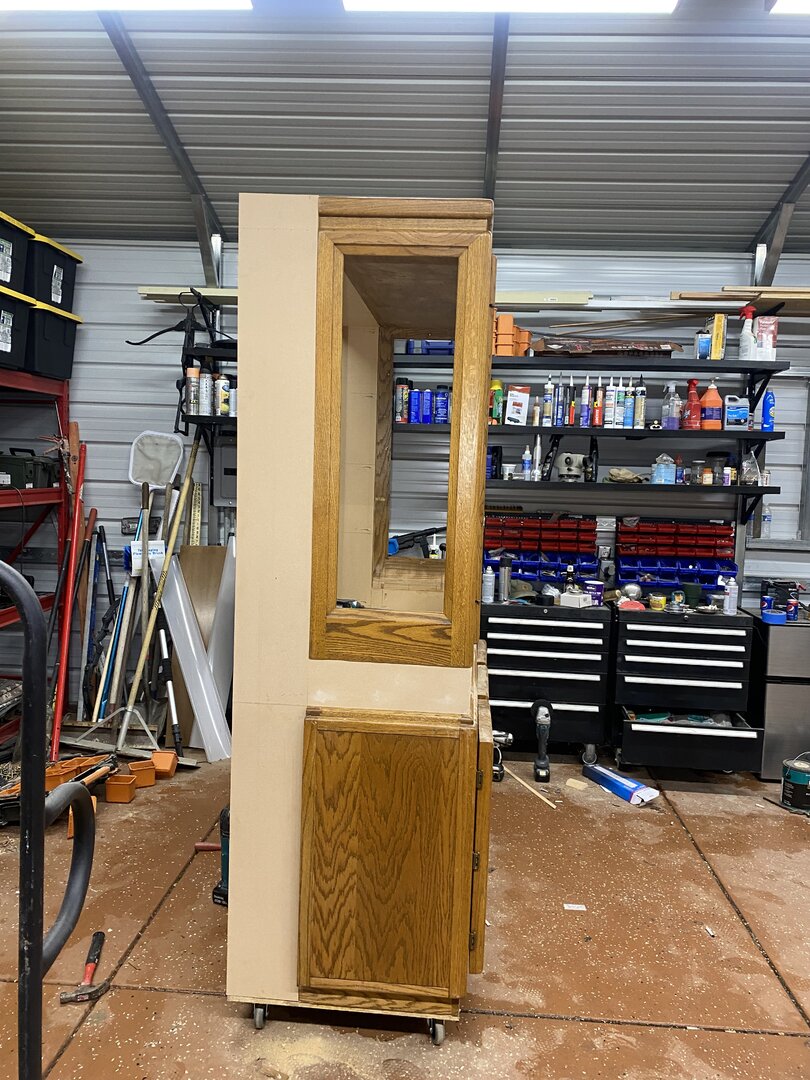

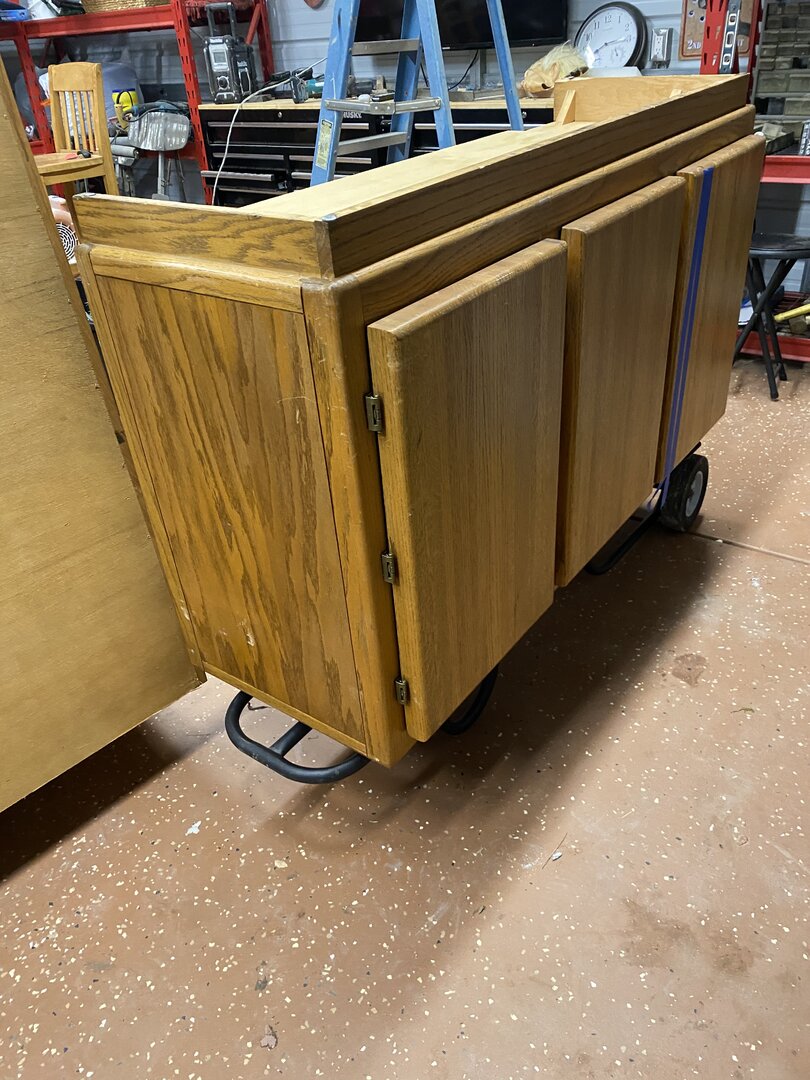

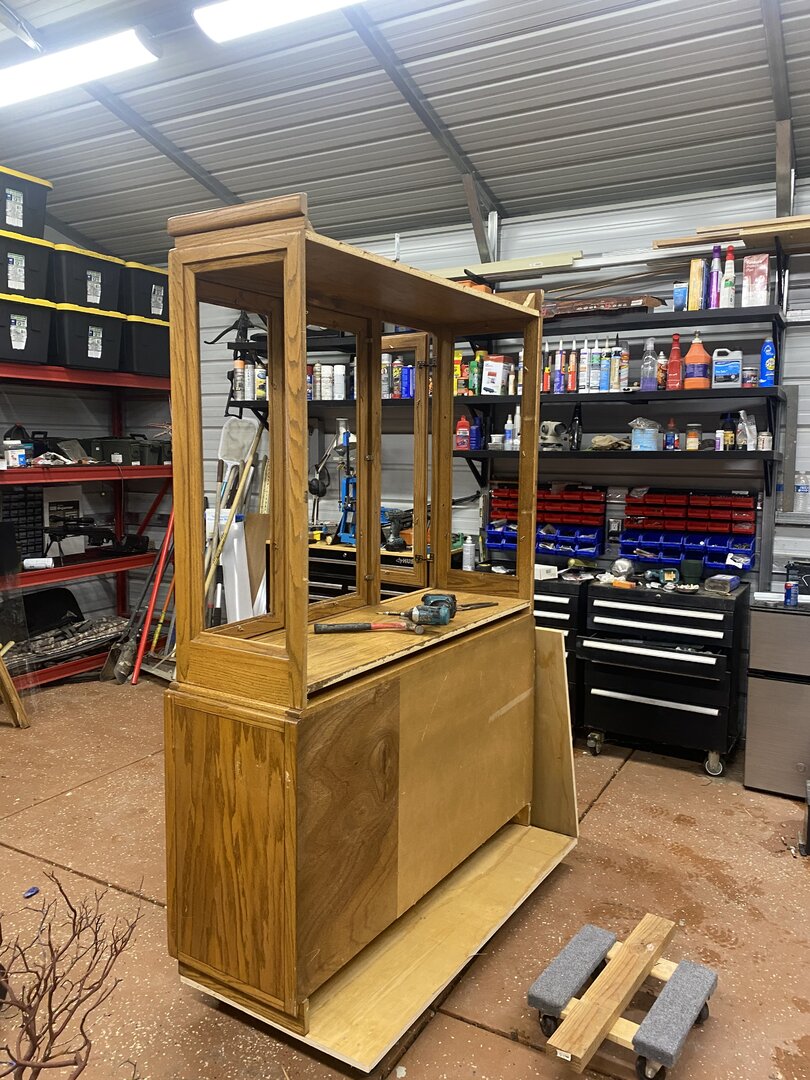

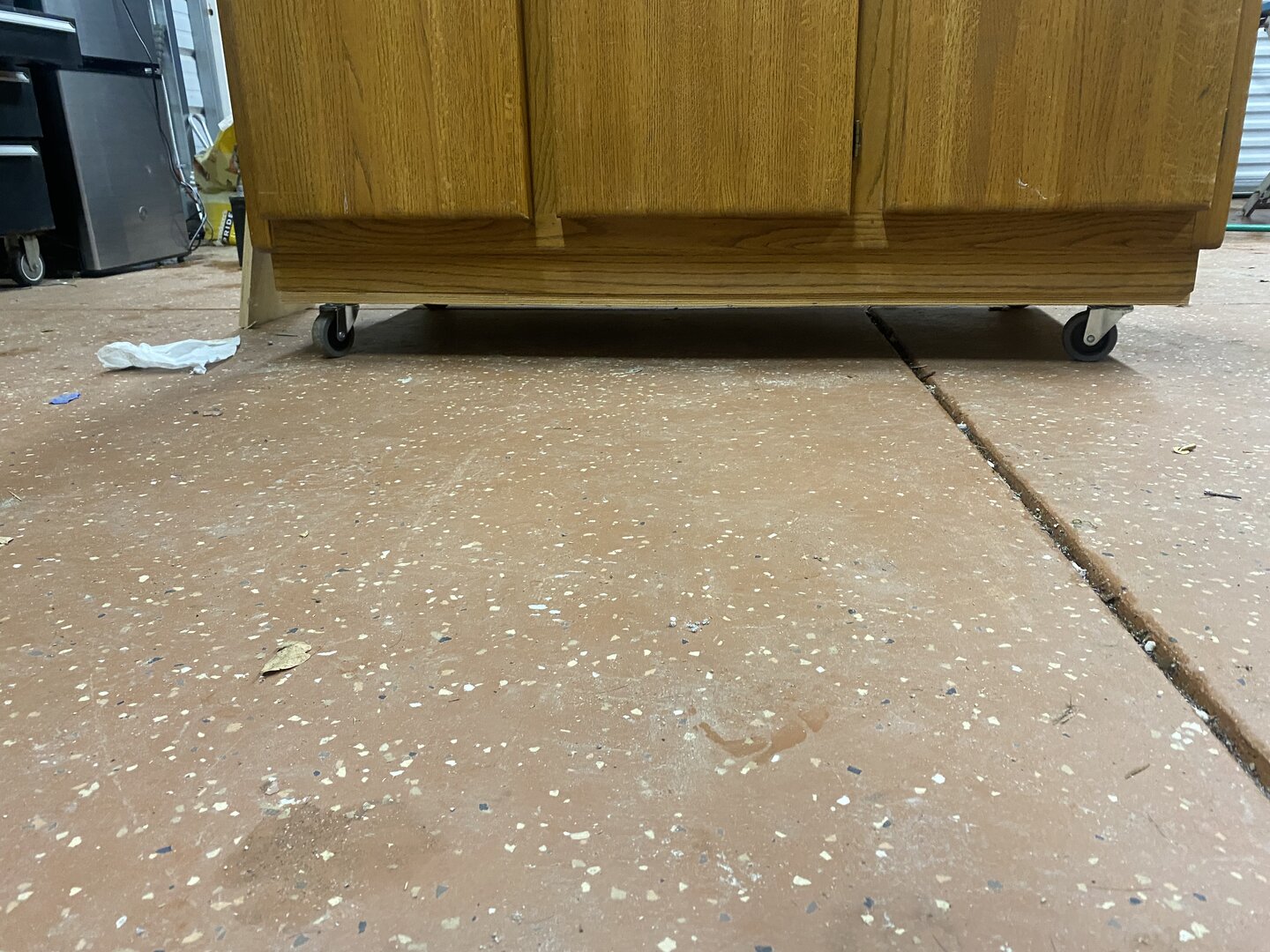

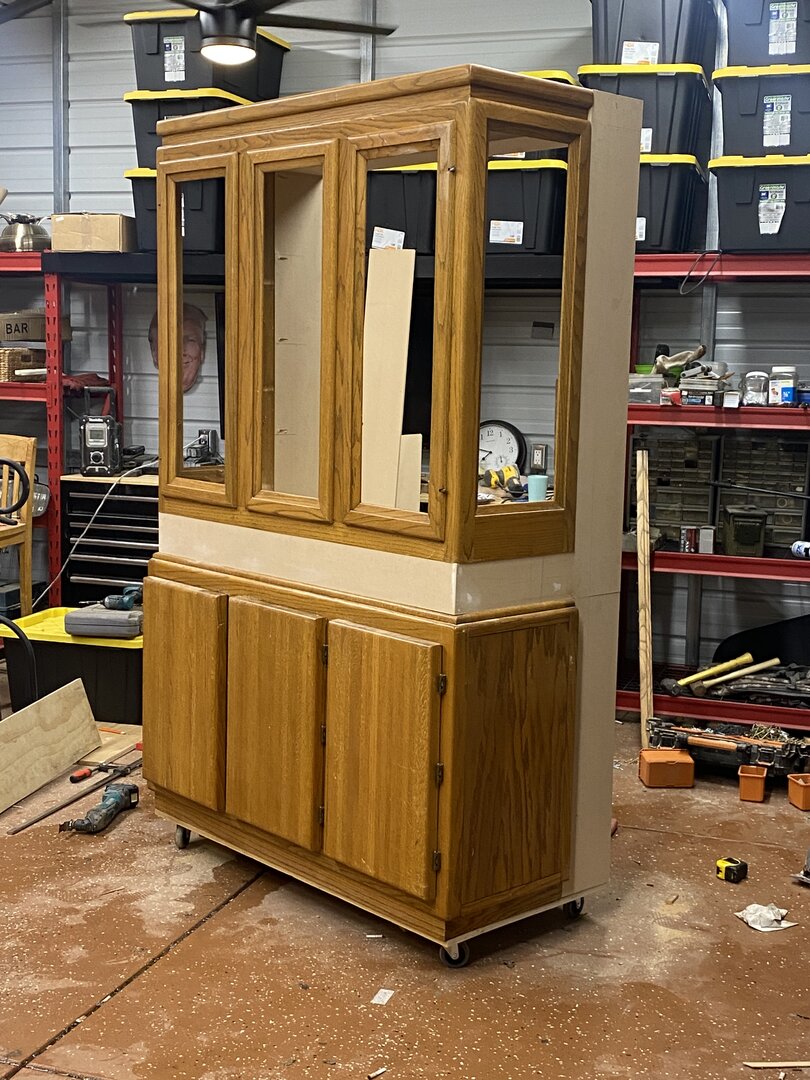

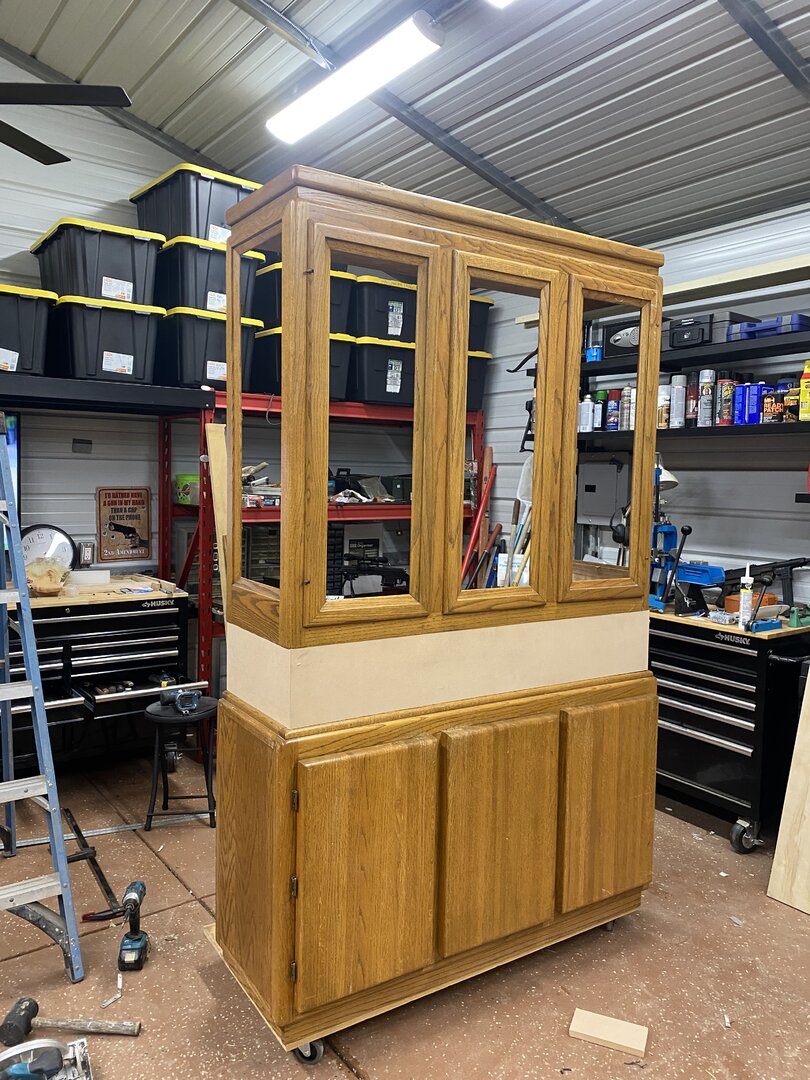

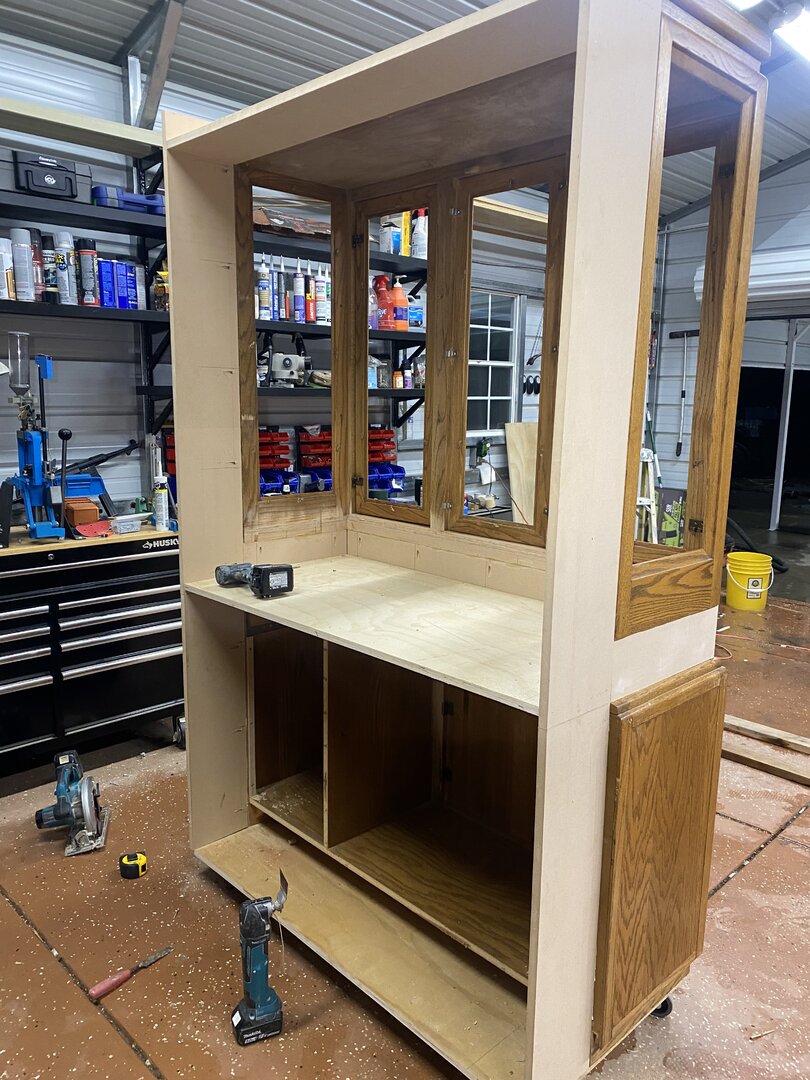

So to make this cabinet The size recommended 4‘ x 2‘ x 4’ i’ve had to modify the bottom and the back adding another 8 inches to the back and 5 inches to the Bottom . I also added wheels so it’ll be easy to move around once loaded I will be adding substrate to the floor with a drainage system .since the tank so large , i’m gonna upgrade to a mistking and a four bulb fixture , The unit I found 4‘ x 14“ on Amazon runs around $165 . It’s made by Vivosun . If anybody has any other recommendations ? When are the bulbs I will make acadia uvb The rest I’ll have plant grow lites ..


Attachments

  • F9ABEE3D-A050-4B4C-9180-20ED24C89350.jpeg
    244.9 KB · Views: 31
  • 0481D166-9B7E-4DF0-AD2A-2EA9EAD8A3E7.jpeg
    237.8 KB · Views: 34
  • DA14904D-B3E3-46BA-A06B-797B73D77413.jpeg
    231 KB · Views: 33
  • 3C3ED8DB-8C29-4C4E-8CCA-E4A70BD572D8.jpeg
    327.1 KB · Views: 32
  • D61EEE75-4DC6-4C24-99BC-FEDC6AF5FB33.jpeg
    233.7 KB · Views: 31
  • 4D7DB766-892A-4494-9FDD-B33C89AF039F.jpeg
    204 KB · Views: 26

GrayMadder

Chameleon Enthusiast
Site Sponsor
So to make this cabinet The size recommended 4‘ x 2‘ x 4’ i’ve had to modify the bottom and the back adding another 8 inches to the back and 5 inches to the Bottom . I also added wheels so it’ll be easy to move around once loaded I will be adding substrate to the floor with a drainage system .since the tank so large , i’m gonna upgrade to a mistking and a four bulb fixture , The unit I found 4‘ x 14“ on Amazon runs around $165 . It’s made by Vivosun . If anybody has any other recommendations ? When are the bulbs I will make acadia uvb The rest I’ll have plant grow lites ..
I LOVE! Watching these builds are my favorite ! Can't wait to see the finished project. 🙌🏼


crosscutts

Avid Member
I LOVE! Watching these builds are my favorite ! Can't wait to see the finished project. 🙌🏼

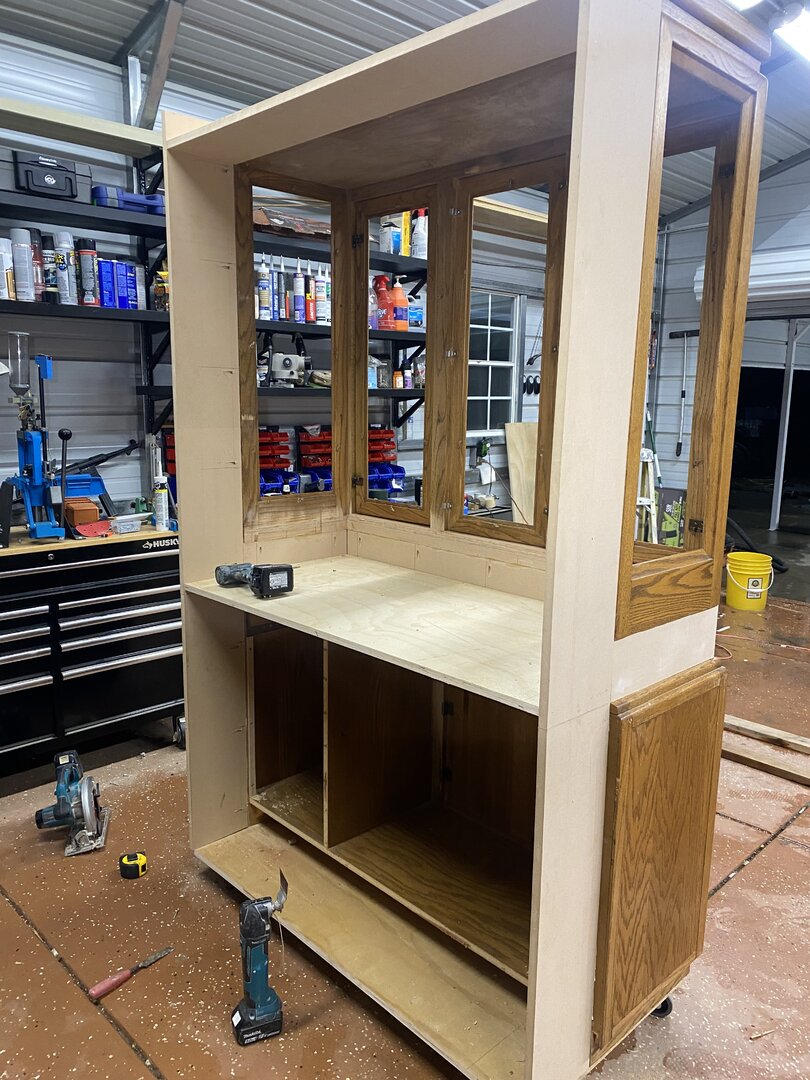

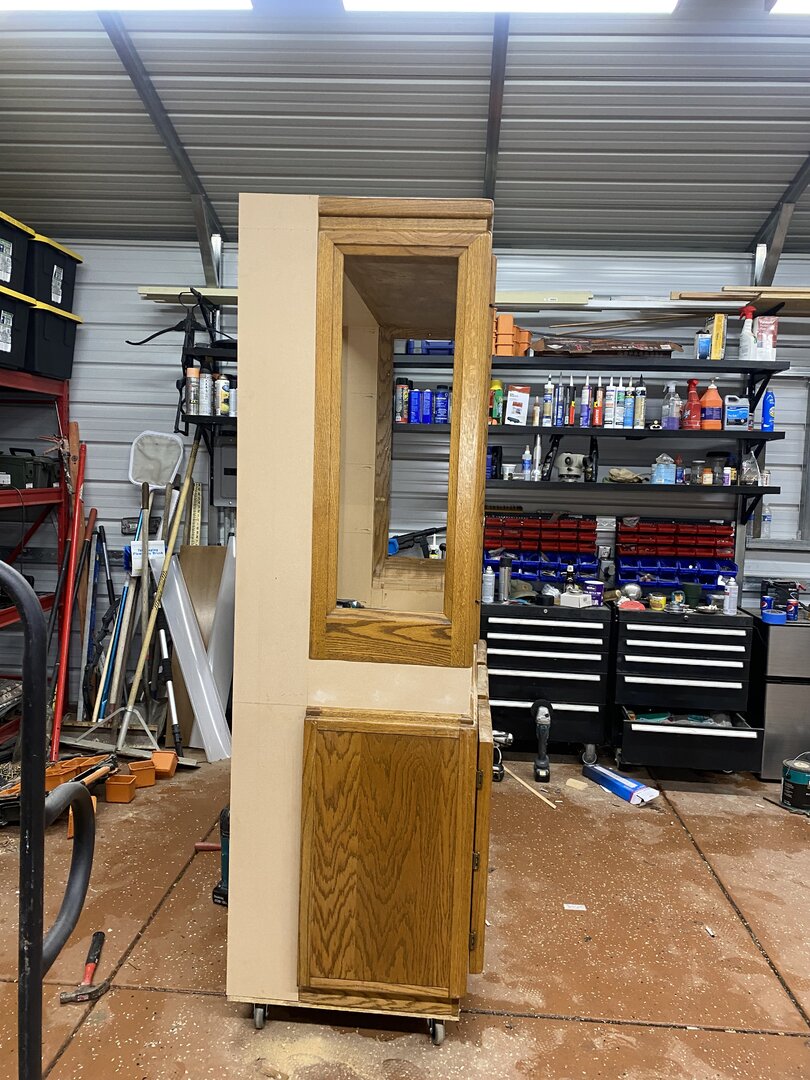

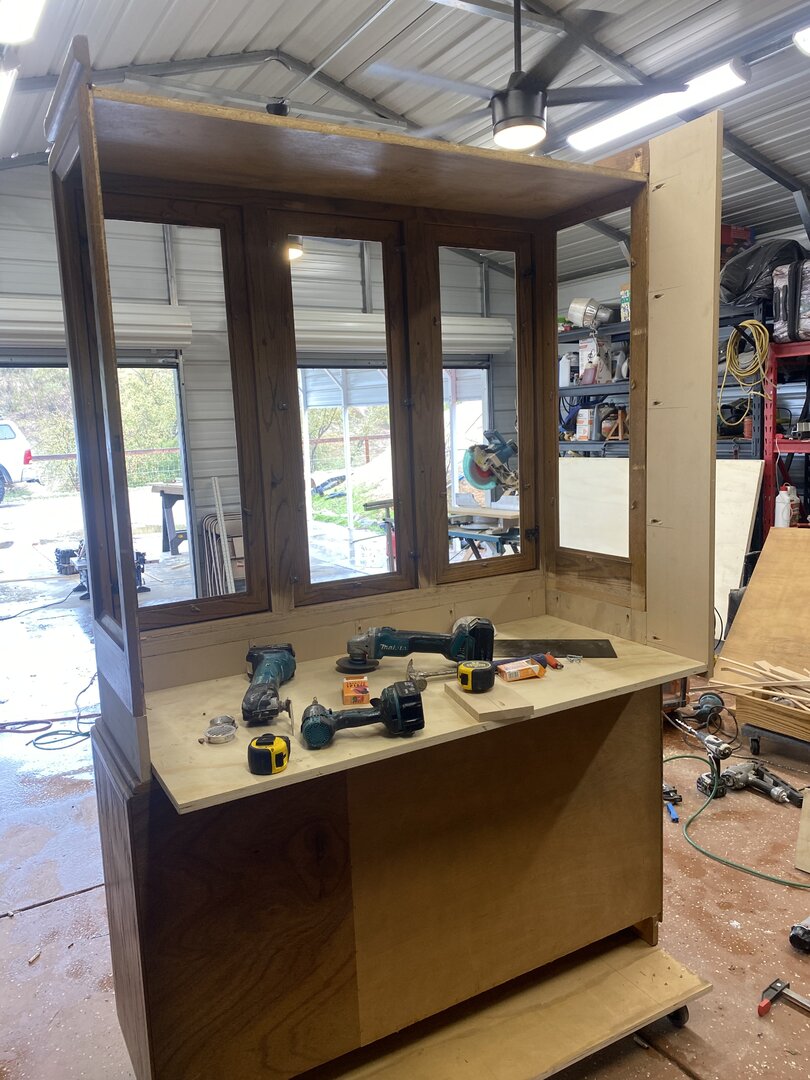

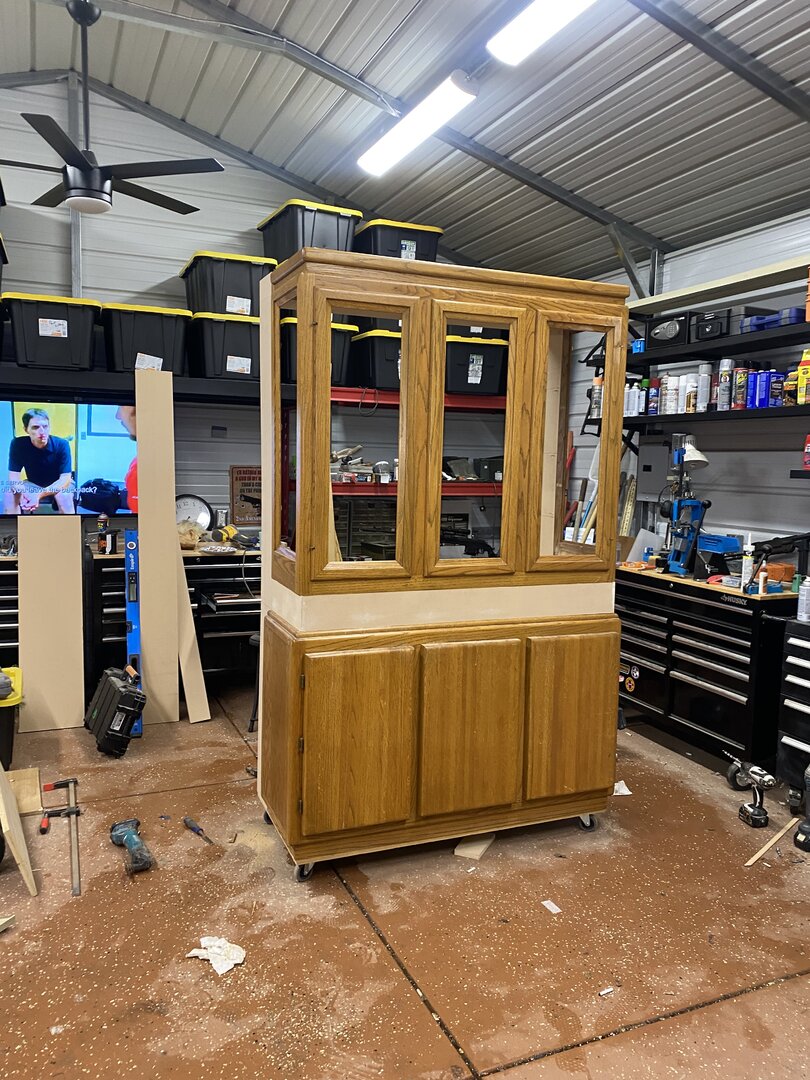

Thank you buddy , I promise to go through the whole thing lol


Attachments

  • CE9D9852-DA0E-47F5-B5F1-99B9854878CF.jpeg
    239.6 KB · Views: 33
  • DA864C3D-613C-4D44-A84F-FE3A0D6488D6.jpeg
    174.1 KB · Views: 33
  • 9EA5CD44-9D41-408A-80DB-DA682196A5DB.jpeg
    203.6 KB · Views: 34
  • 65A66628-B0E5-4AB8-A820-38F8DAB67EC0.jpeg
    220.5 KB · Views: 31
  • D6AA0480-9B7D-42E1-991A-0C665D5049DC.jpeg
    224.5 KB · Views: 32

crosscutts

Avid Member

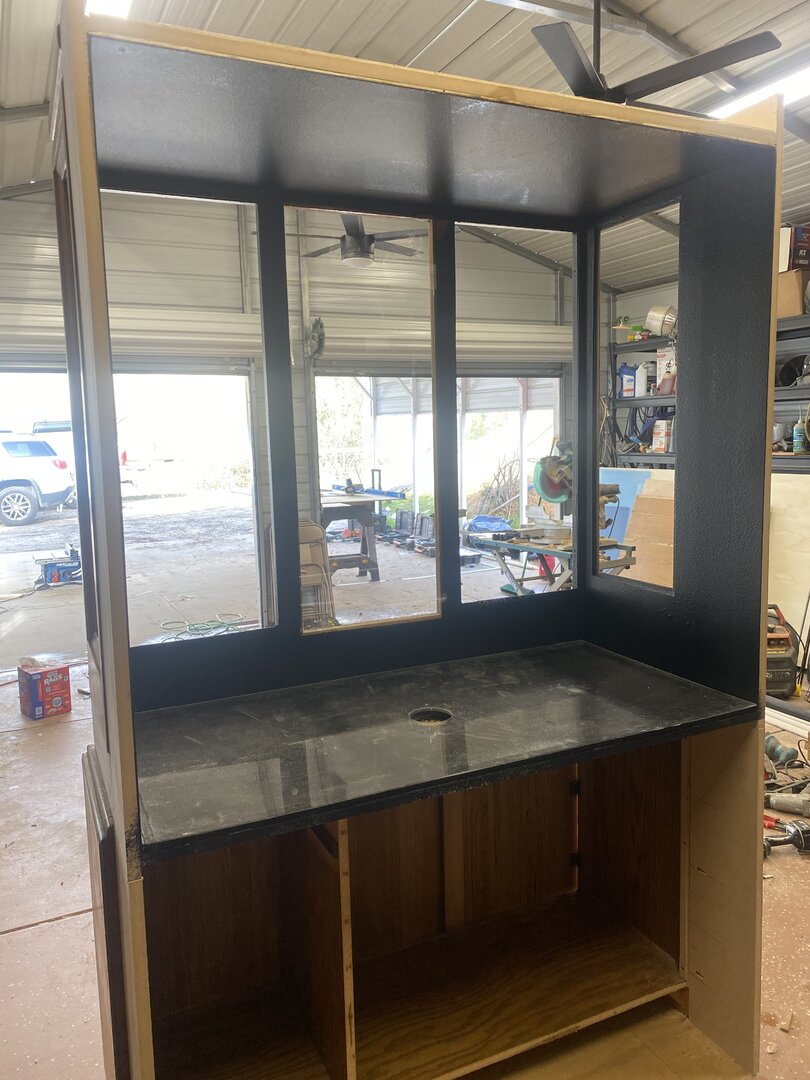

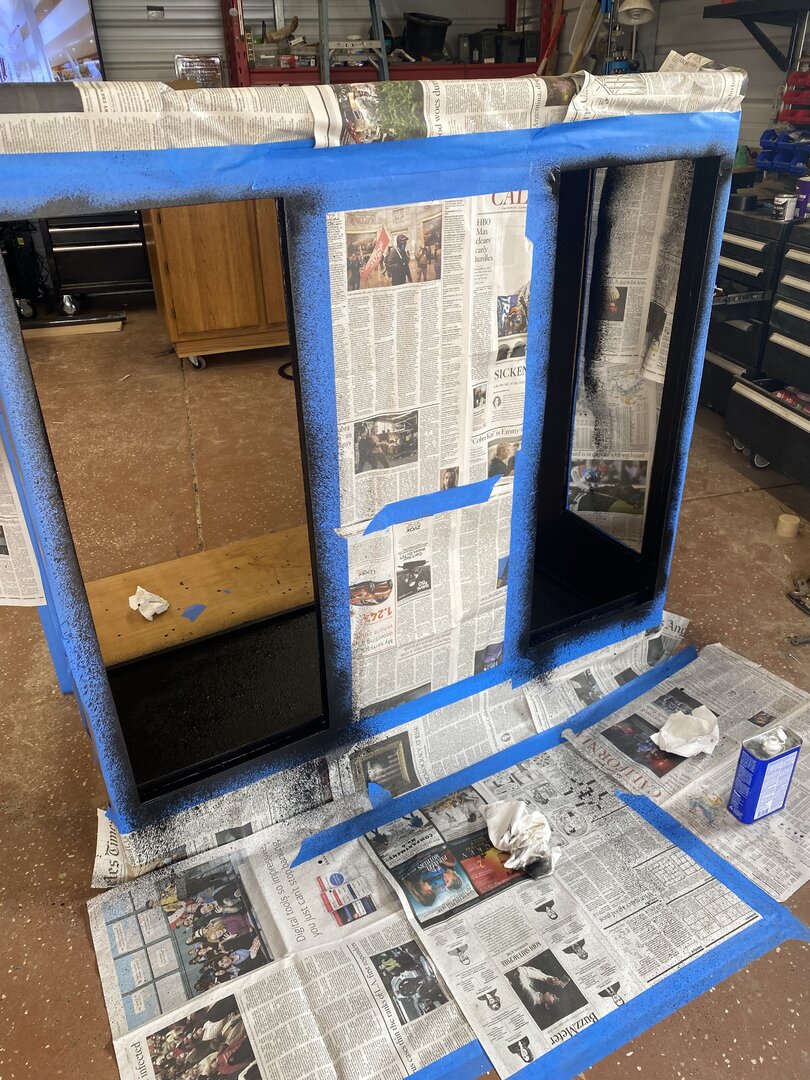

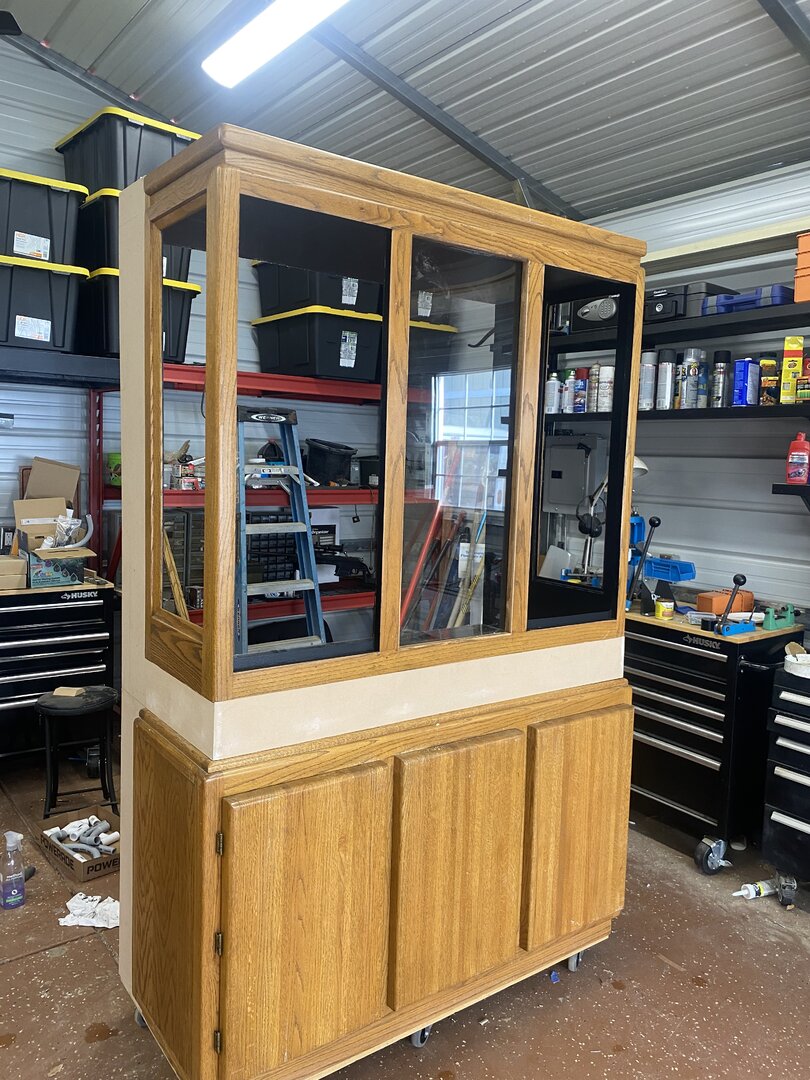

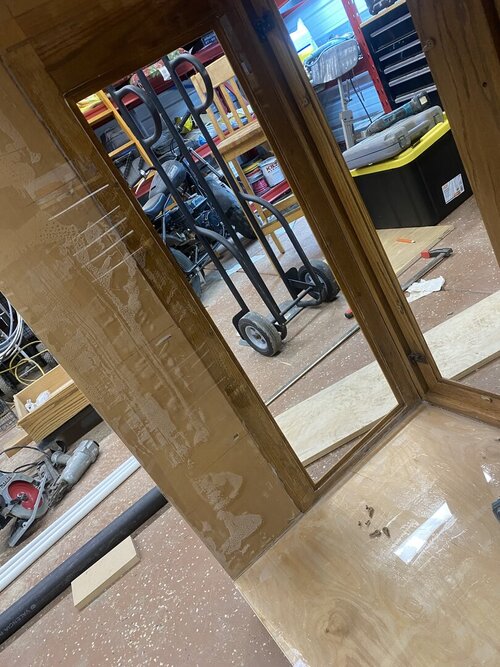

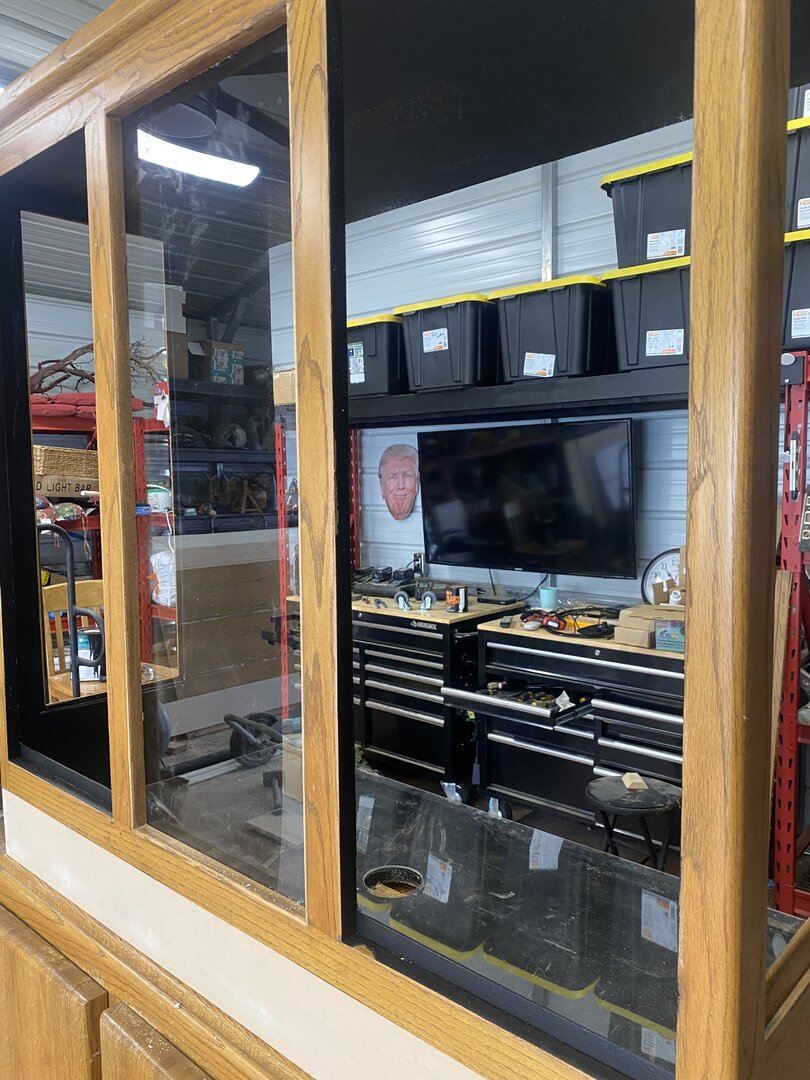

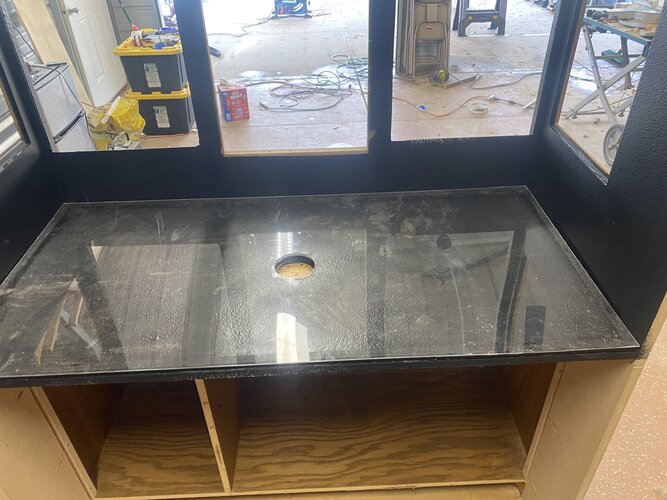

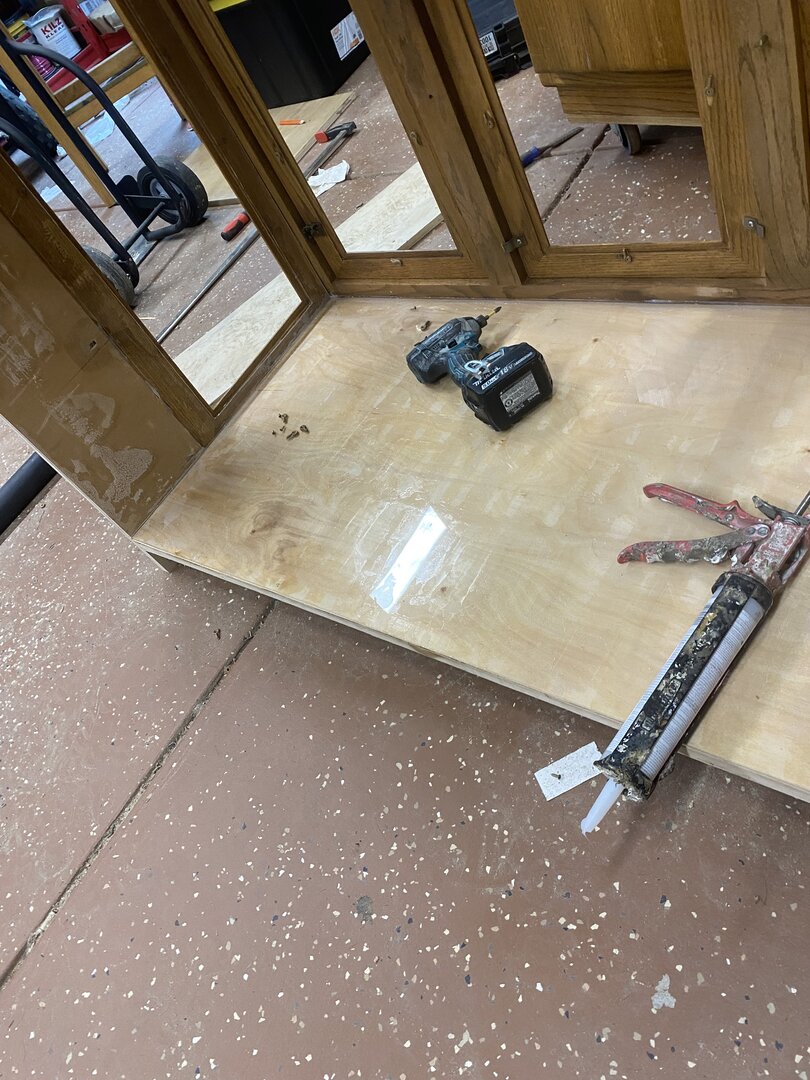

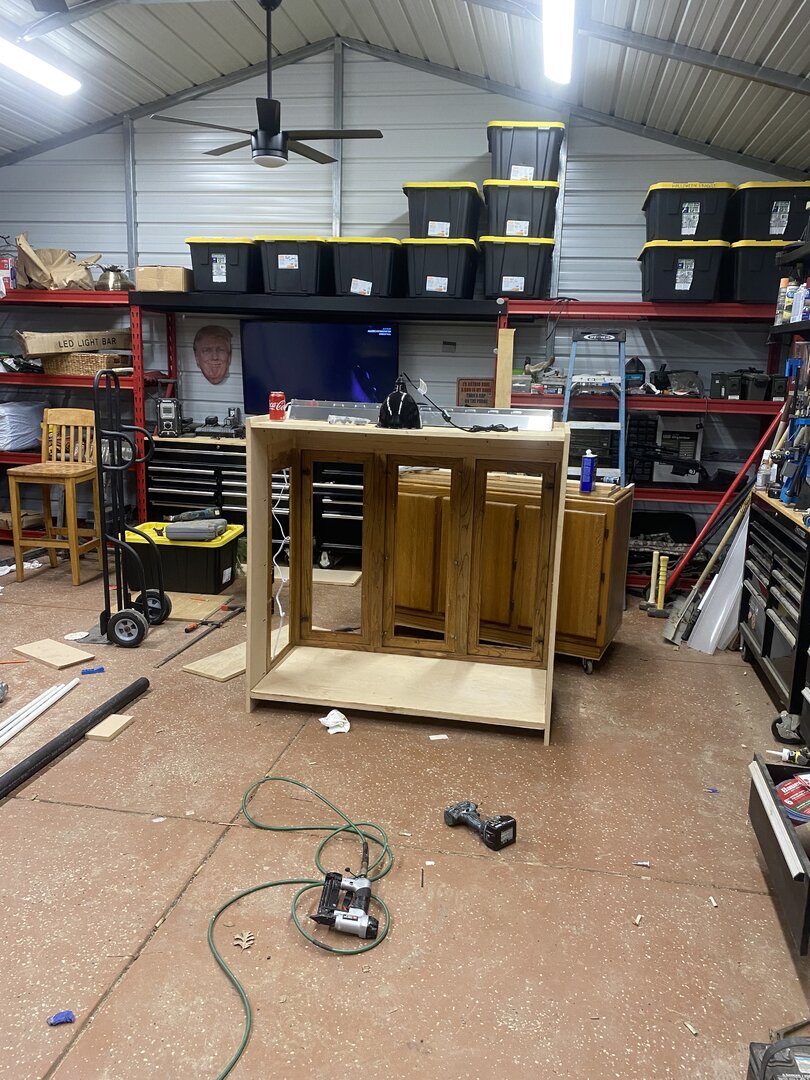

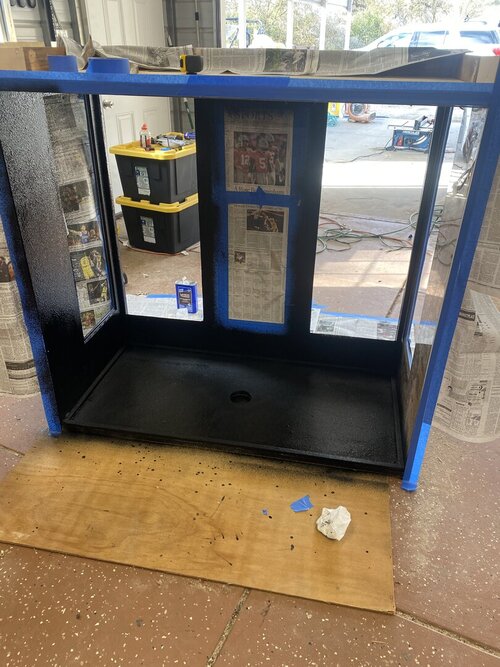

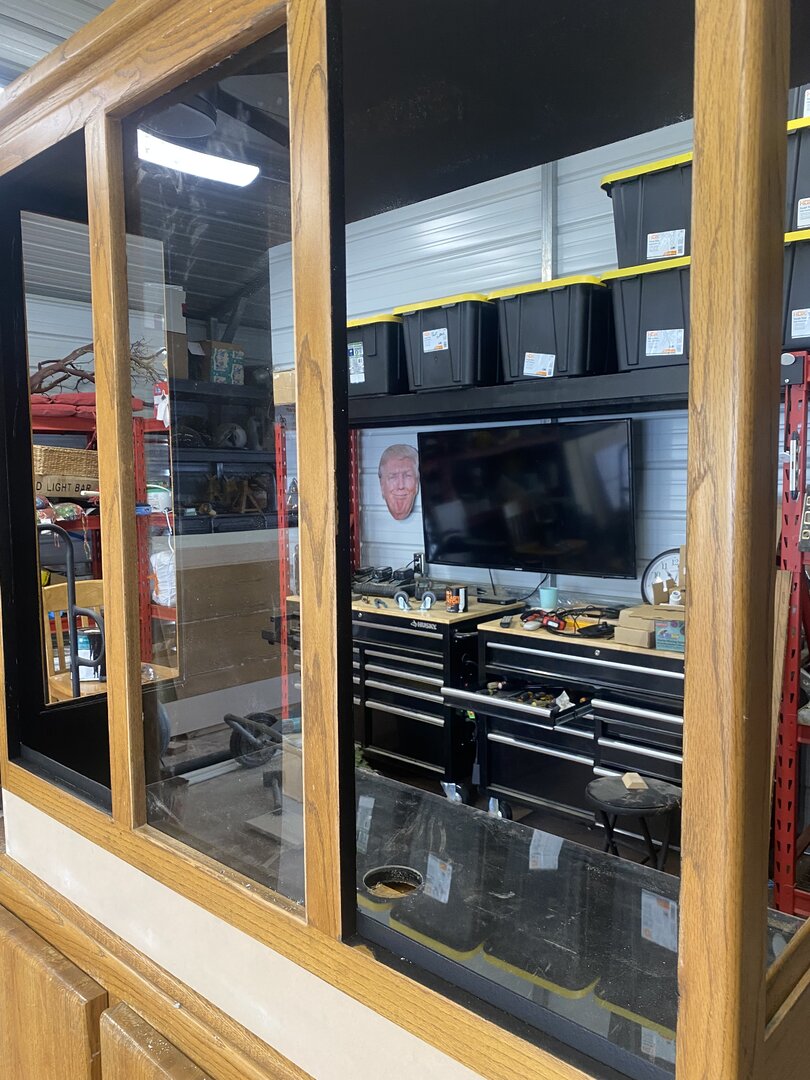

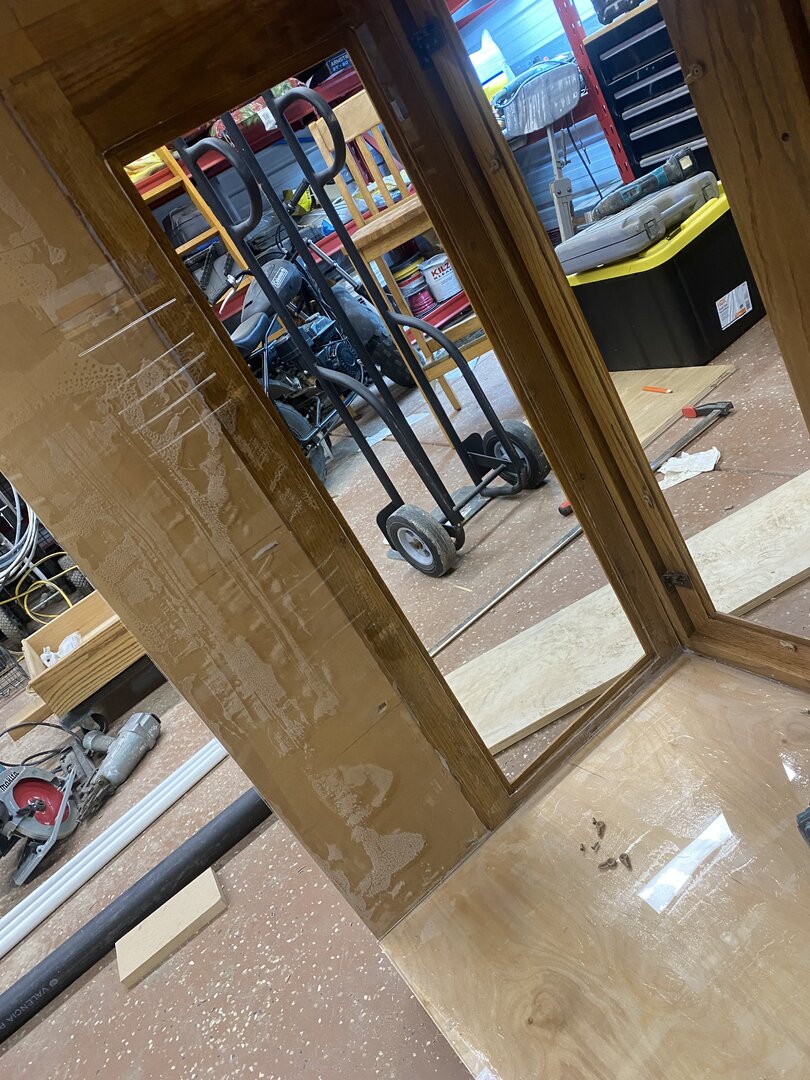

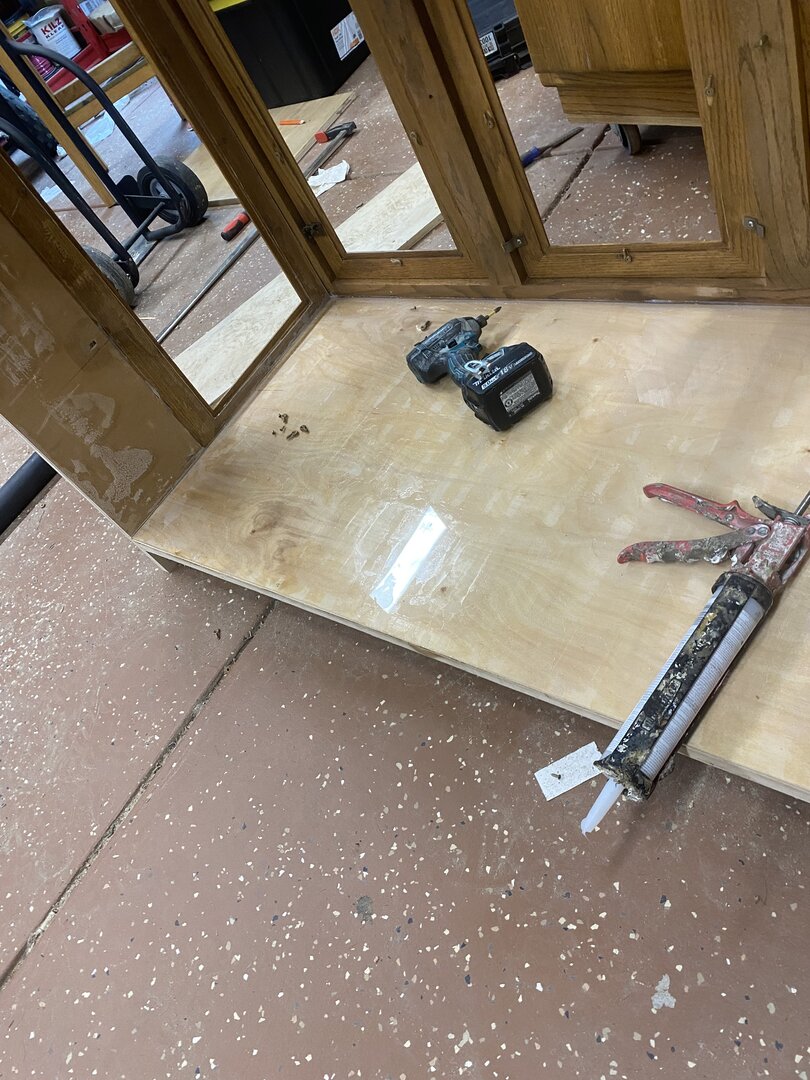

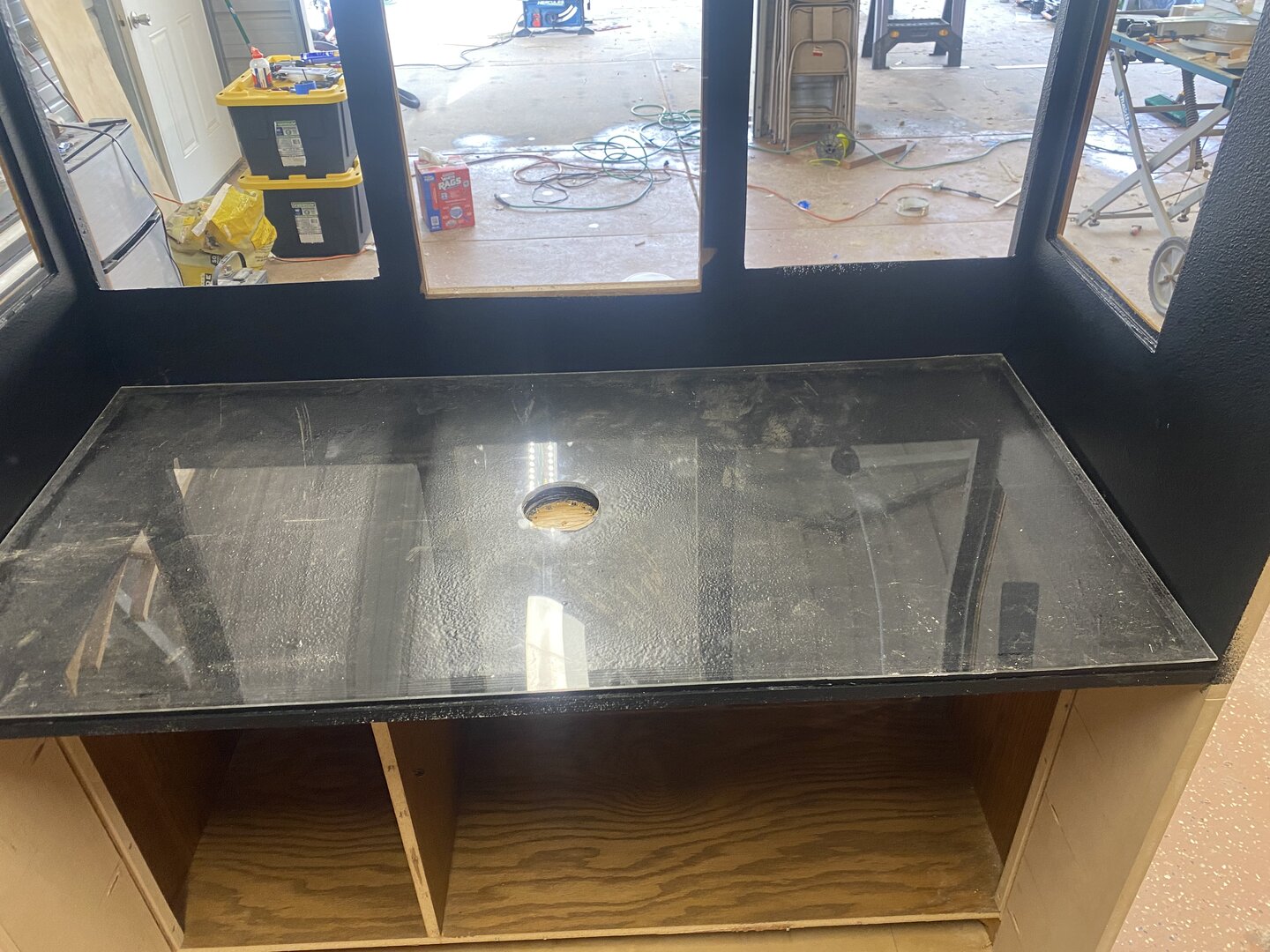

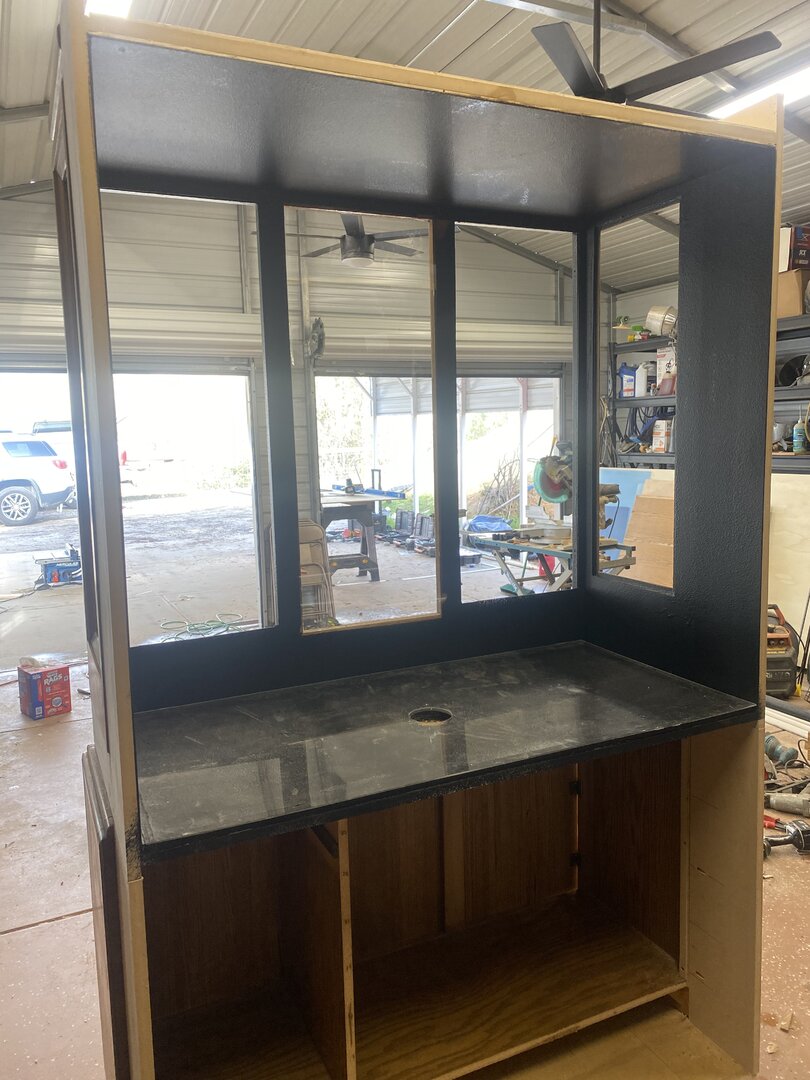

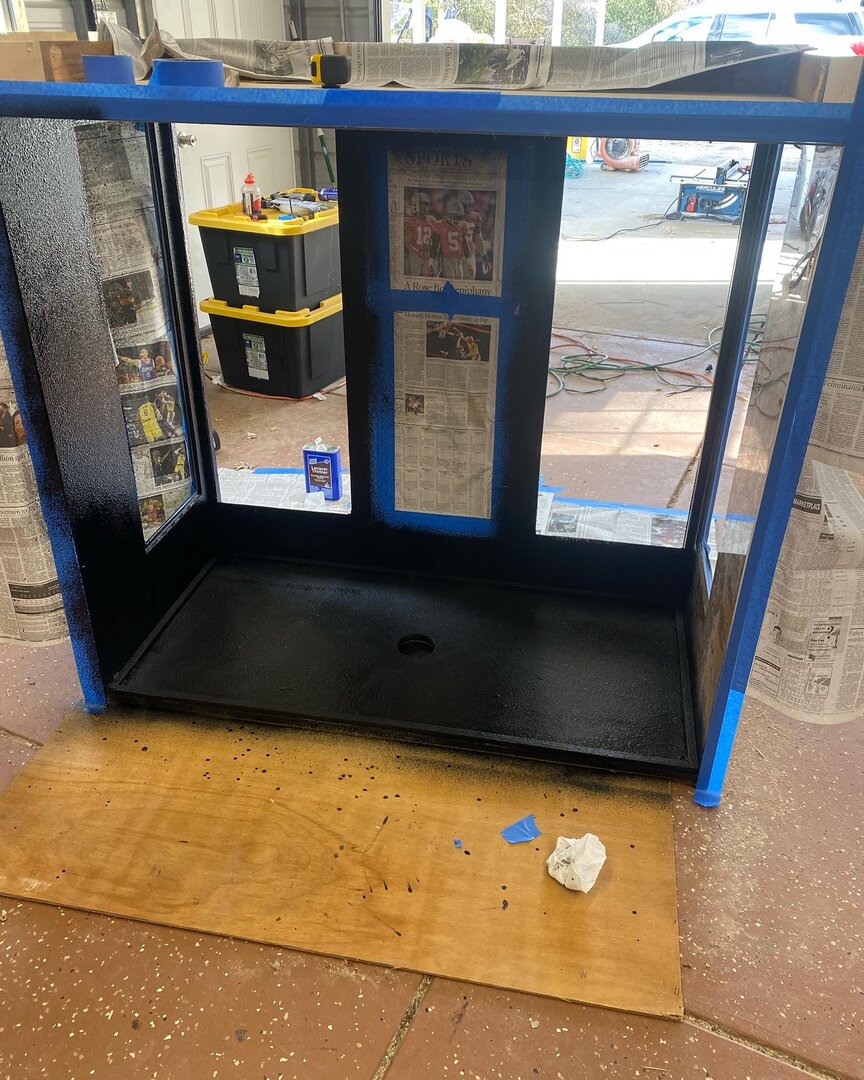

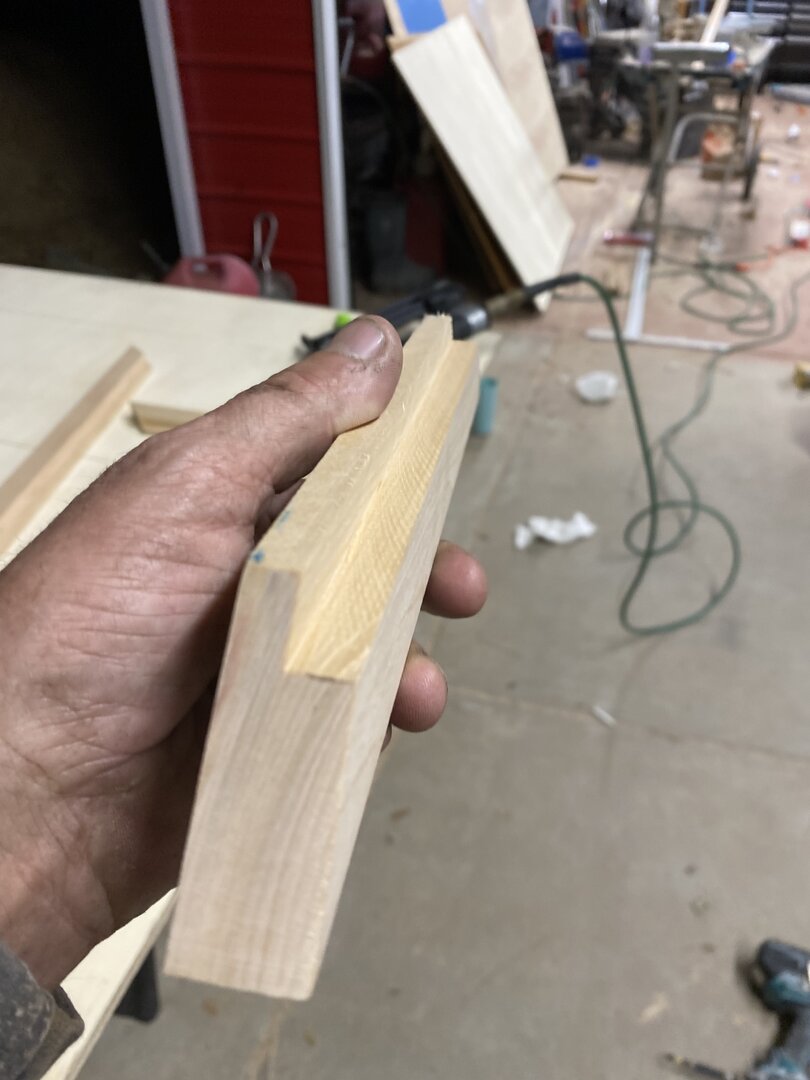

Got some more progress done this weekend .. installed 8th inch plexiglass around the whole interior , silicone in place the back for support and all edges so moisture will not protrude , then sprayed the whole inside over the top of Flexi and any exposed wood with flexseal , several parts came in from Amazon . Still having a hard time deciding whether I’m going to keep it minimalistic , with plants in pots or go full-blown with bio system and foaming the back wall .. used 8th inch Plexi on the bottom put half inch rim around outside edge drain in the middle of a pull plexi down to give drainage slope . With valve underneath and 5 gallon bucket ..


Attachments

  • 831E4351-B60C-4D8A-BB12-F8CA10DF775F.jpeg
    232.1 KB · Views: 35
  • 50E034BD-0590-4FE6-868B-E5D3AAD795F4.jpeg
    201.9 KB · Views: 32
  • 4DA4D2CF-C7B0-4C6E-AF05-31CCAACA54FD.jpeg
    227.7 KB · Views: 36
  • 1F1B50B7-7B83-4CFD-A0A7-8D4ED583D0A7.jpeg
    265.9 KB · Views: 31
  • 33012A1C-0C6C-4E6A-9B10-4B145D5DA6BF.jpeg
    201.3 KB · Views: 35
  • 5E8B4B3D-75E6-48FB-948F-F8A6BF61B7FF.jpeg
    221.7 KB · Views: 33
  • BB00579B-1795-4721-9BF4-1B614E1625AF.jpeg
    191.2 KB · Views: 31
  • E66A5173-FA40-423E-A068-E2E7B0FC71B9.jpeg
    147.4 KB · Views: 29
  • E3D2E4FB-D0DA-4D5E-B3CD-B18747EFE1E1.jpeg
    296.6 KB · Views: 36

crosscutts

Avid Member

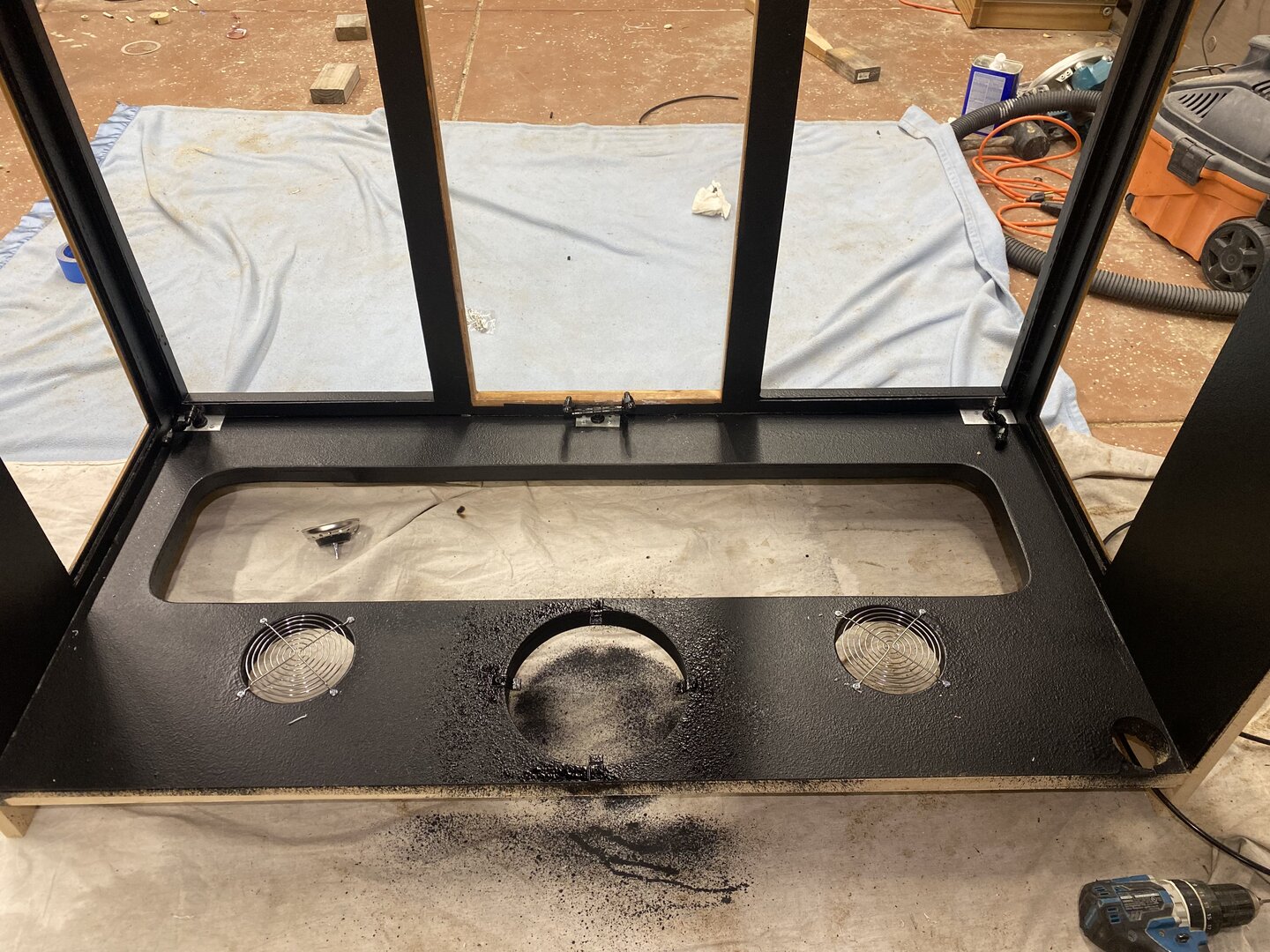

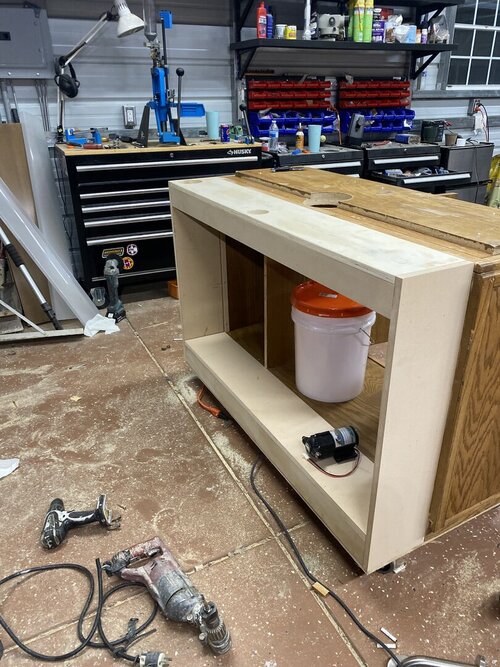

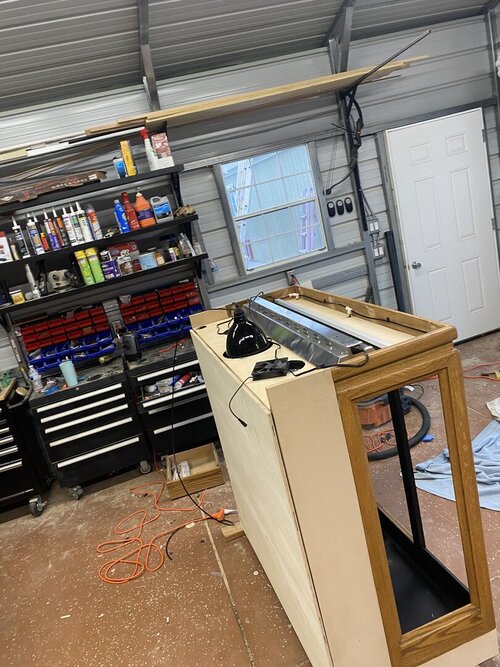

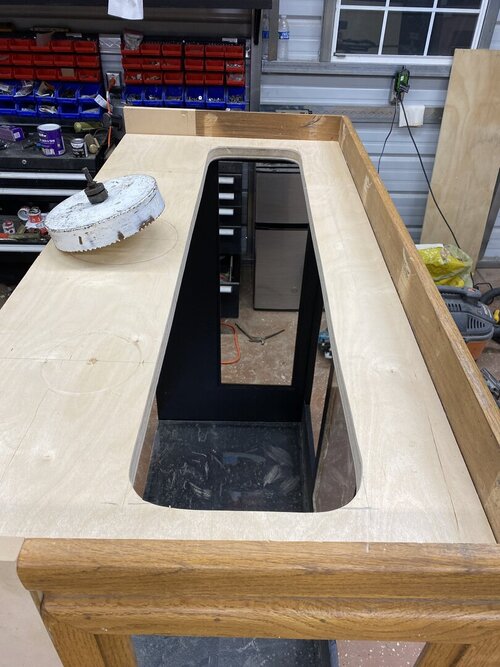

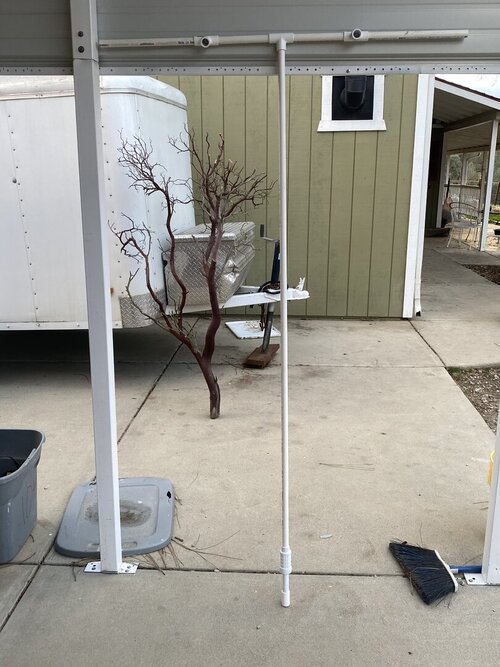

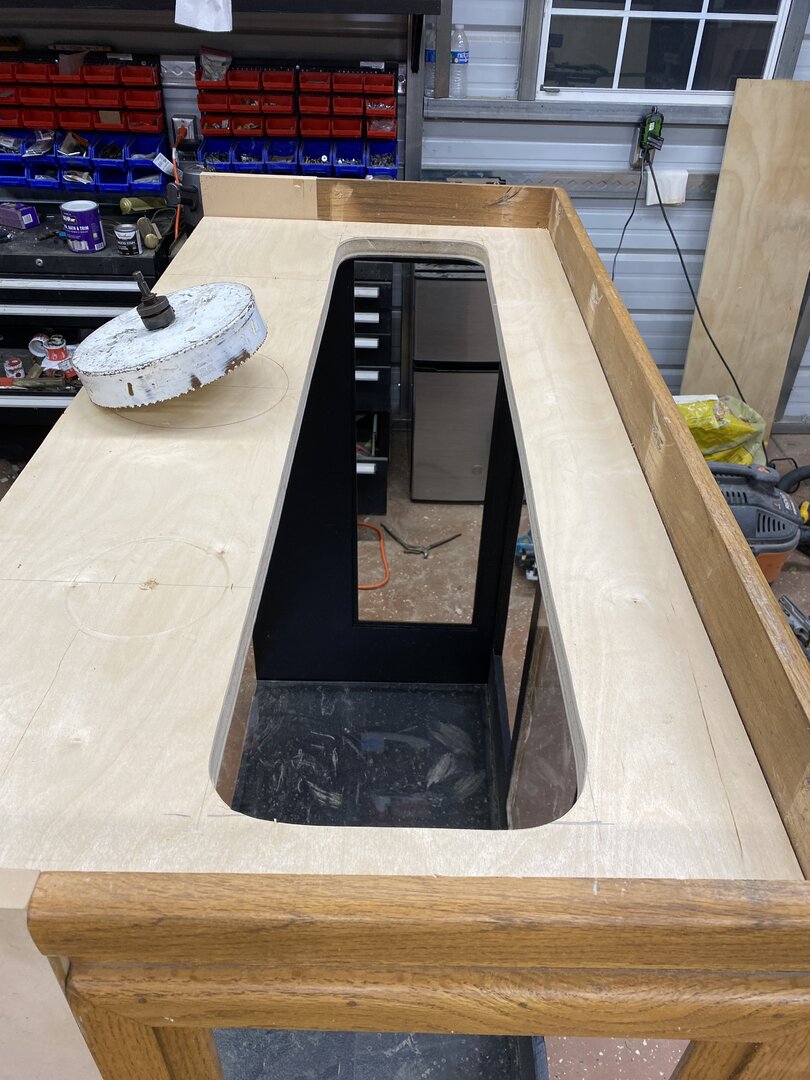

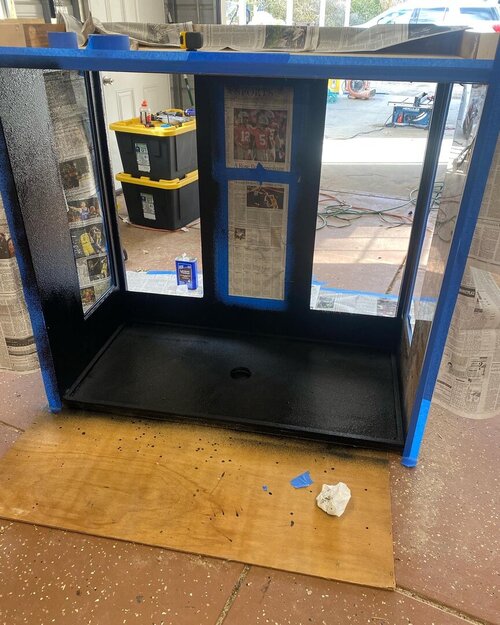

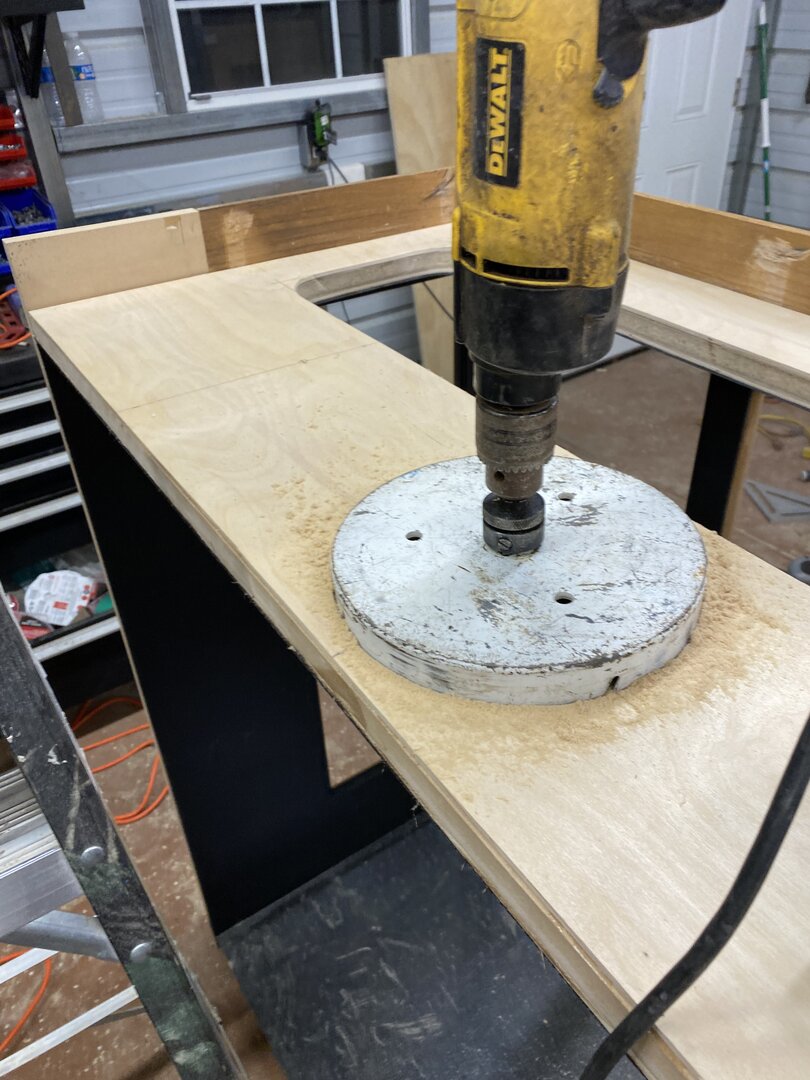

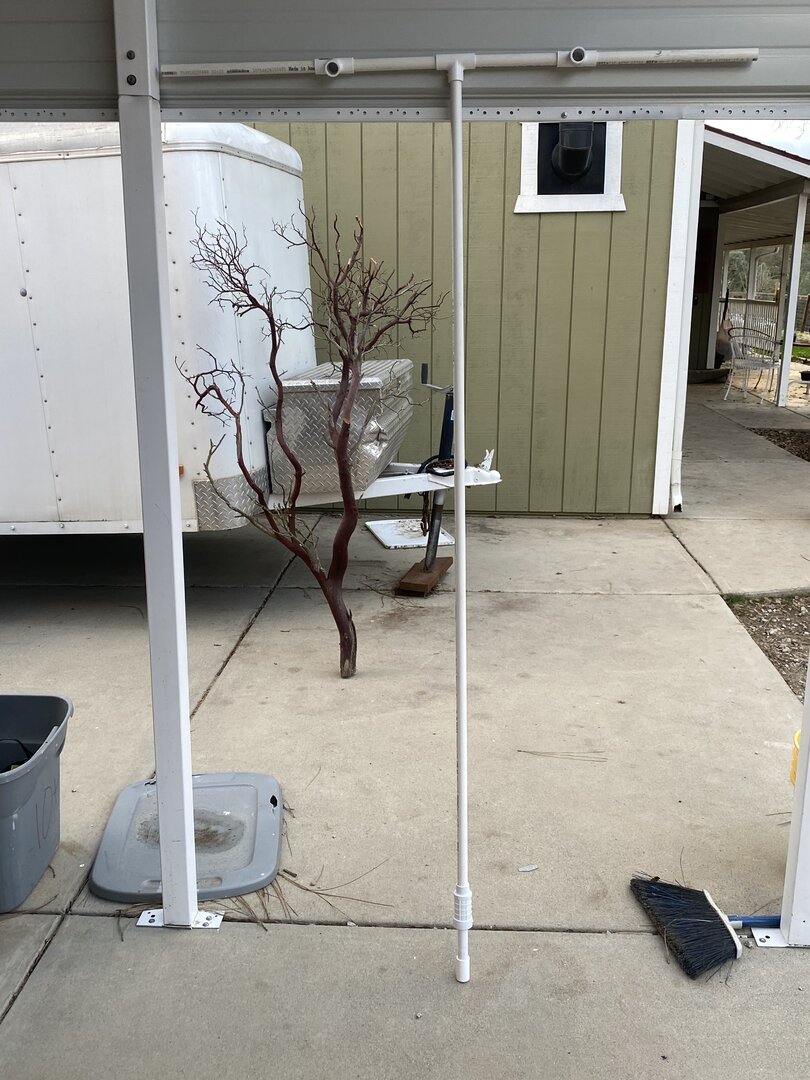

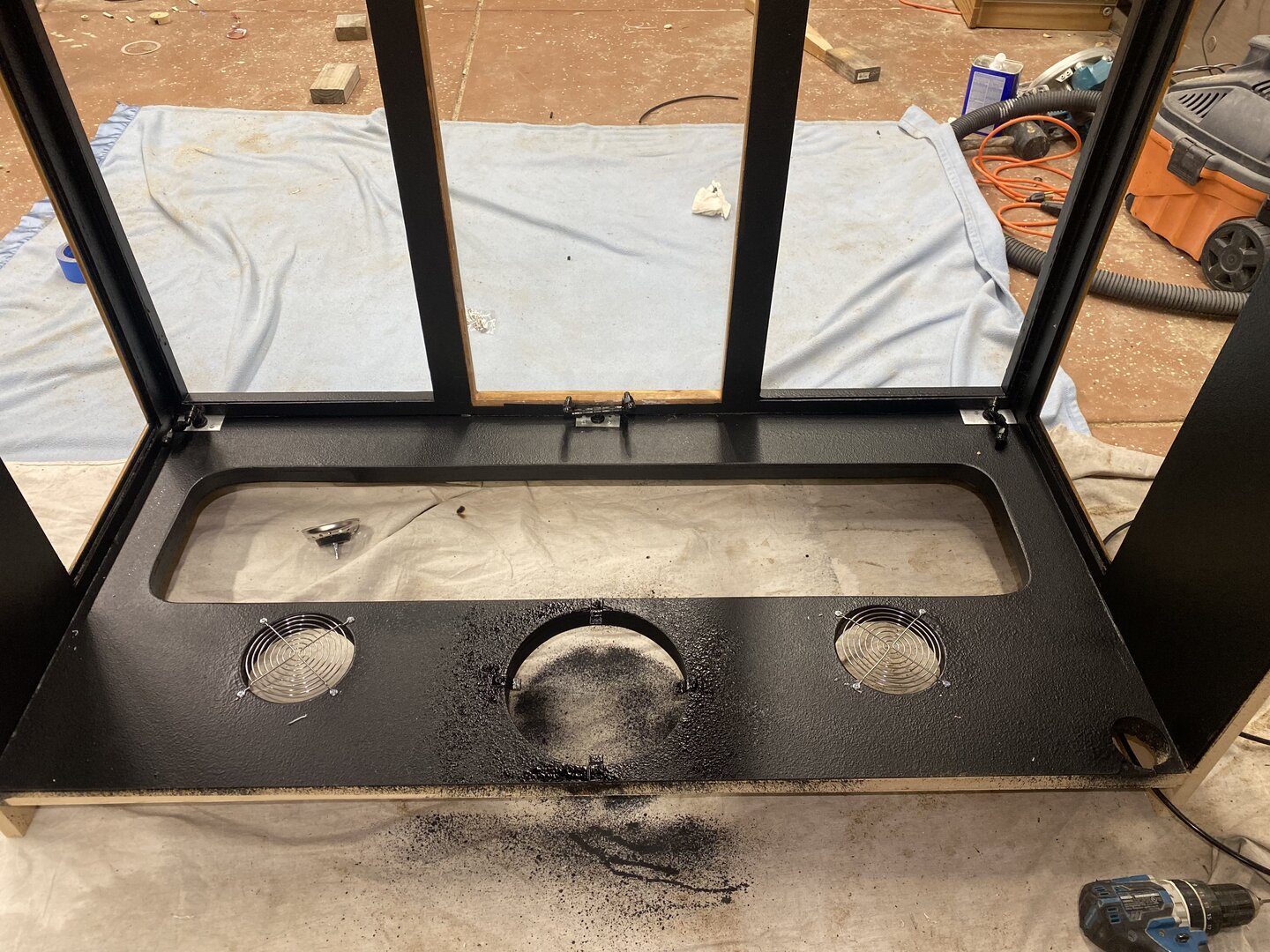

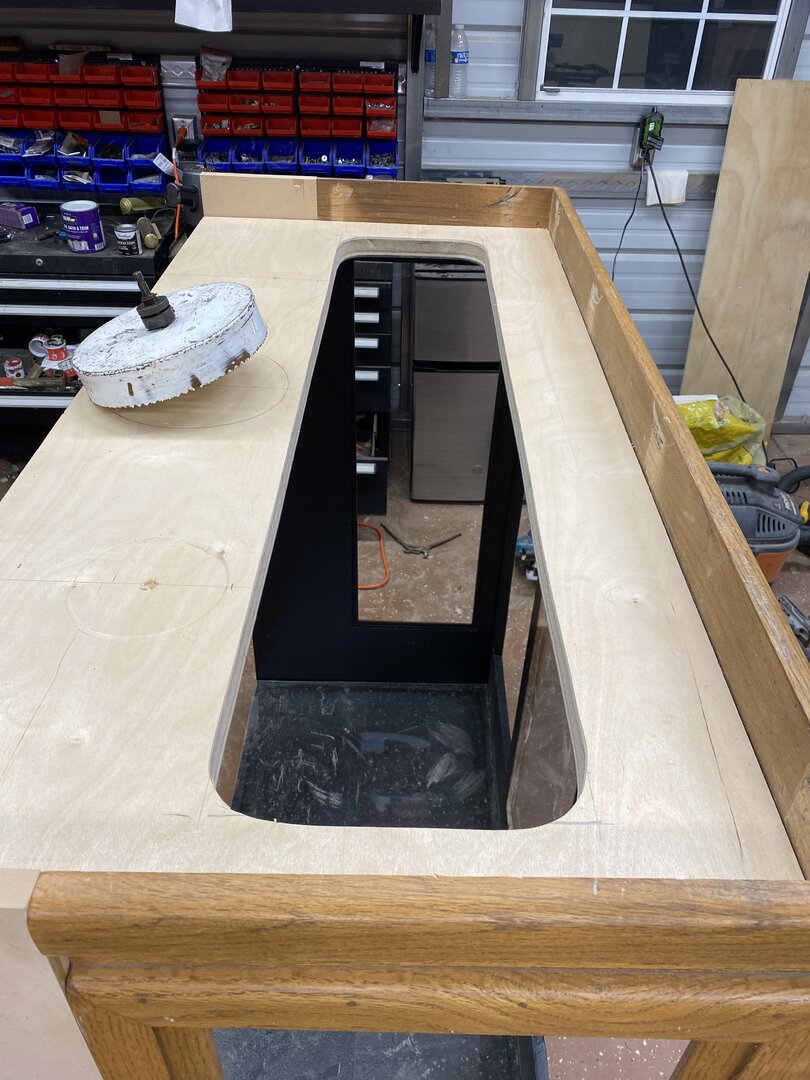

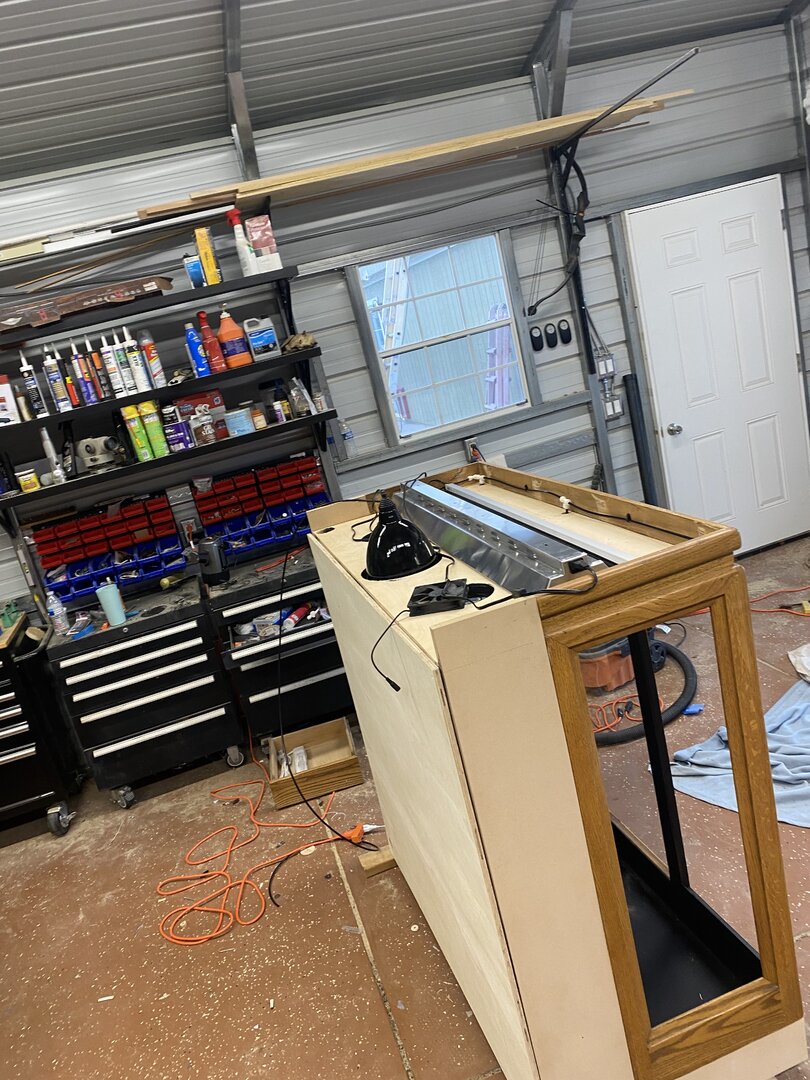

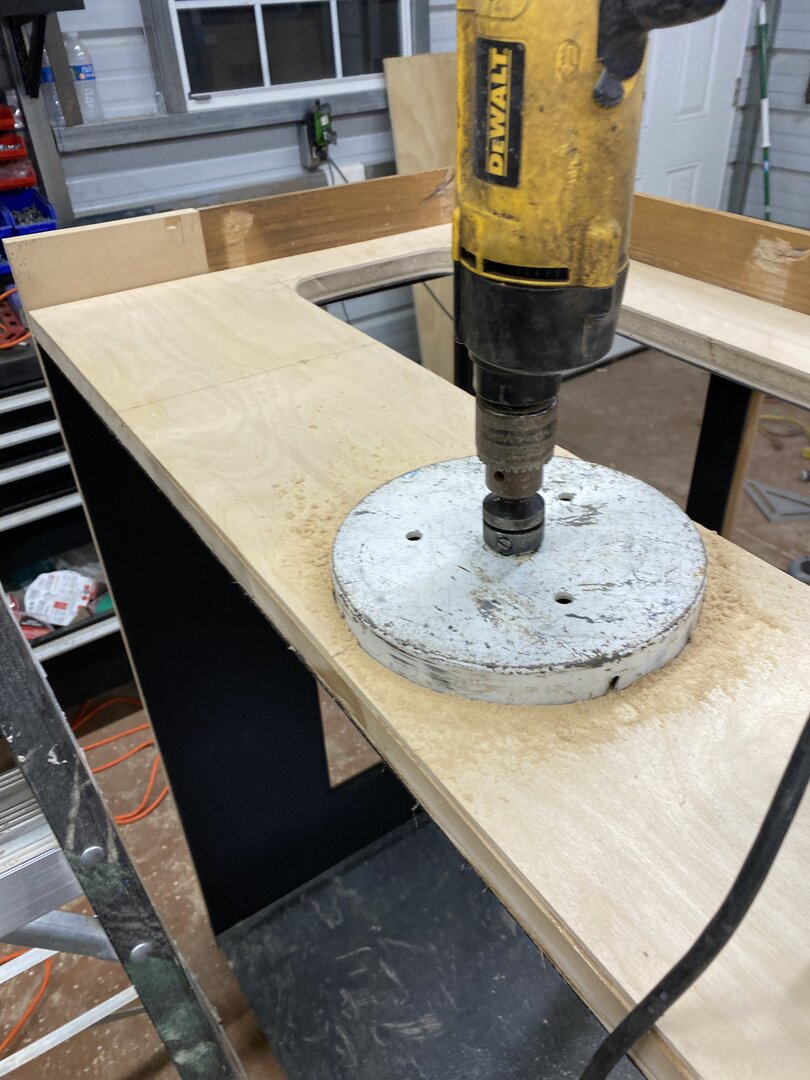

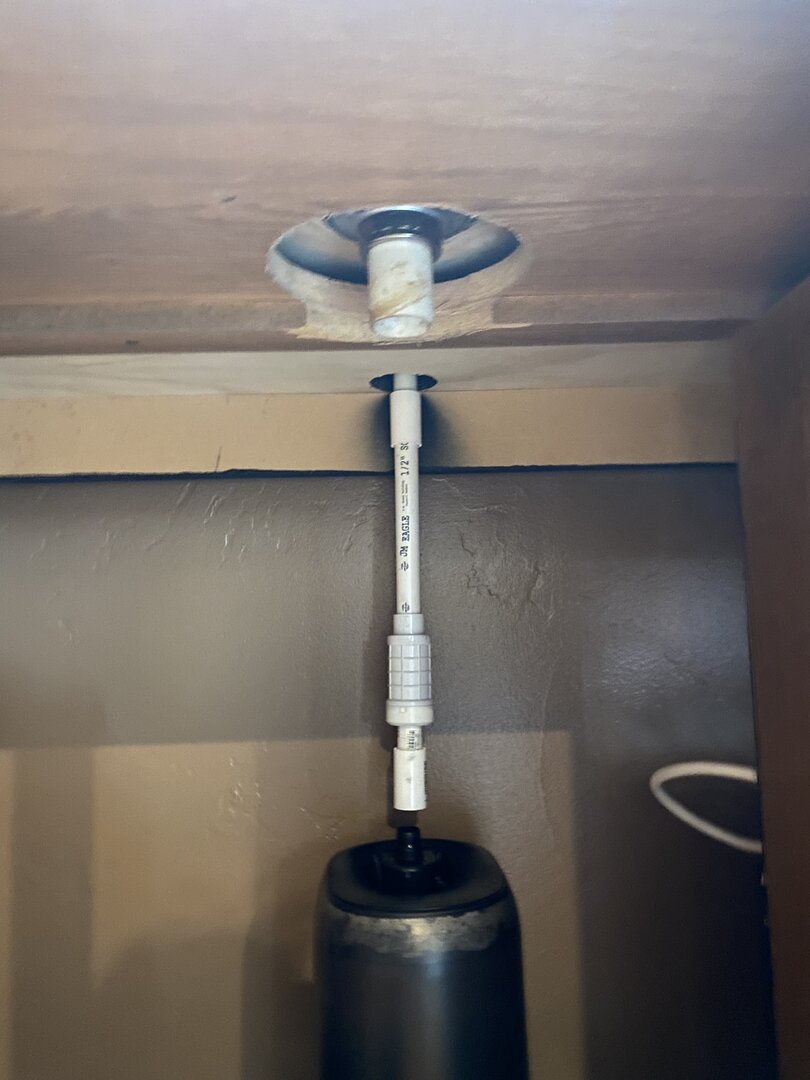

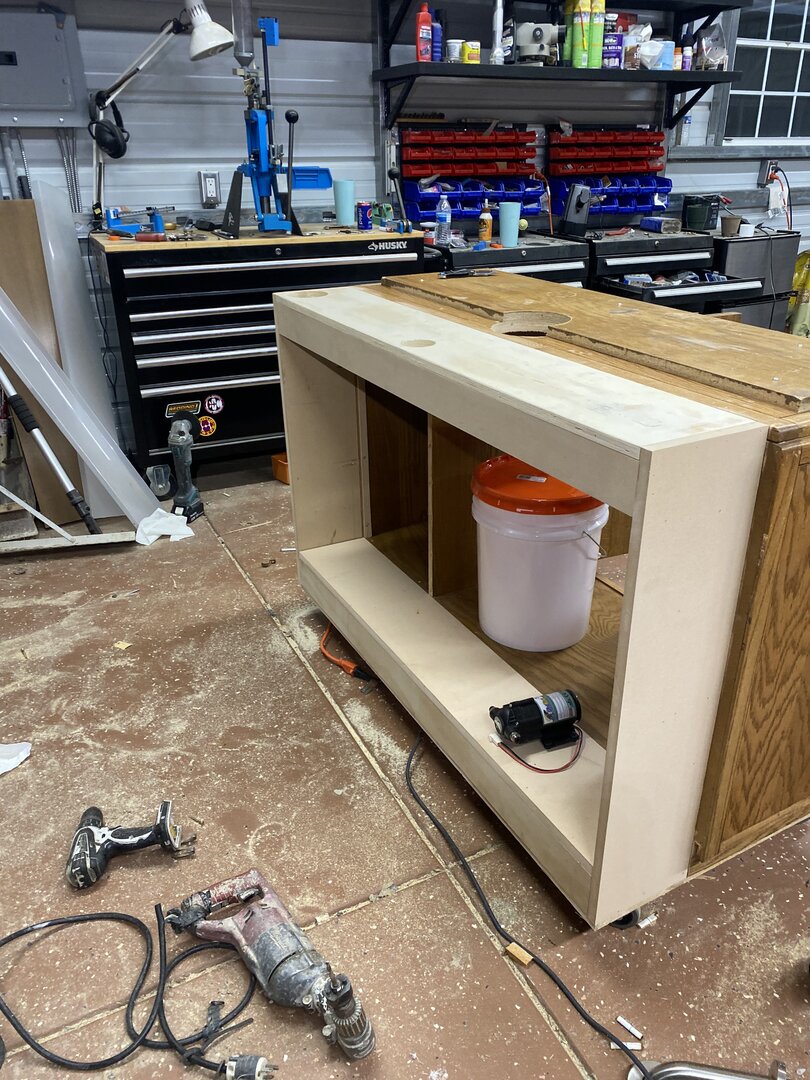

Two more days on this Got the rest of the plexiglass cut for the back, Cut holes for lights in the top . Set misters from Miss Kim system. Started working on the base unit , penetrations for wiring and misting system as well as fogger into bottom of unit. Tested PVC or fogger


Attachments

  • 25B83F22-8977-4CB7-BF7D-EEA442CCC312.jpeg
    224.5 KB · Views: 26
  • C8C66481-8BB7-4060-997A-BDEDA5E4A097.jpeg
    167.8 KB · Views: 25
  • B5519CE5-2105-4A4F-86CA-7AA79866FE9B.jpeg
    151.3 KB · Views: 23
  • 9C43F4DC-058B-4495-85DC-CDA118D05AA0.jpeg
    367.8 KB · Views: 24
  • 14CB9684-BFE7-431B-AA7F-5F9877A2E59F.jpeg
    223.6 KB · Views: 27
  • 0DCCD6D1-F2E7-4A8B-AF5C-44C97591F9E5.jpeg
    234.9 KB · Views: 26
  • 01ED5658-4AD5-4BA1-8810-C7682617C6D0.jpeg
    172.4 KB · Views: 25

crosscutts

Avid Member

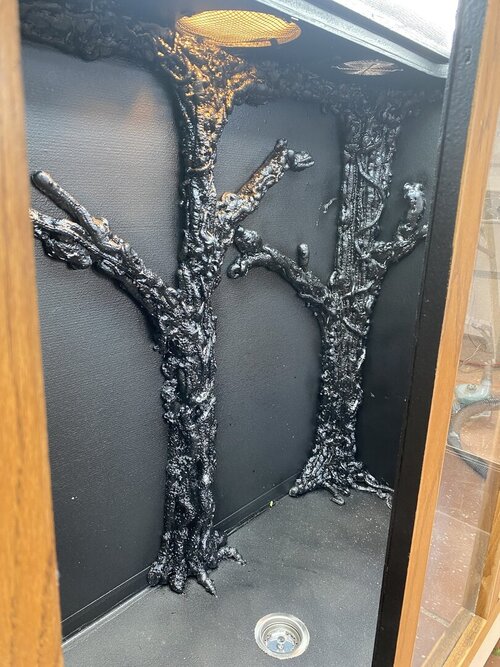

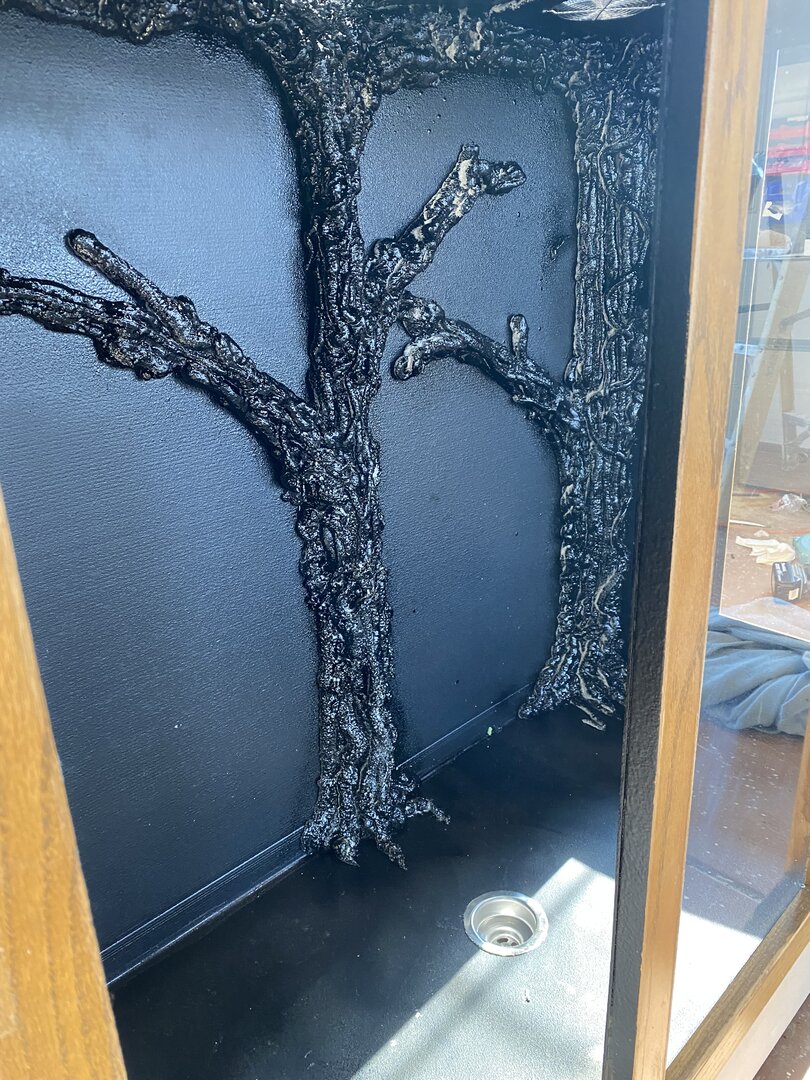

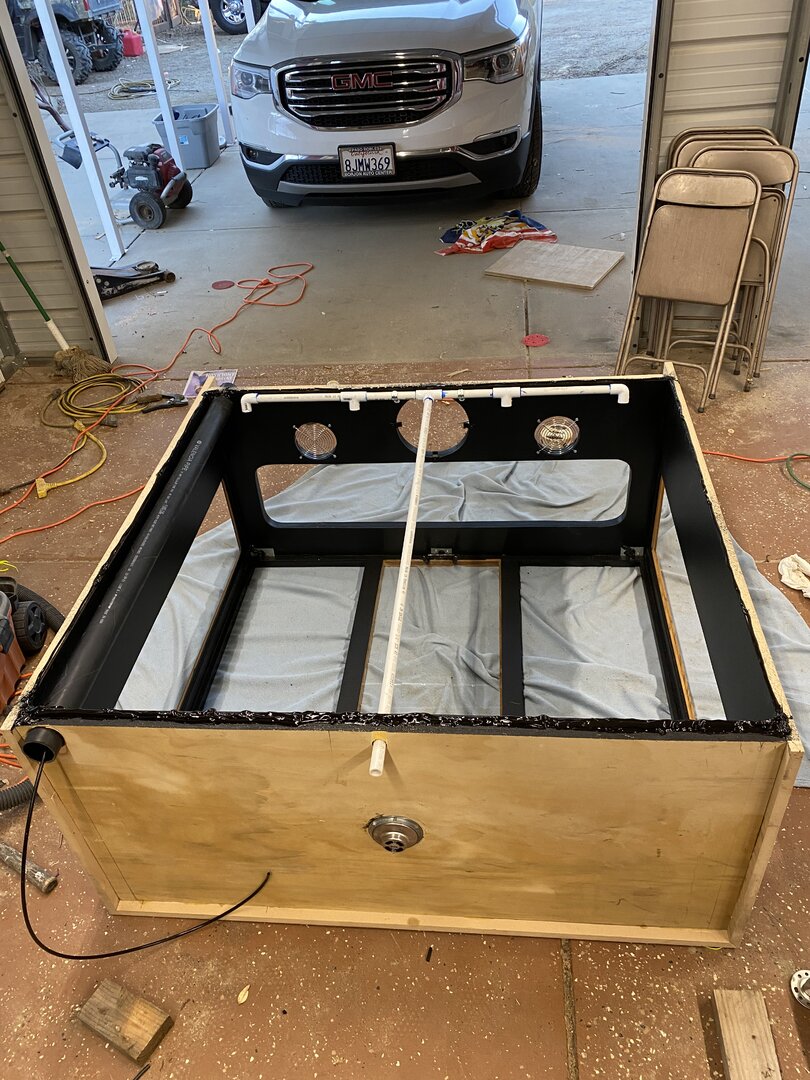

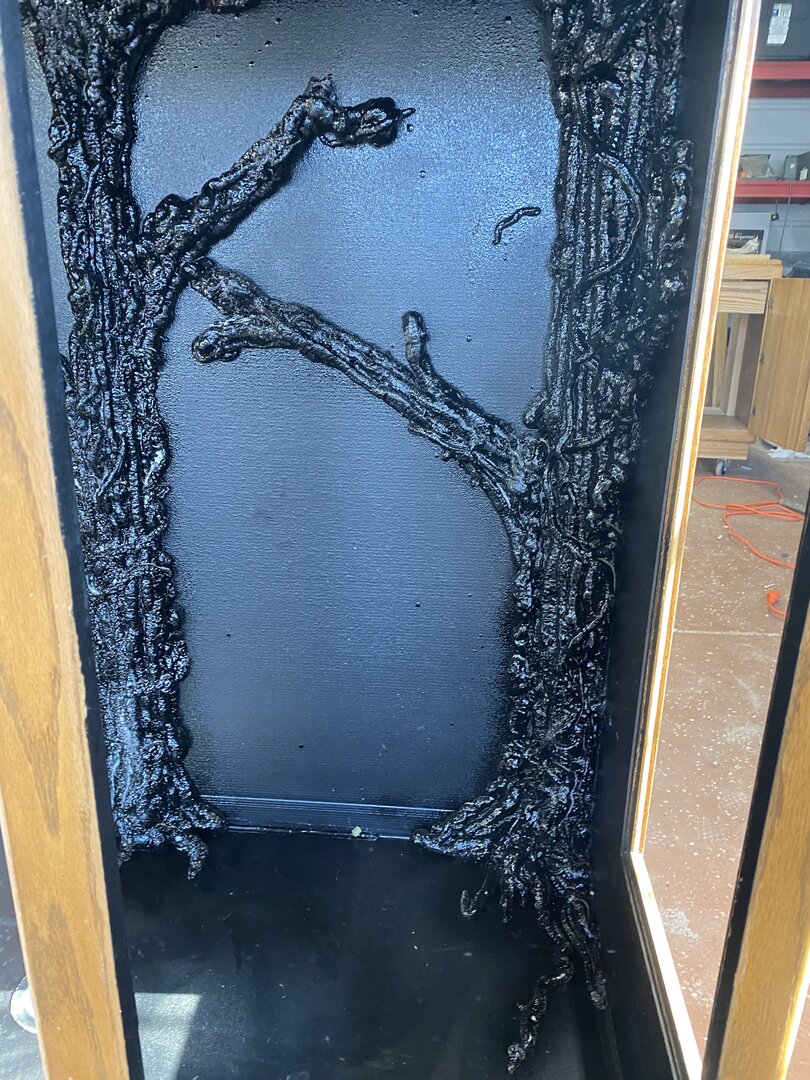

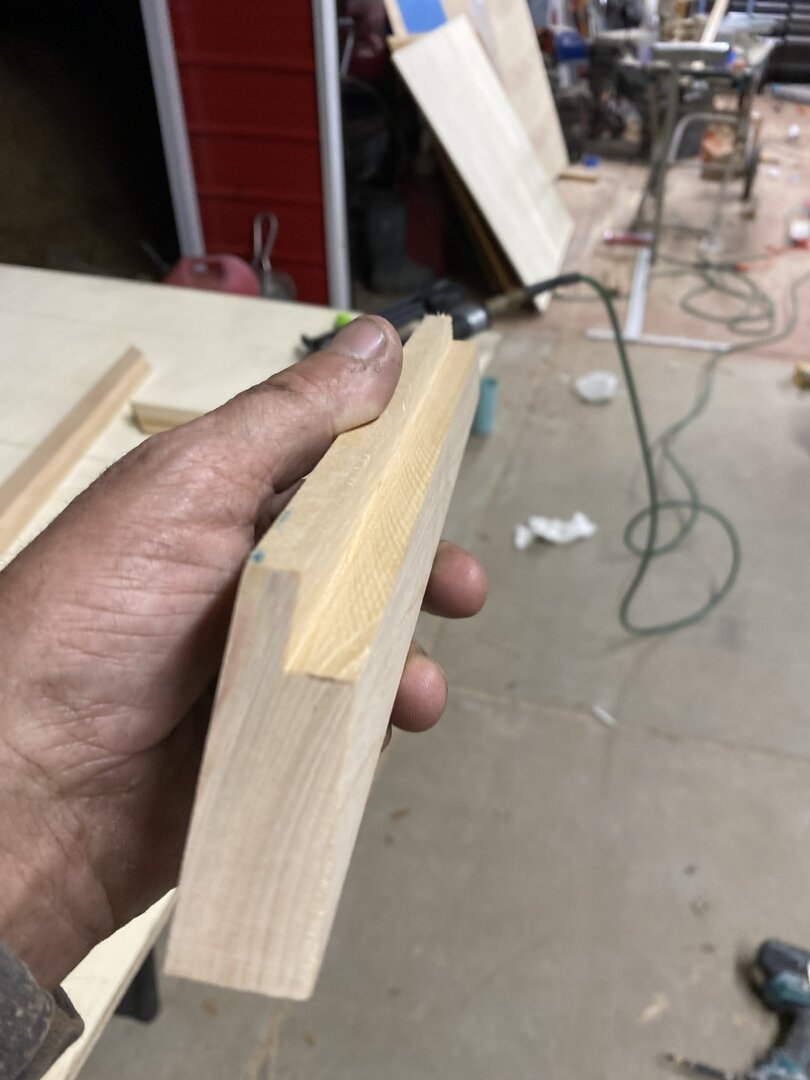

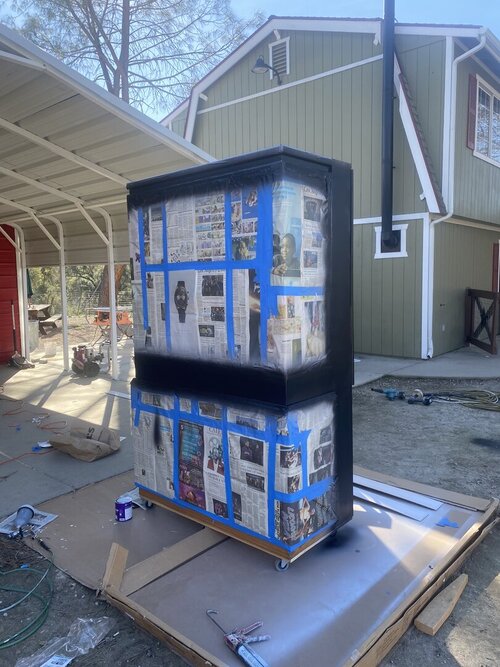

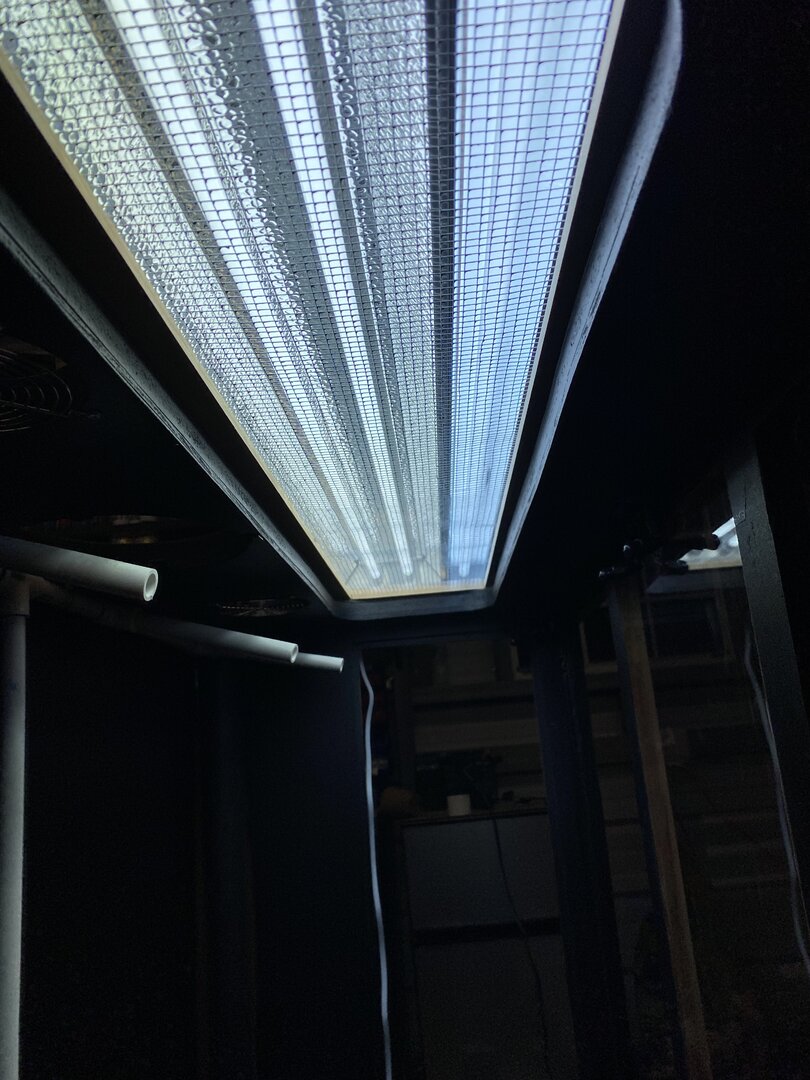

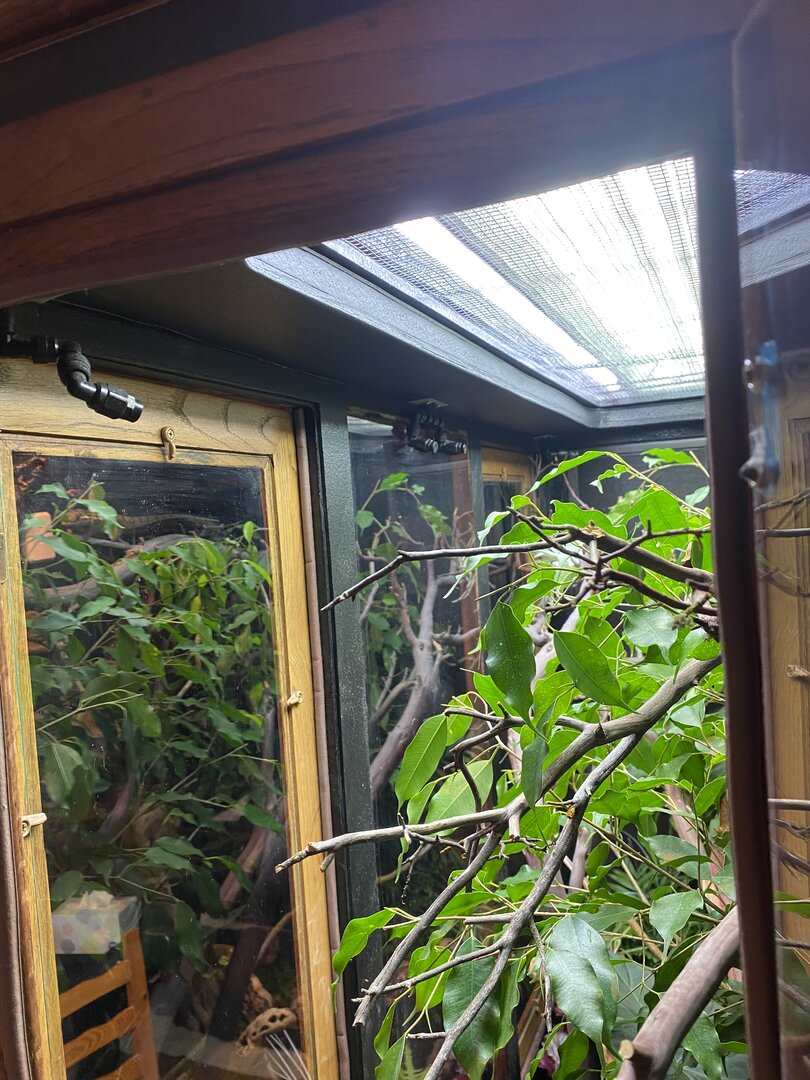

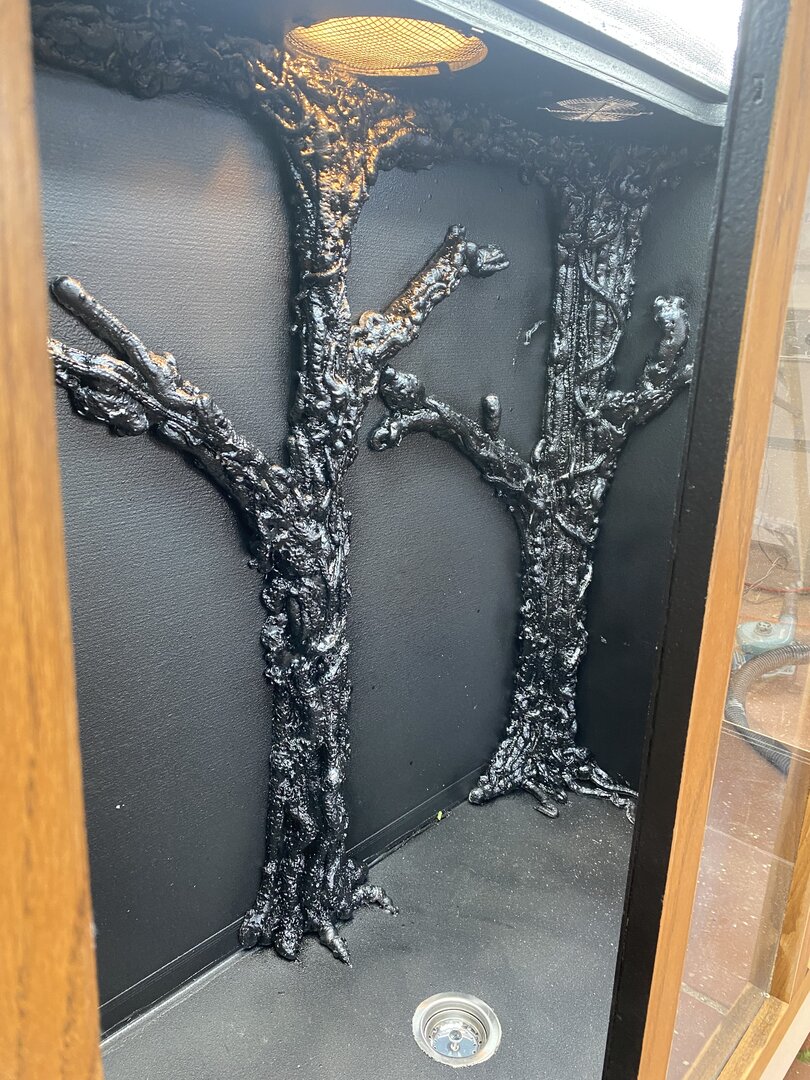

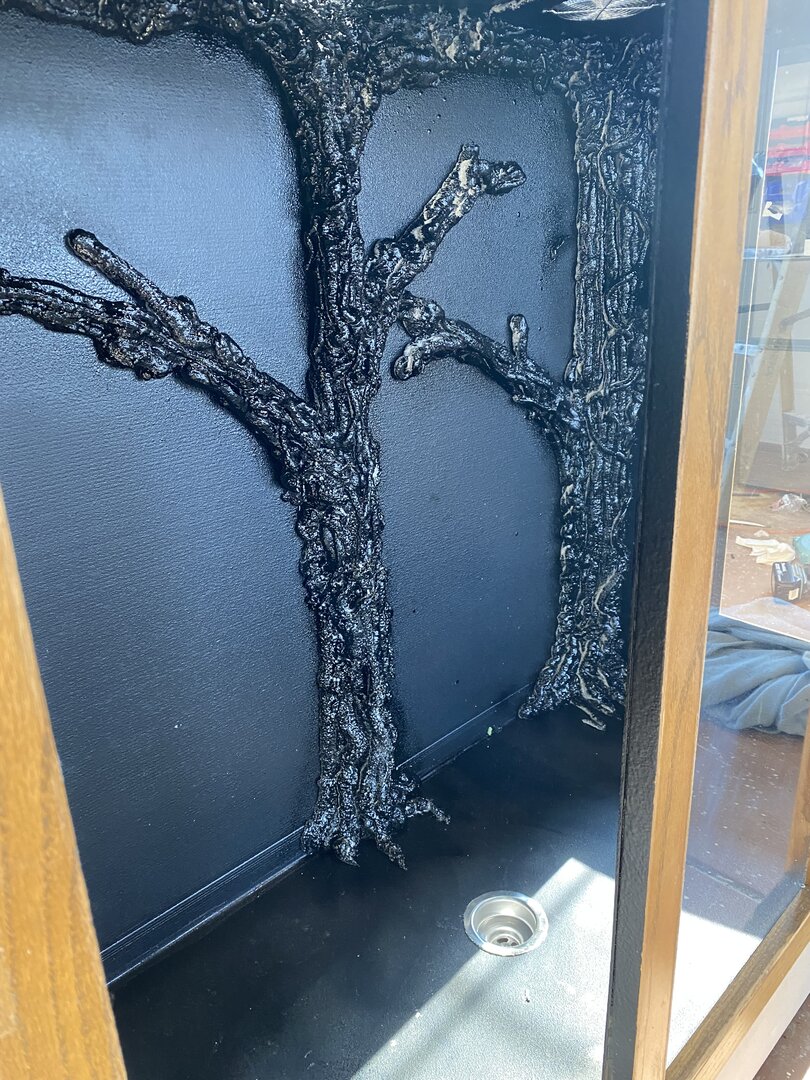

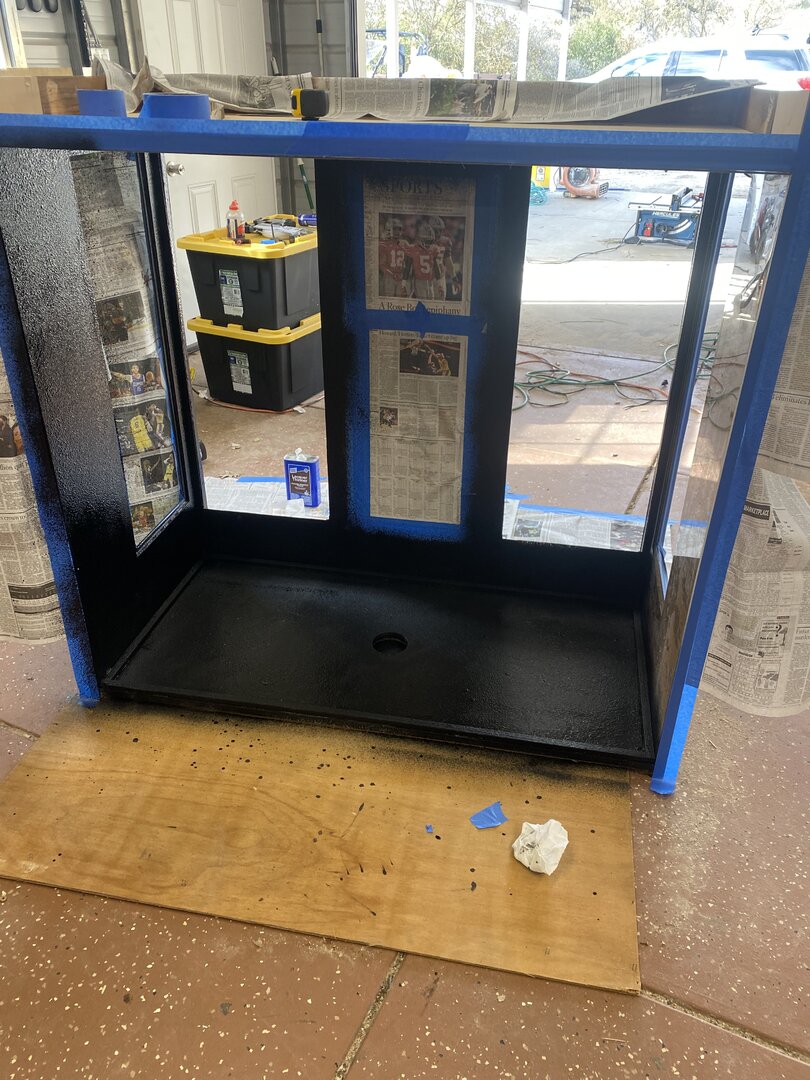

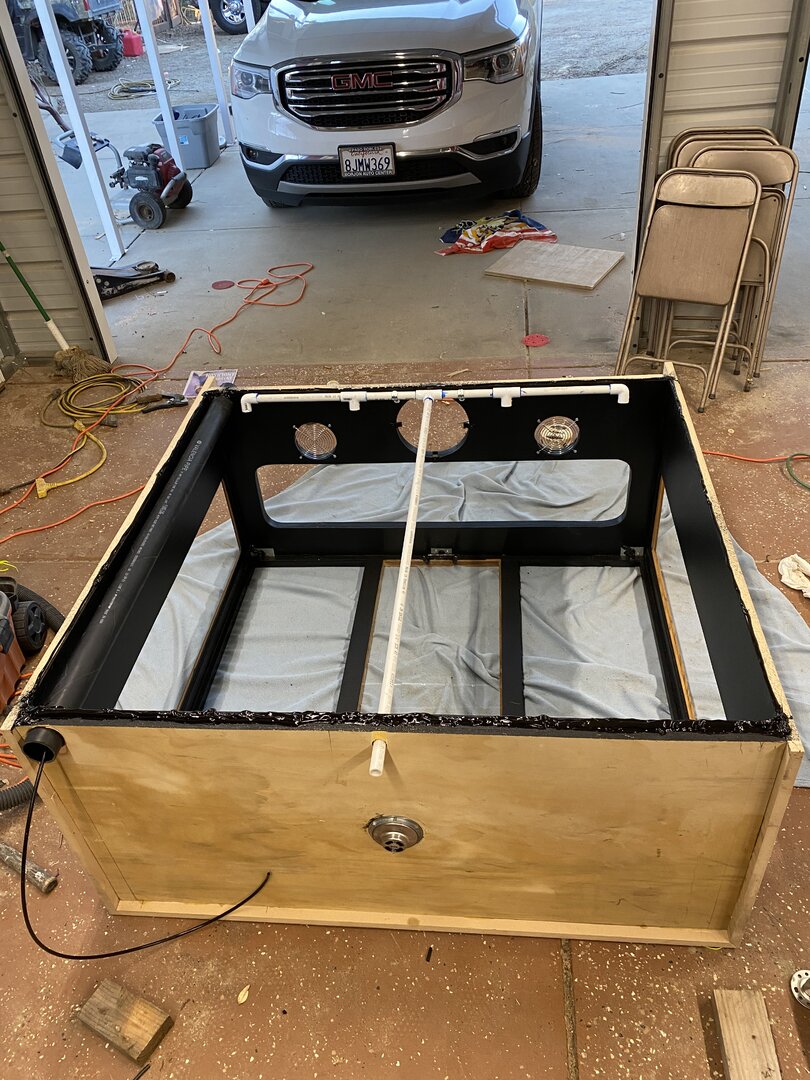

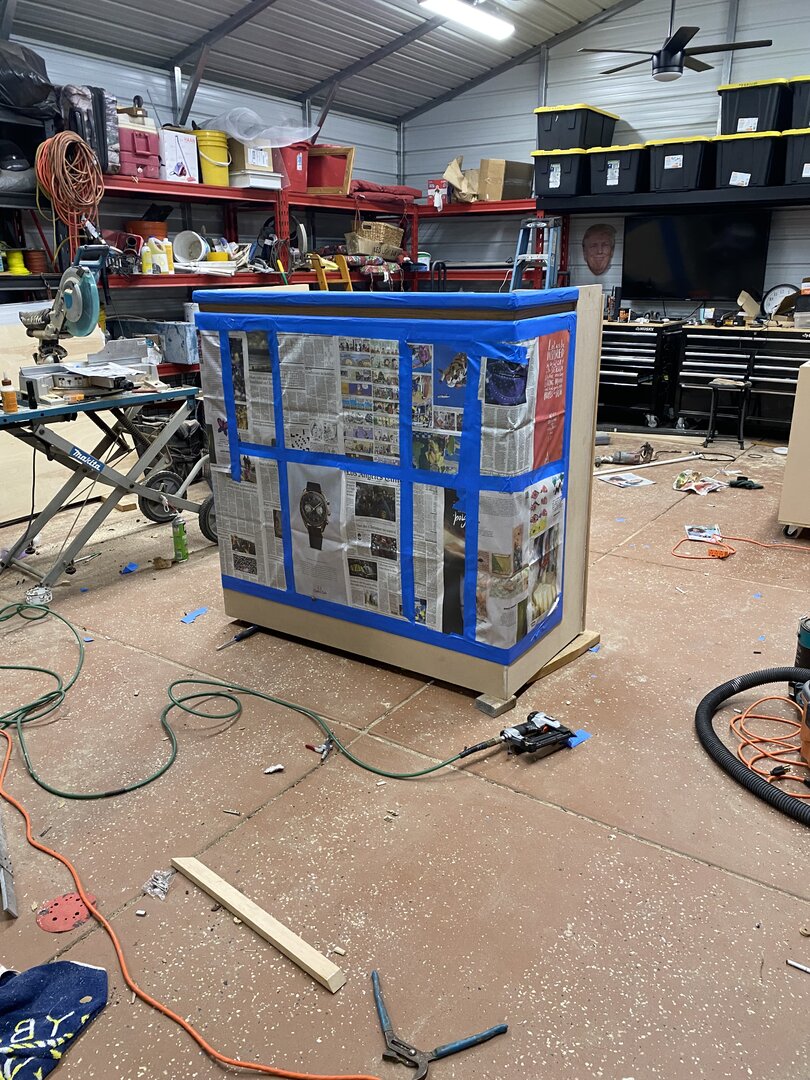

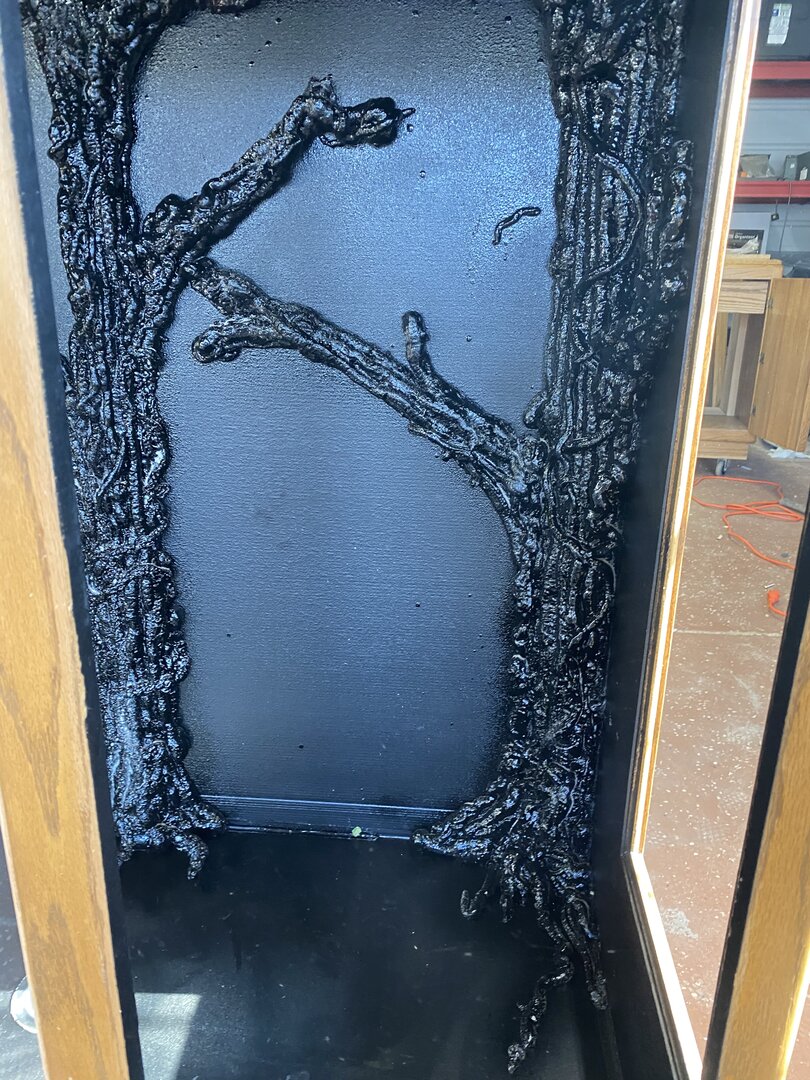

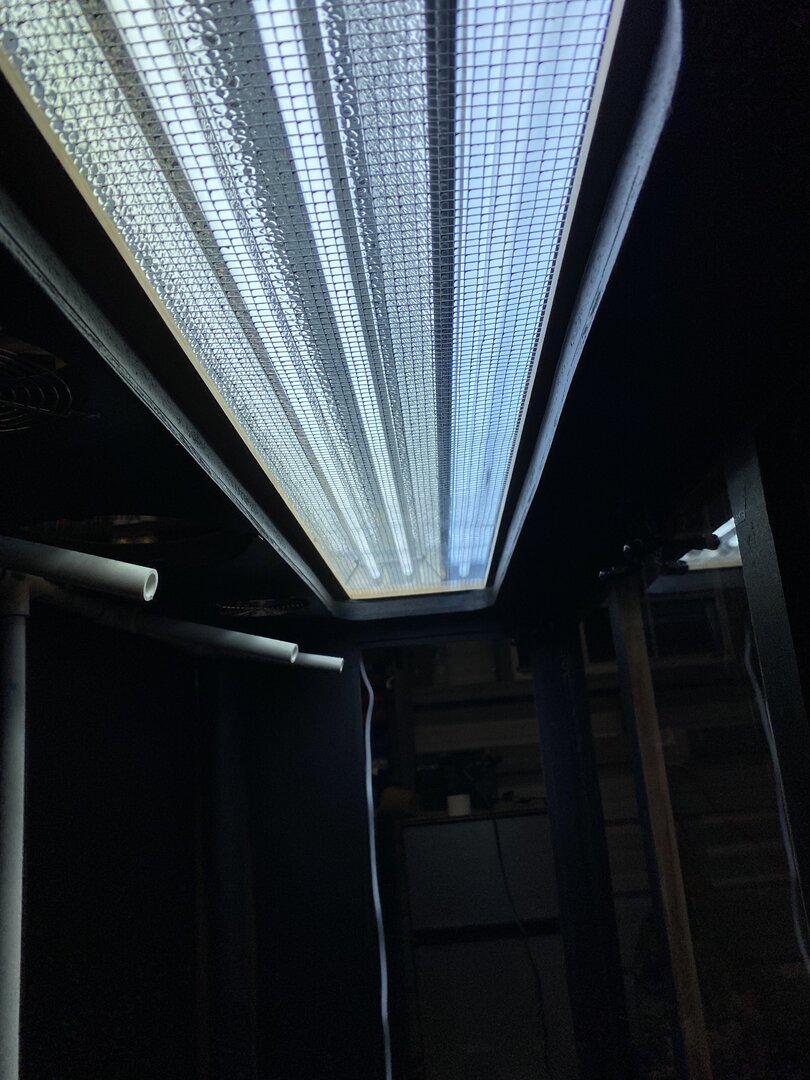

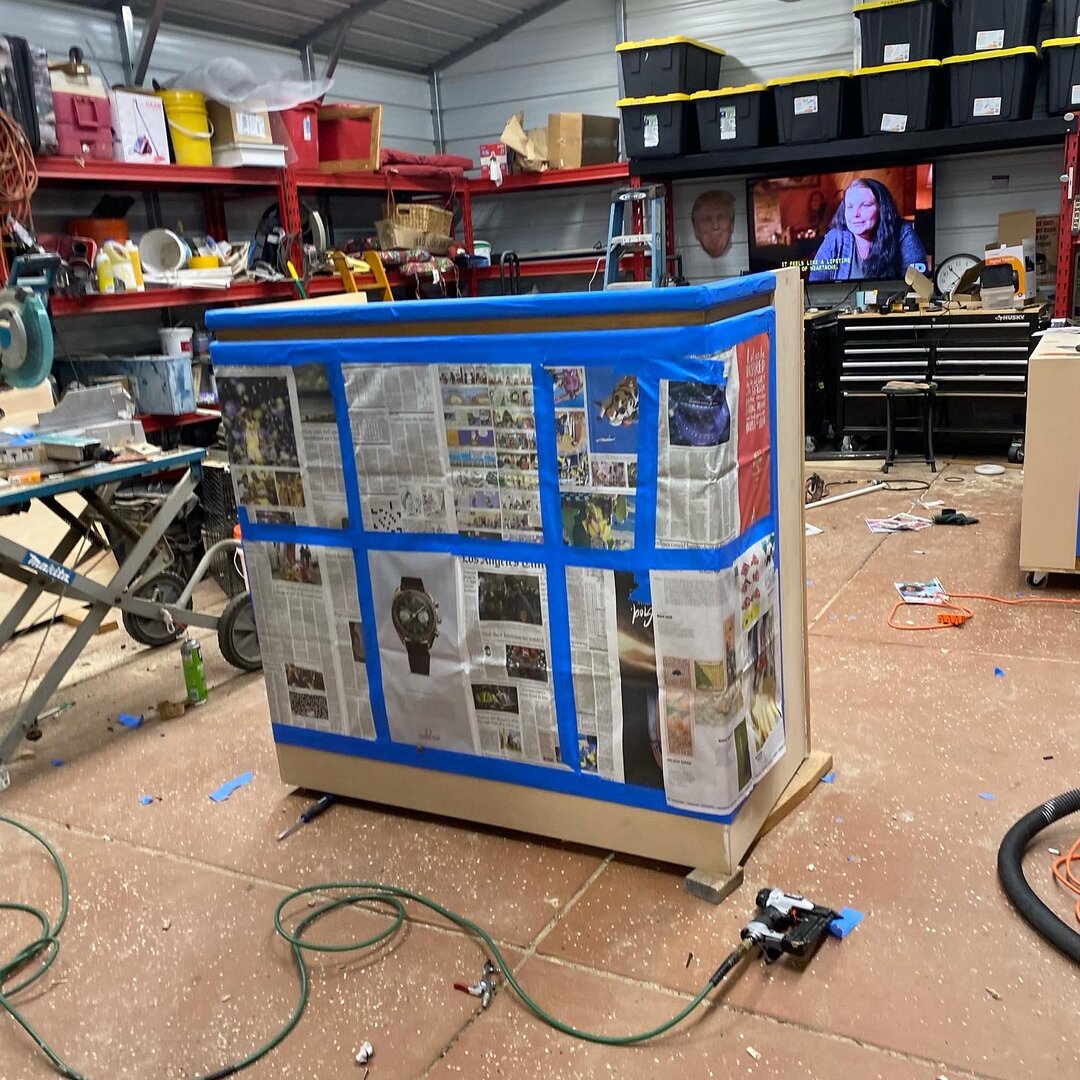

Good morning all happy Saturday !! Went ahead and made quarter inch construction clause screen for light cover, with a wood frame covered in spray rubber . Got electrical pipe 2” black ABS in the left corner and half inch PVC up the center for fogger. Silicone back on , then using spray foam made fake trees , out of spray foam and covered with Black spray rubber to cover up pipes . Fogger will come out of top . Prepped last night ready to spray today the black Exterior , Wood will get light sand and re-sprayed with mahogany tint marine grade Verathane .


Attachments

  • A70C0E69-8C76-4877-8F66-5F97DCA76D63.jpeg
    273.1 KB · Views: 24
  • A83E7D7F-6719-4360-8440-FC304B91CBDD.jpeg
    258.5 KB · Views: 24
  • BC1EBCB5-3CC2-44DD-BBF2-30612F5D05E2.jpeg
    246 KB · Views: 23
  • BE2B686B-7DB3-442F-9C00-8FDB802BAD82.jpeg
    270.9 KB · Views: 24
  • C42108A1-6535-45E2-B678-B2FE9E34E6E3.jpeg
    155.7 KB · Views: 27
  • DC98D1F0-BD36-4A88-821F-4A2C94EEDC2D.jpeg
    86 KB · Views: 26
  • CBBD6116-6400-4380-8FB9-5287773334AF.jpeg
    219.1 KB · Views: 27

crosscutts

Avid Member

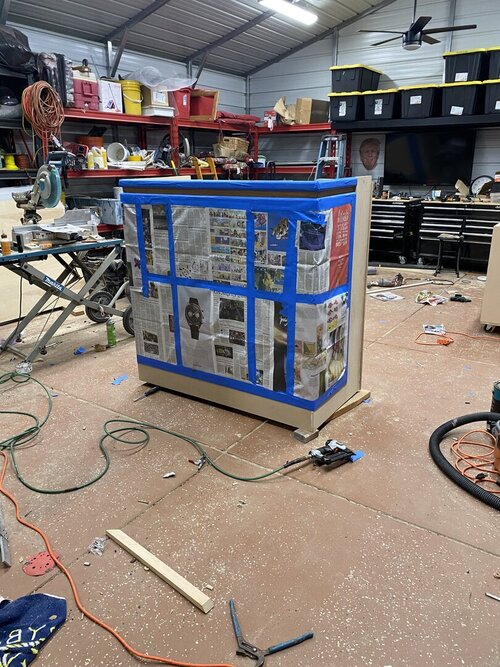

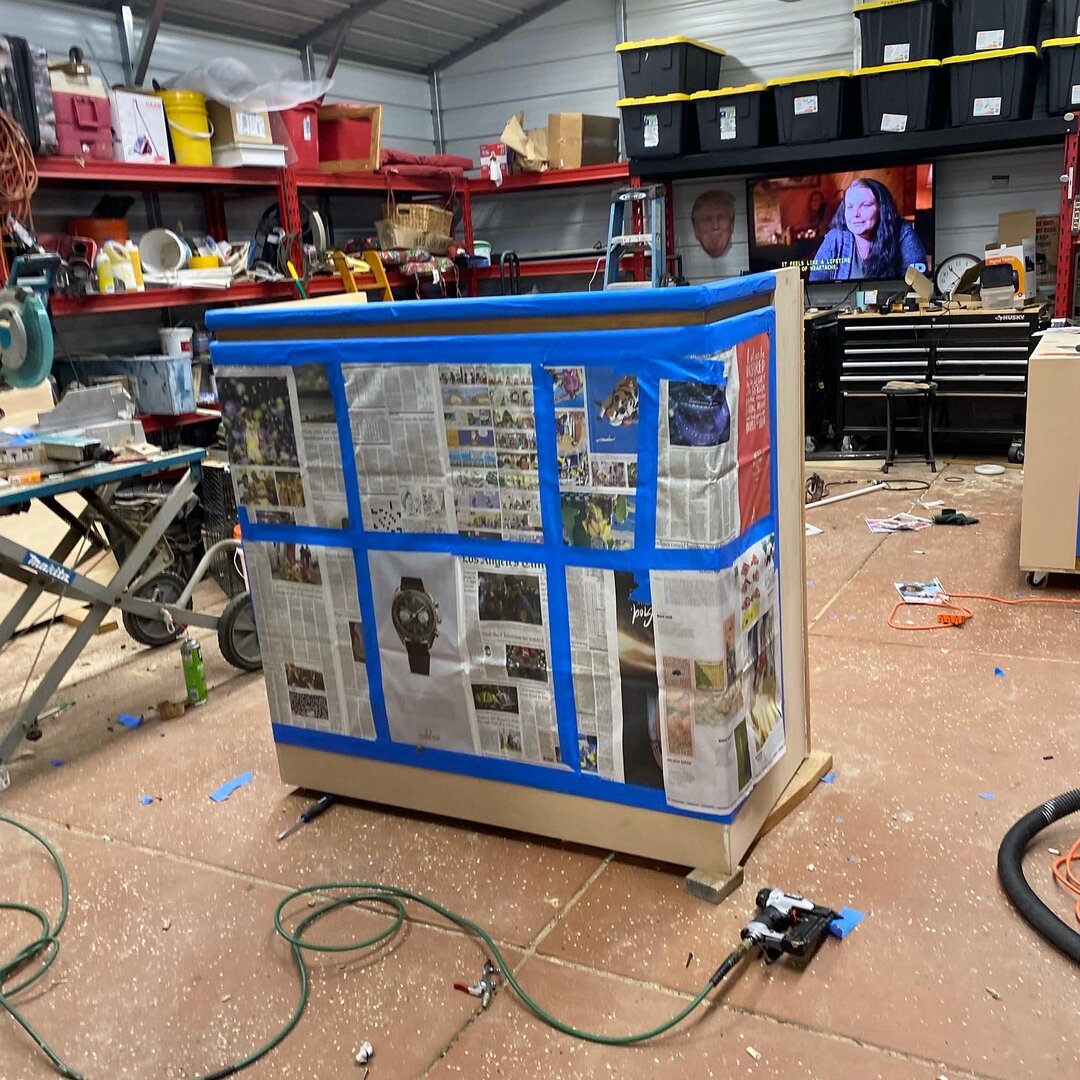

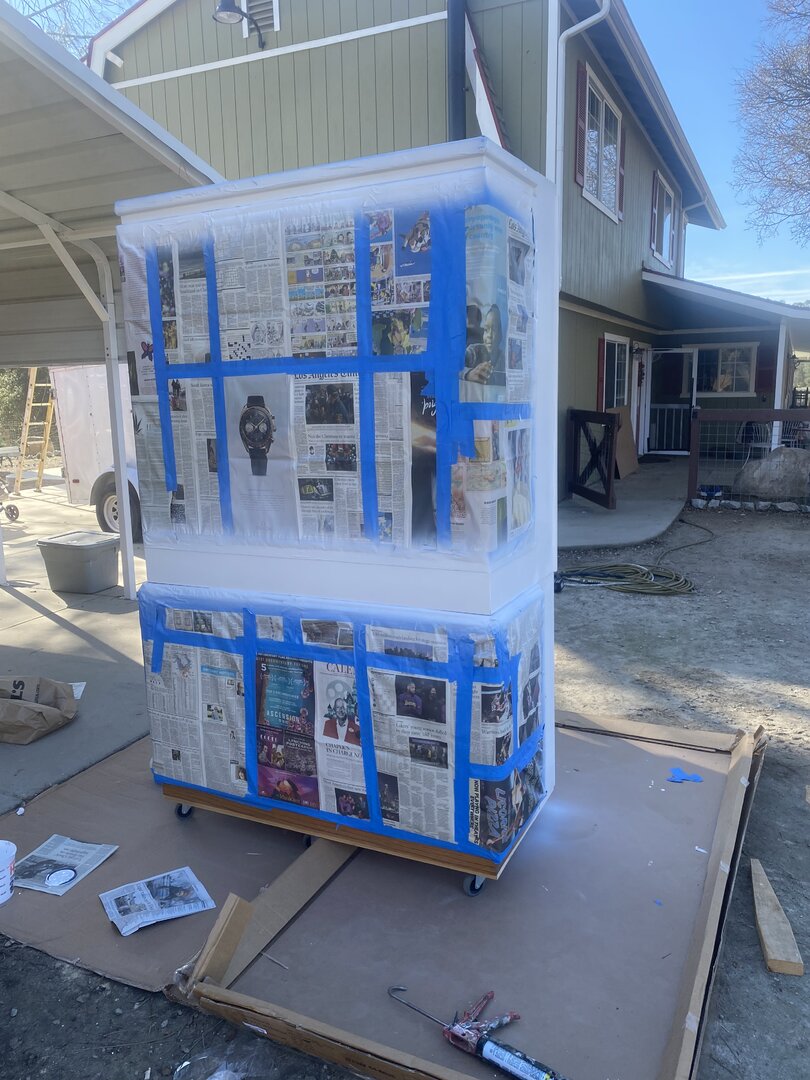

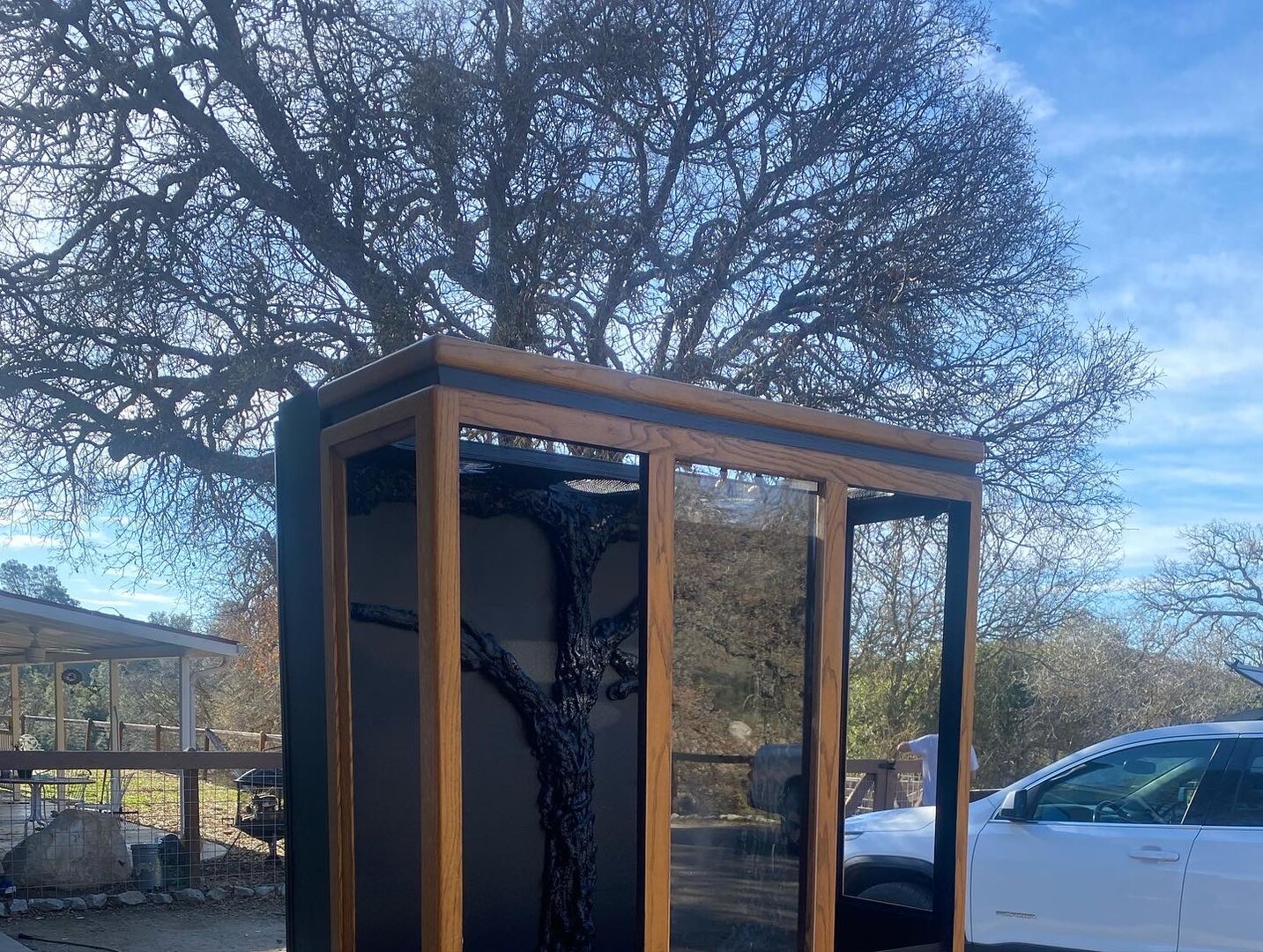

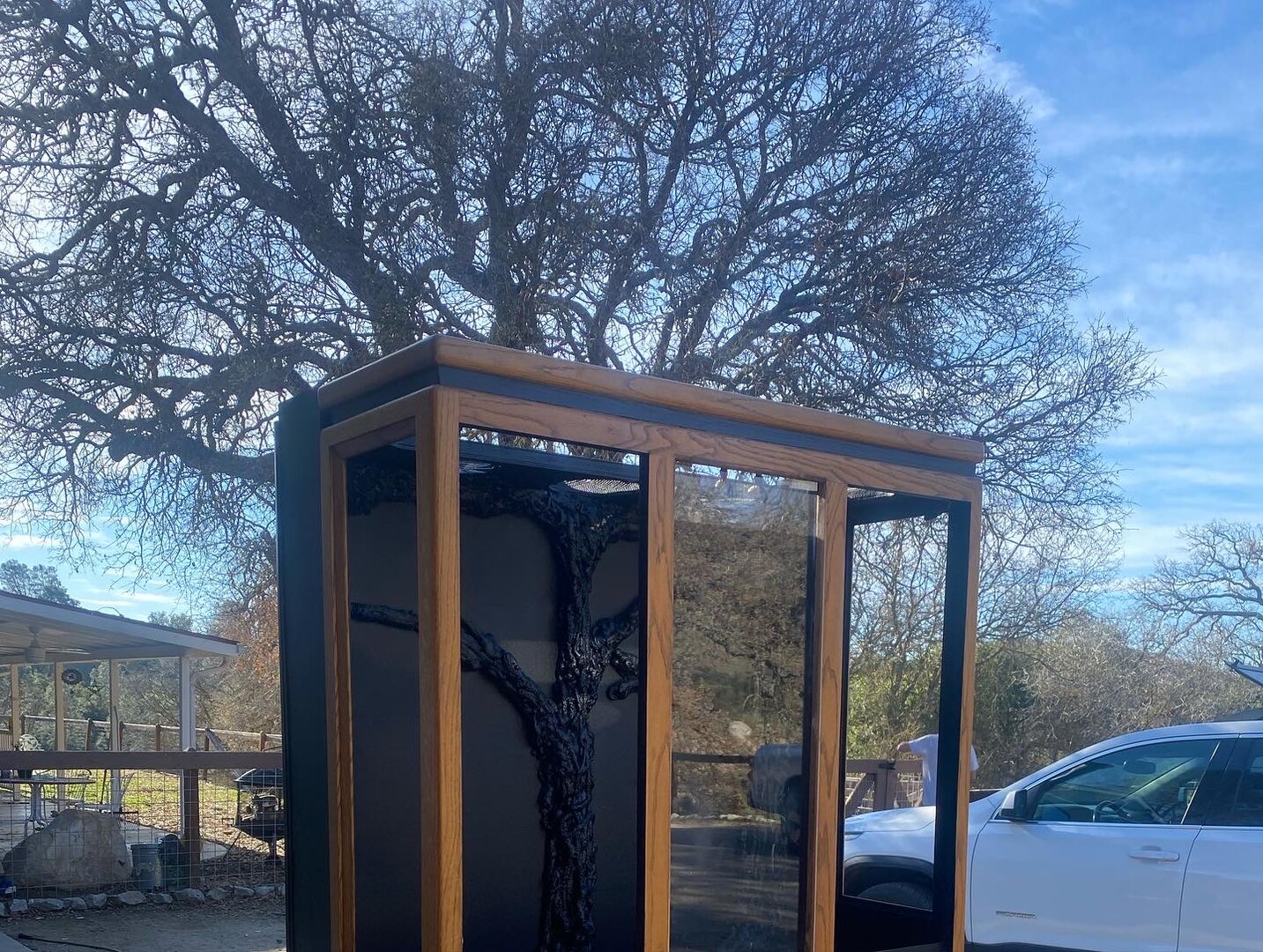

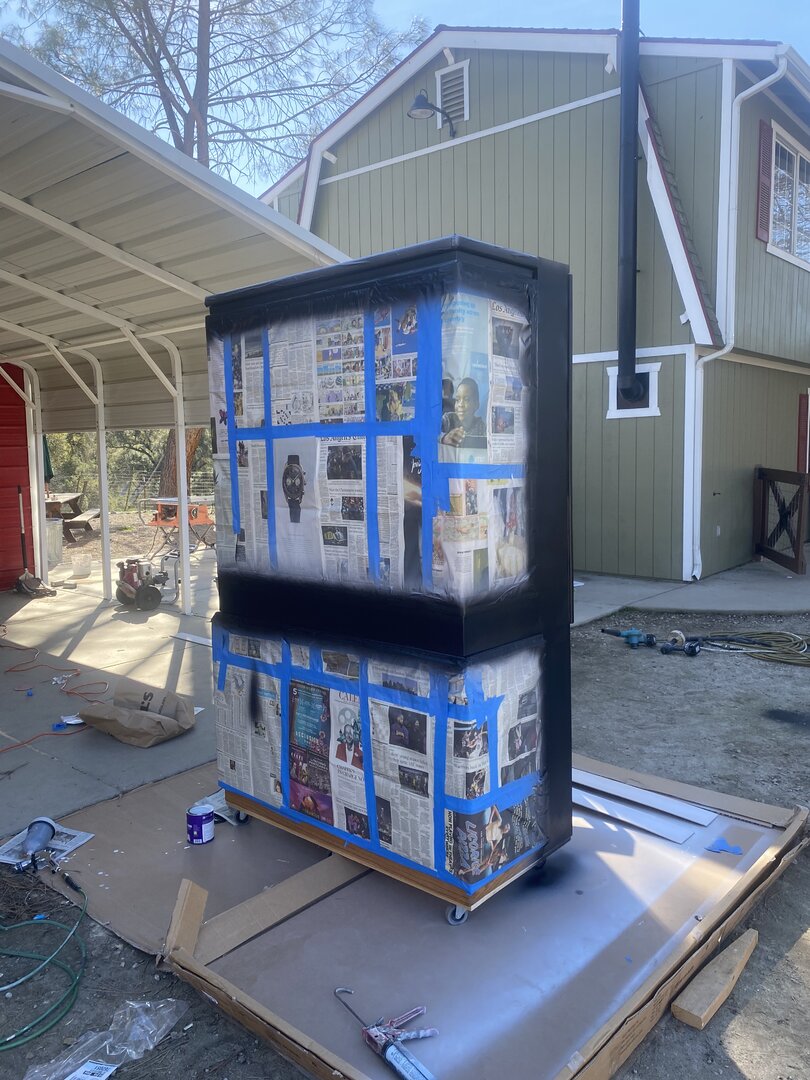

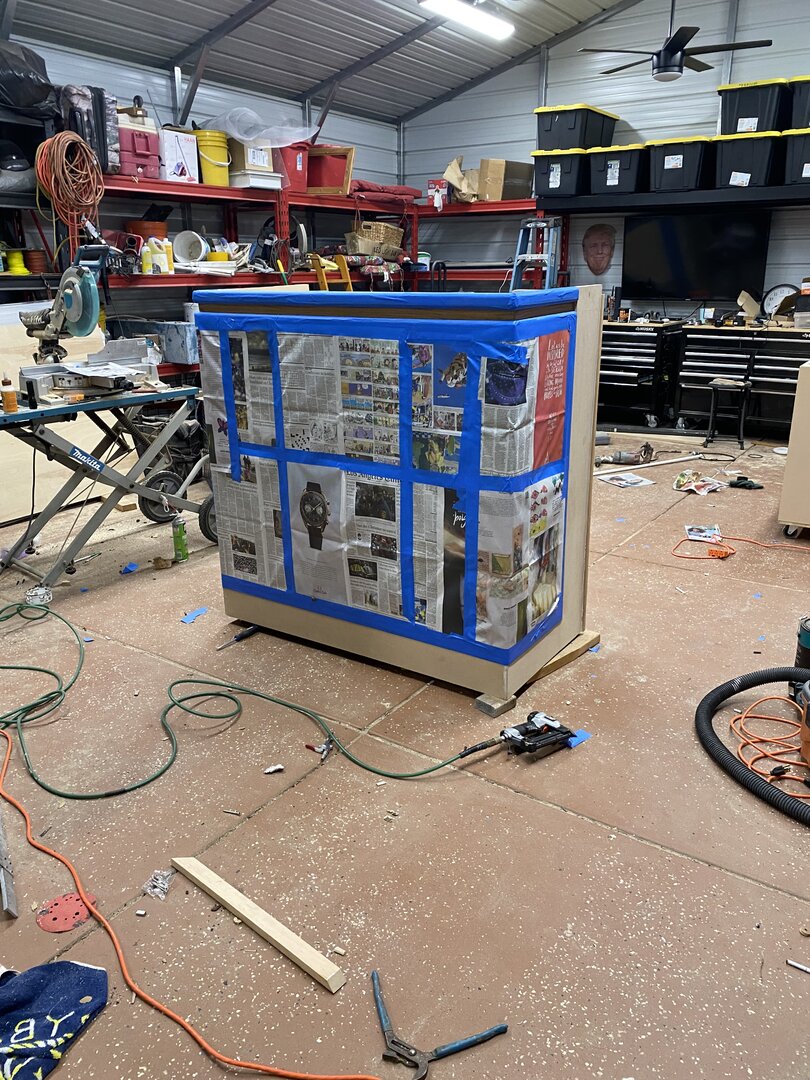

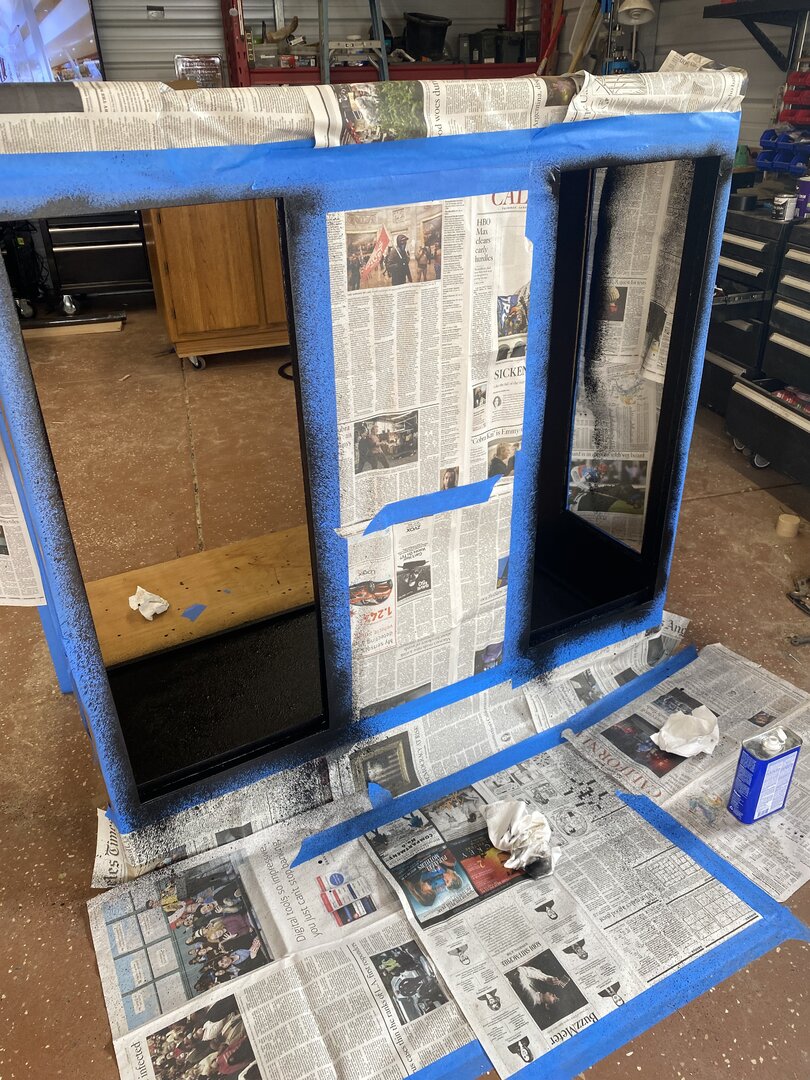

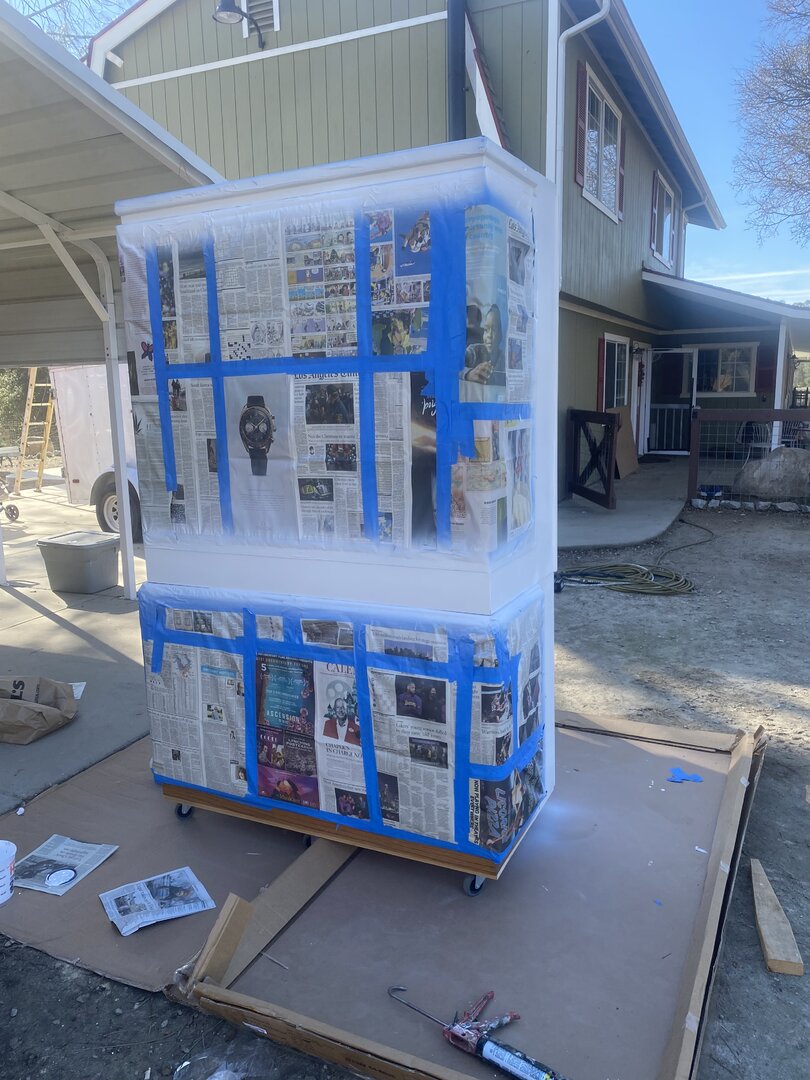

Took it outside yesterday and sprayed exterior , spending the day today sanding off the old Verathane, prepping for new stain Verathane on the outside


Attachments

  • CD697C1B-6321-4263-91D6-C8089F893100.jpeg
    502.5 KB · Views: 25
  • 25090A91-8CC7-4C24-8BAB-533F155CC706.jpeg
    192.9 KB · Views: 27
  • 7C2AA14C-03EA-405A-8B7D-818C214360B2.jpeg
    175.9 KB · Views: 27
  • A4EC0437-8899-4B3D-9A33-FEC68F8BFA3A.jpeg
    273.1 KB · Views: 27
  • A29D0755-7785-4FE8-91AF-F238114AED89.jpeg
    275.2 KB · Views: 27

crosscutts

Avid Member

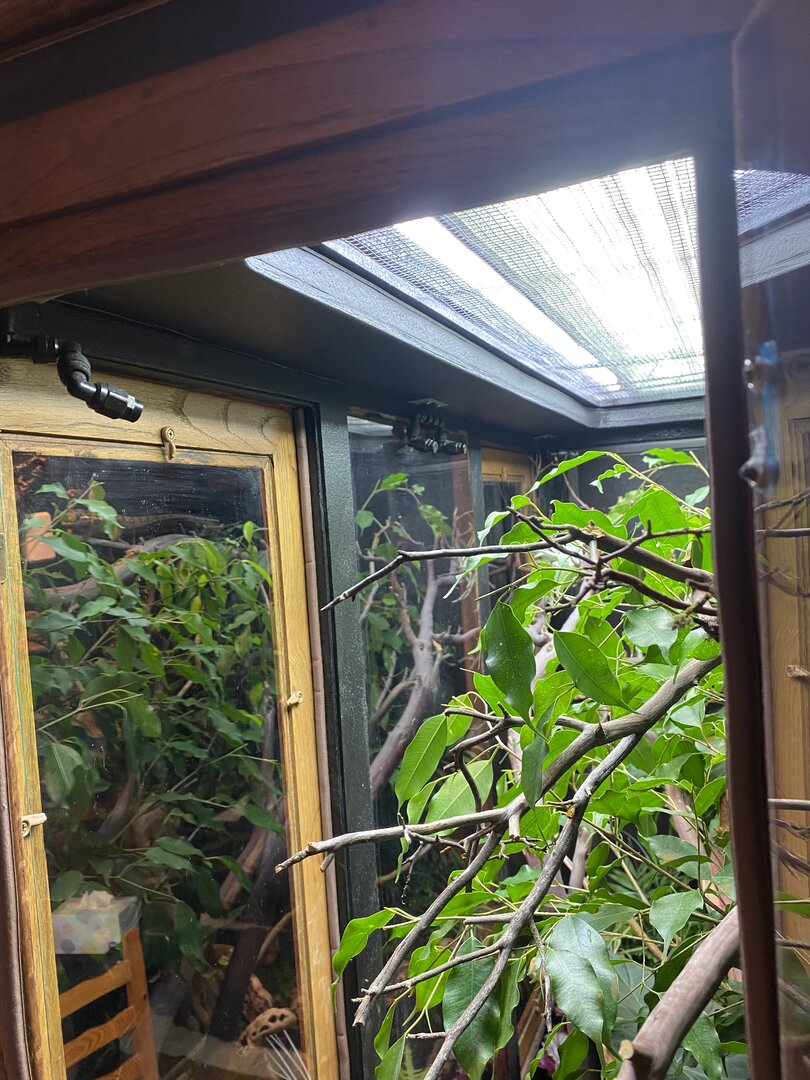

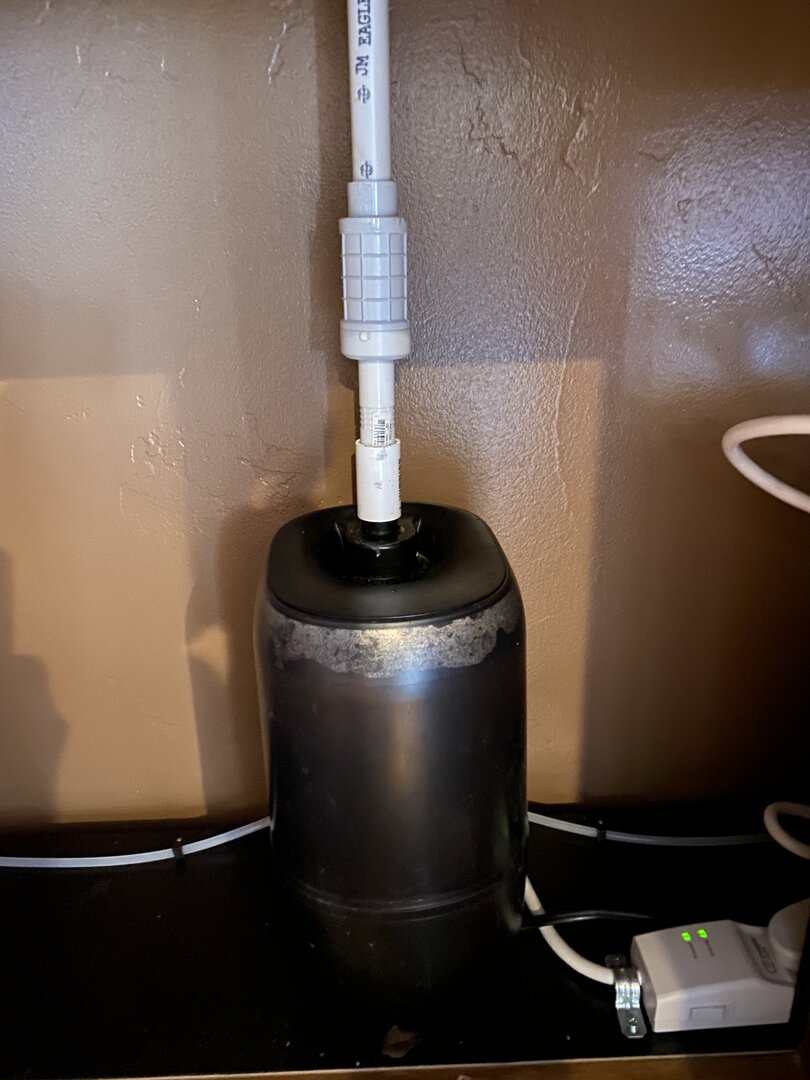

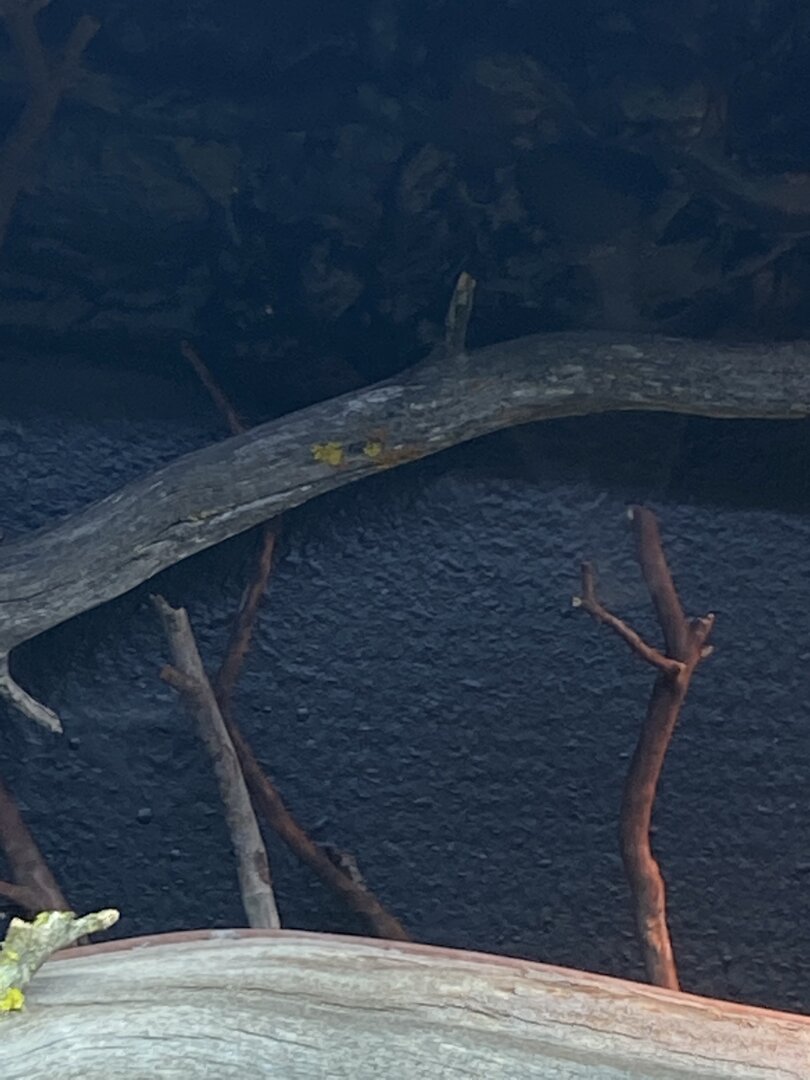

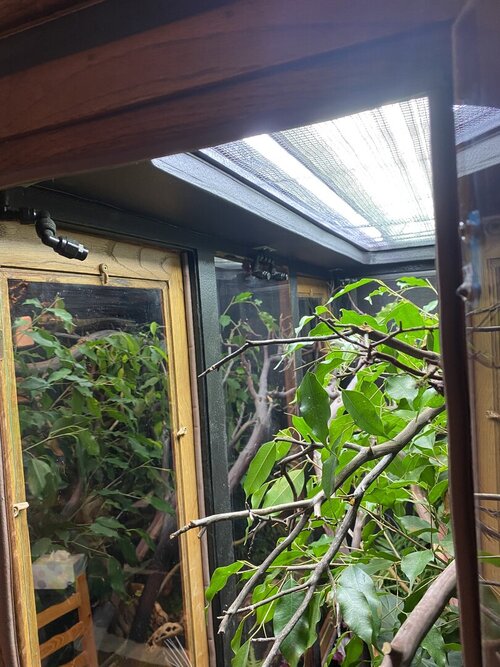

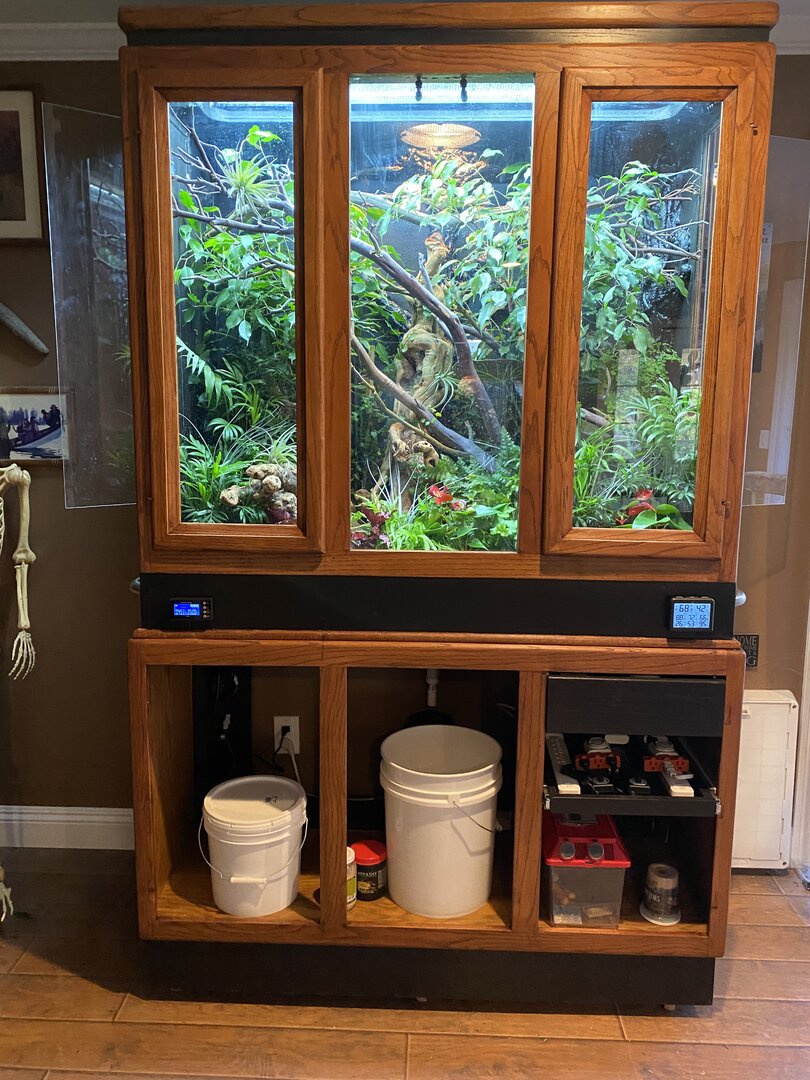

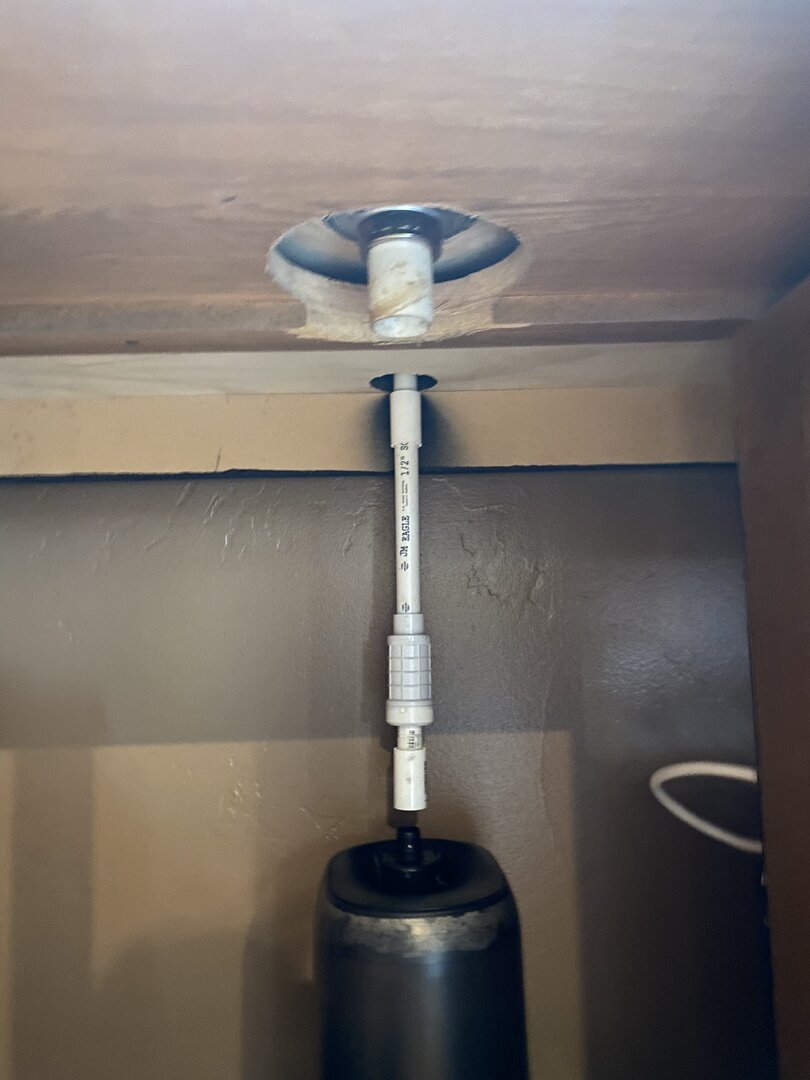

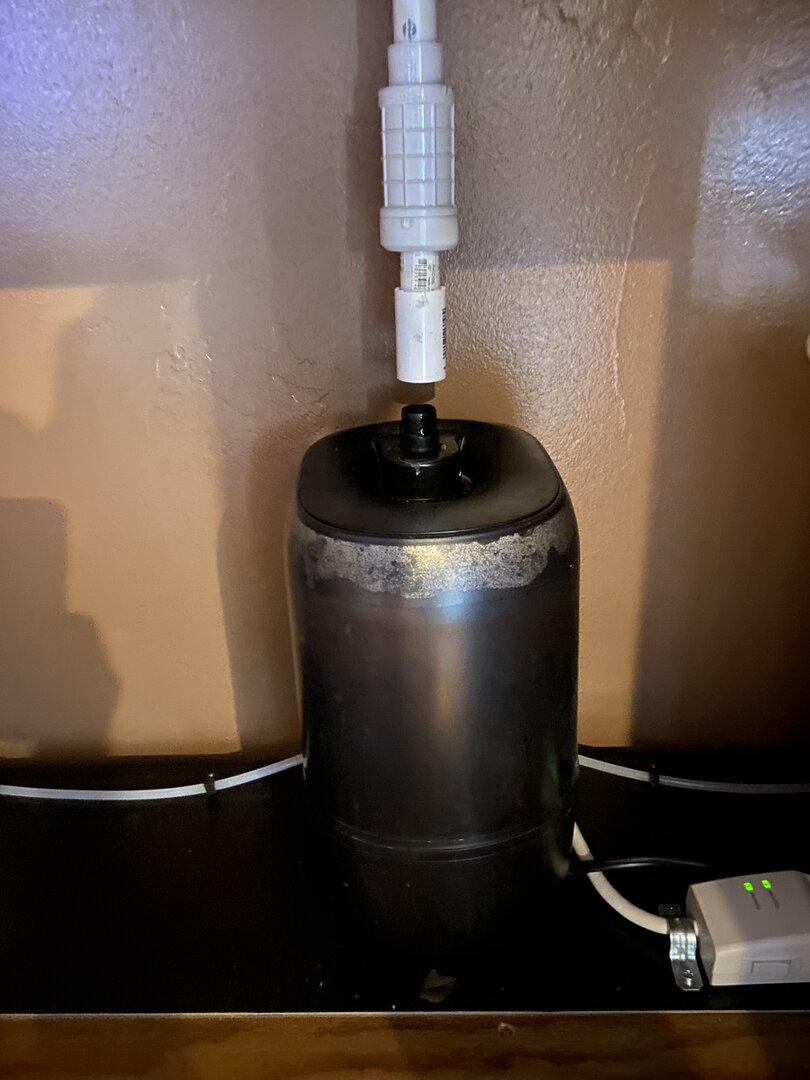

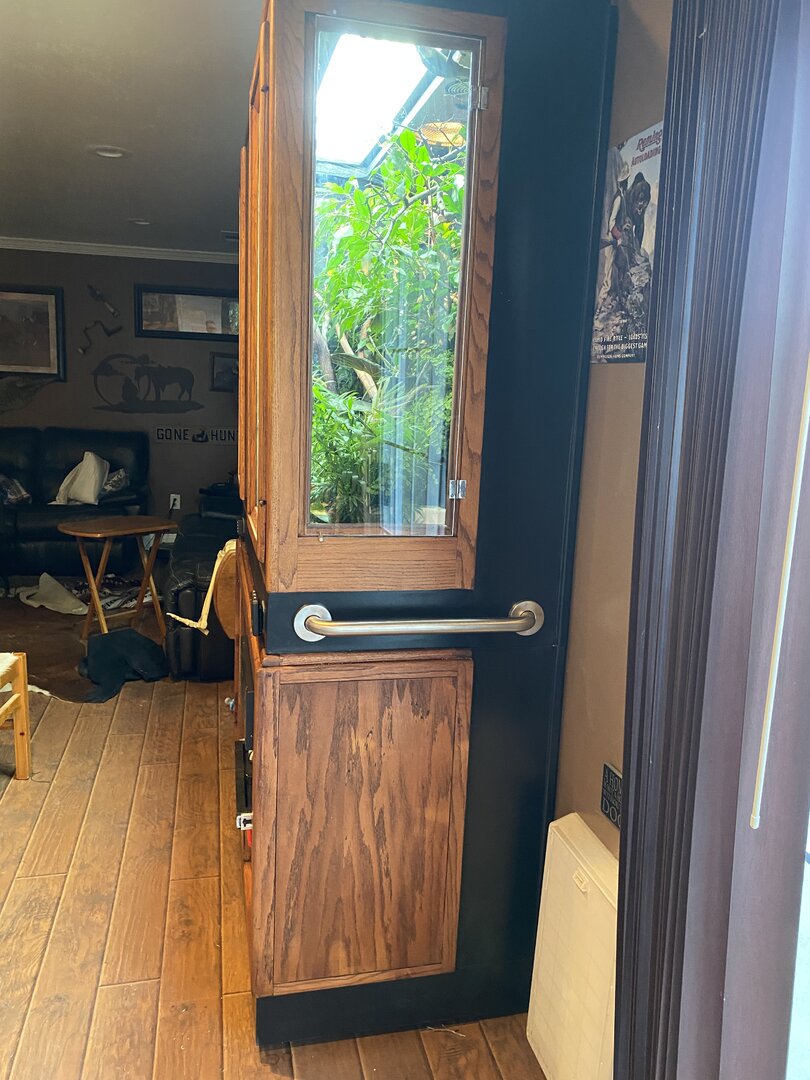

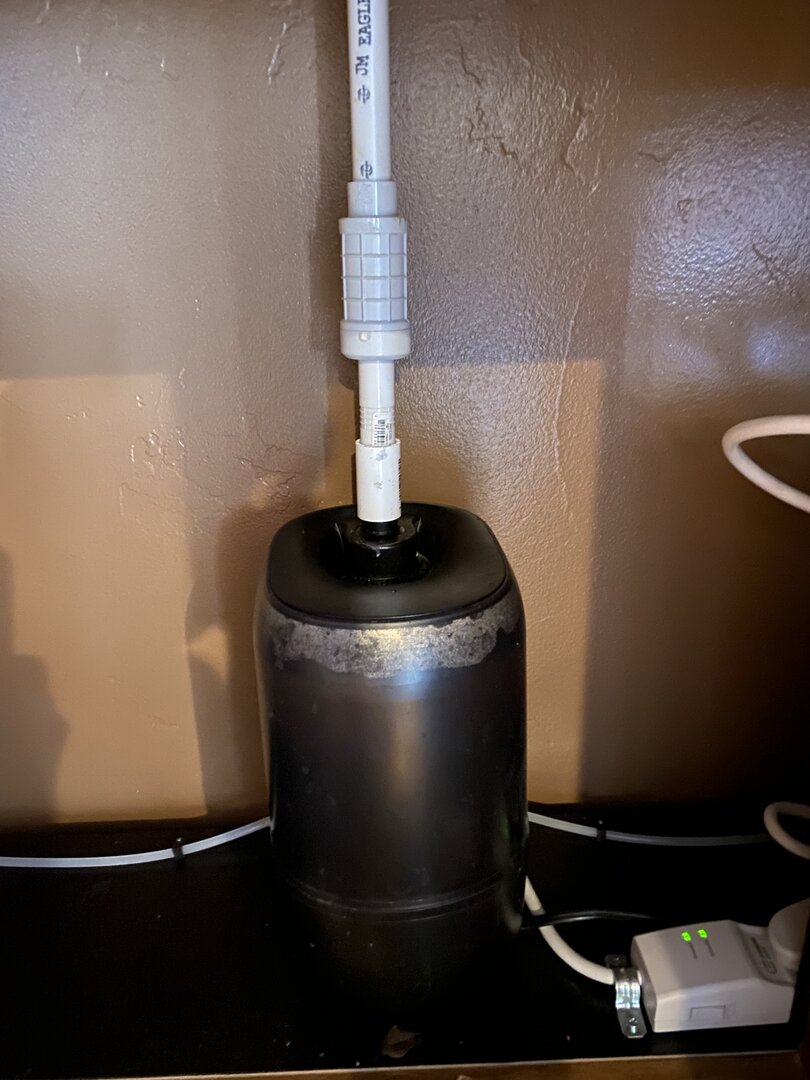

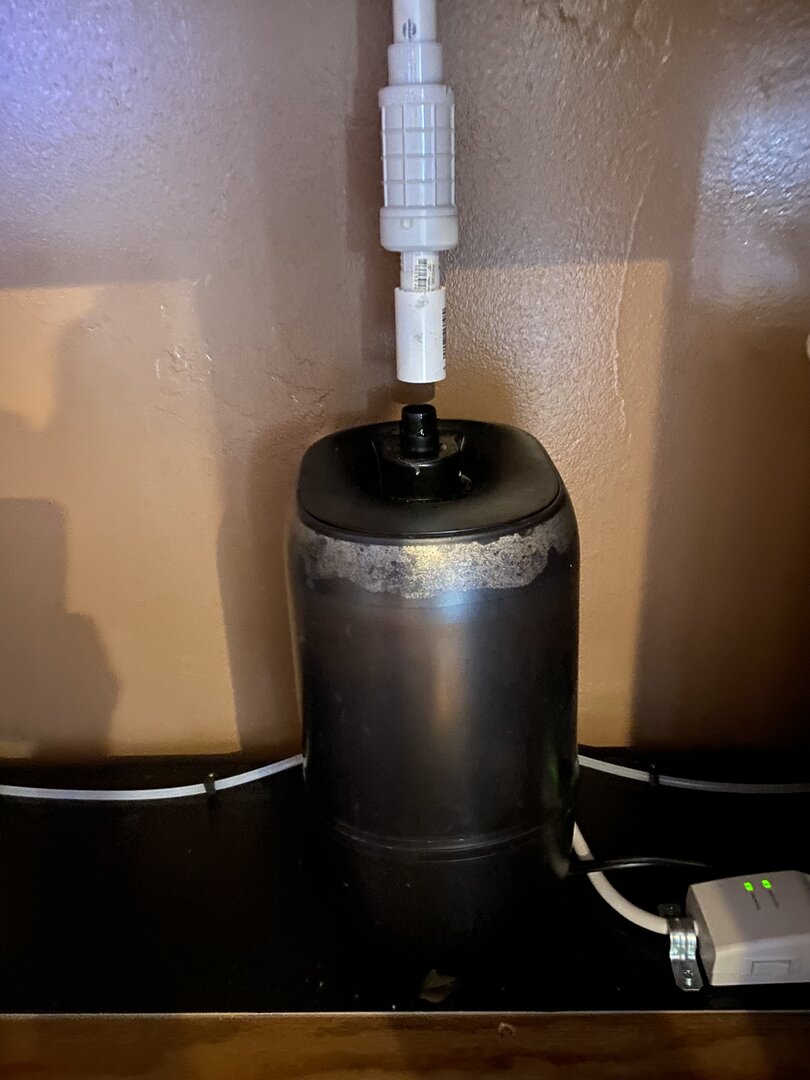

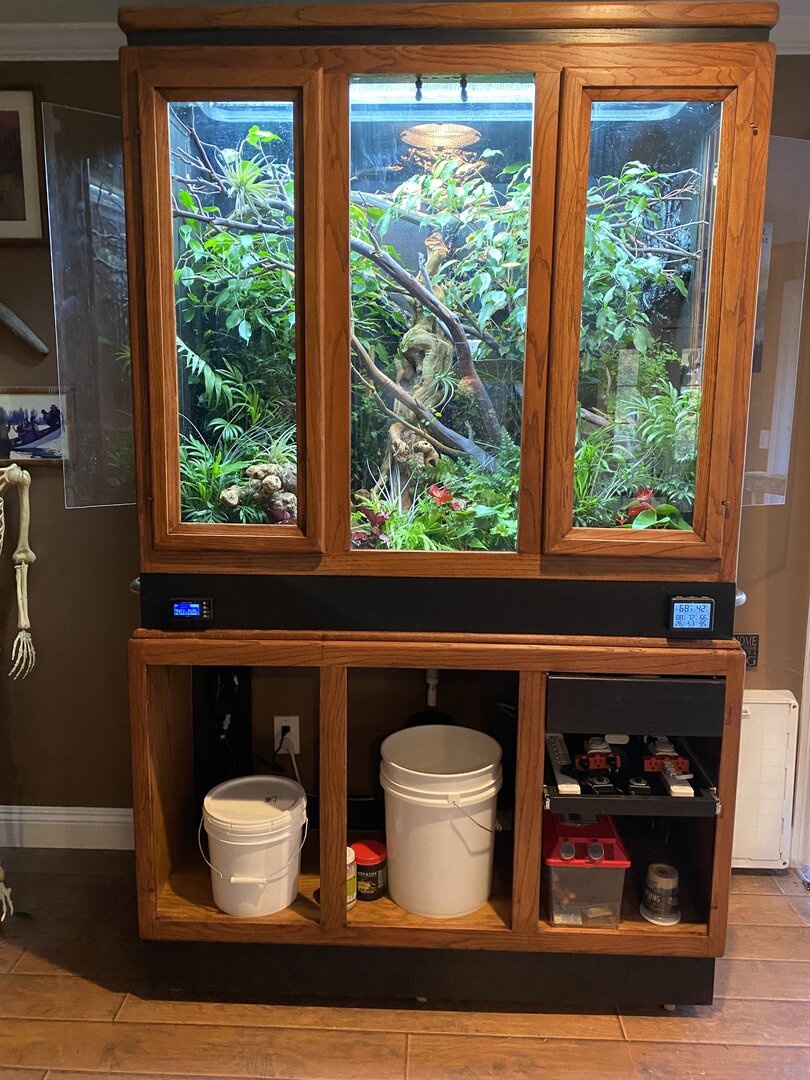

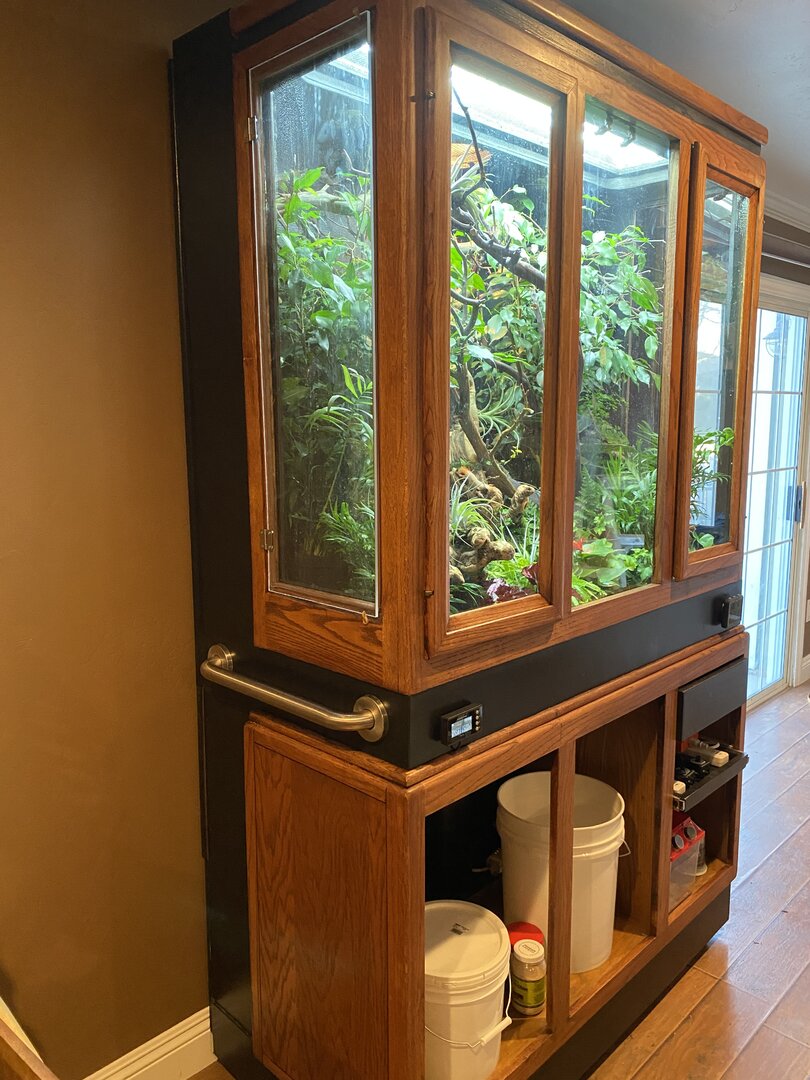

Well just a few last finishing touches , spent the weekend tweaking mist king attaching doors putting weatherstripping making screens for two outside plexi doors , added a slip fitting over humidifier so it’s easily removed , and then entered the plants and some Wildcut manzanita off my property .. all plants are in pots so they’re easily removed , so far everything is working as expected . The well went way past my budget I’m very happy with my resultS


Attachments

  • 7AAC782D-D8F4-4AD7-9AF2-DD35BE67EB8A.jpeg
    302.4 KB · Views: 32
  • 32E1DA1F-2321-461C-AE81-3FC3C5819DEB.jpeg
    231.3 KB · Views: 30
  • 2B02DC6C-E937-47C8-BA7B-47A902469280.jpeg
    116.6 KB · Views: 32
  • F5B6C964-D925-4EE2-99DC-4469791F1880.jpeg
    104.6 KB · Views: 31
  • 38E1B545-B0C7-42D9-BE51-DE2BFE7BE942.jpeg
    146.1 KB · Views: 31
  • 4FB48142-1FF6-4130-8CD4-692727C2FA1F.jpeg
    185.4 KB · Views: 30
  • E6D33FDA-2E04-4D01-BB84-9AF6500B4F3C.jpeg
    246.5 KB · Views: 33
  • AC6E2276-20A2-4793-BED9-5A8FB1900C59.jpeg
    214.2 KB · Views: 29
  • 964095D1-7B15-4008-8070-A884DAE07754.jpeg
    84.5 KB · Views: 30
  • 411AB3B6-D3AB-4380-90A8-C8C3F7043FEC.jpeg
    209.2 KB · Views: 30

crosscutts

Avid Member

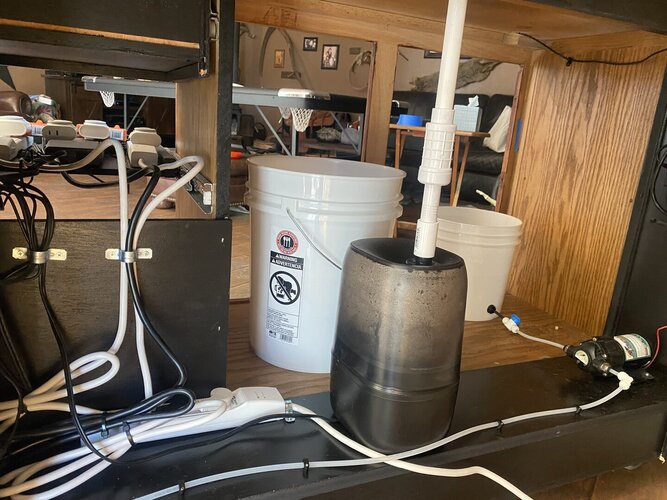

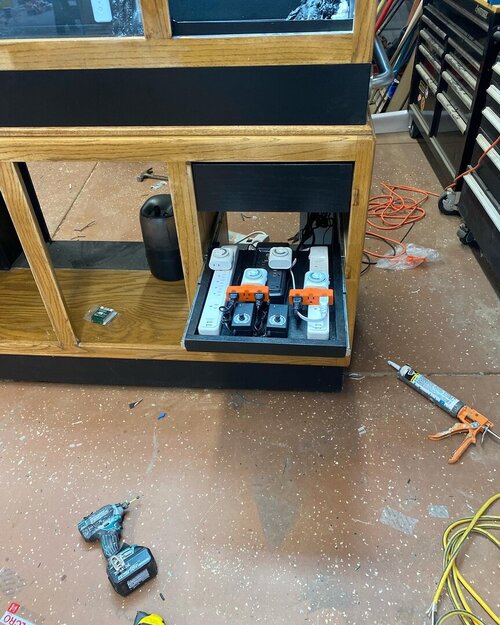

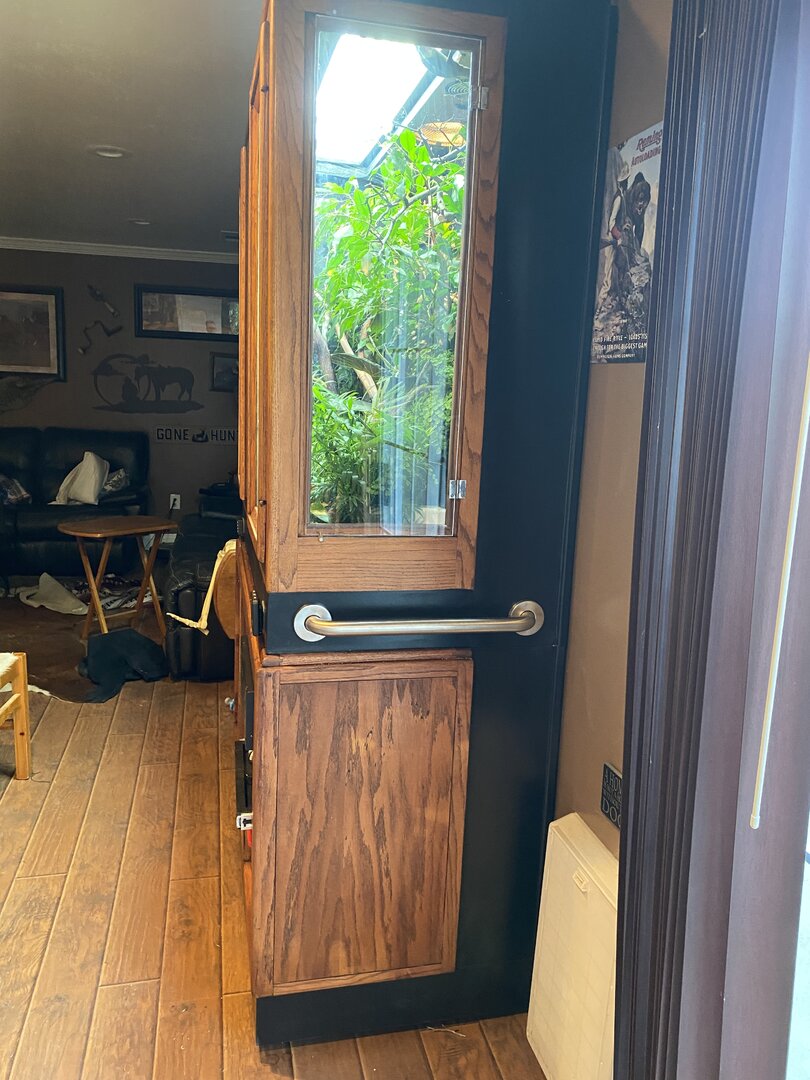

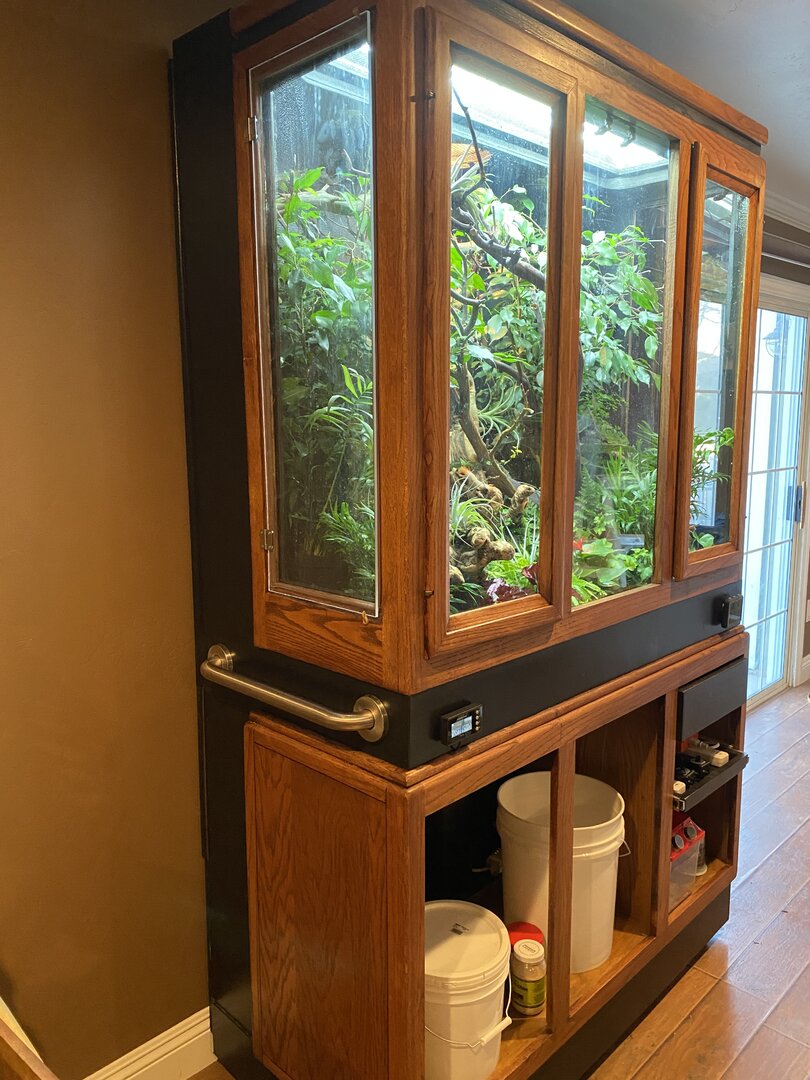

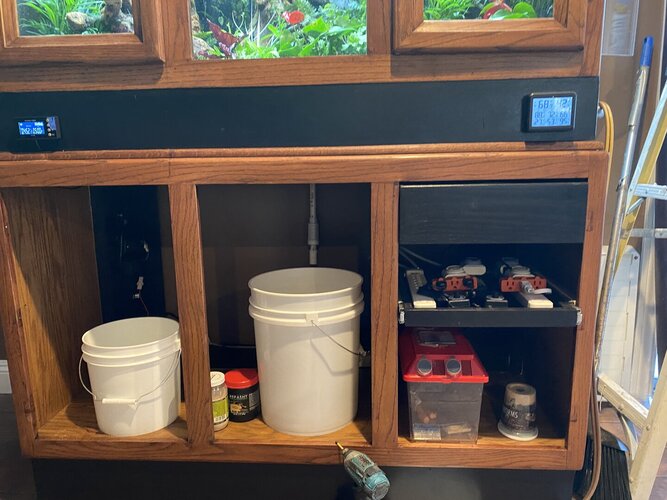

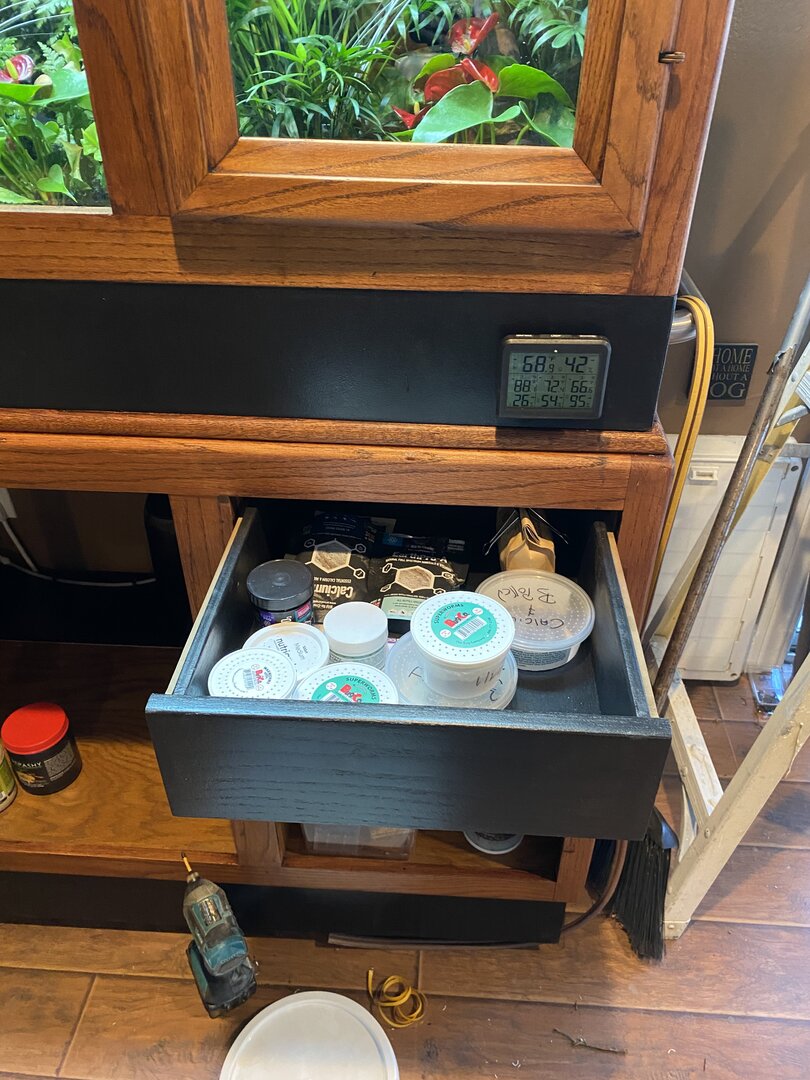

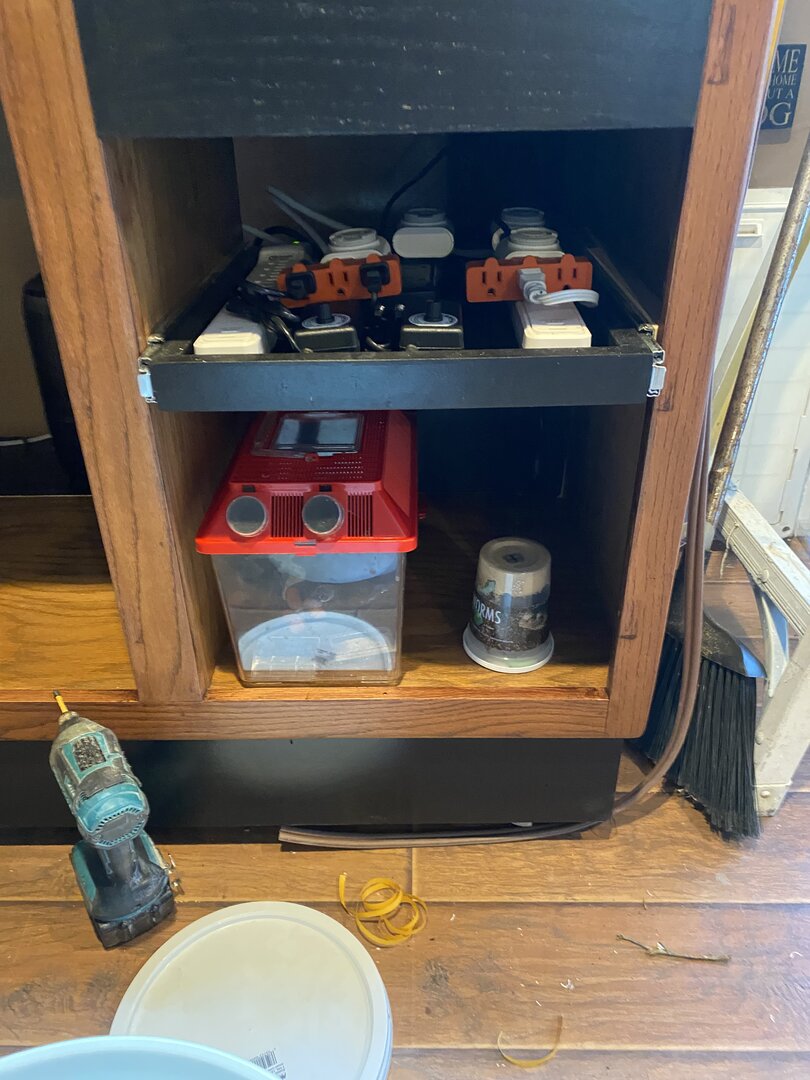

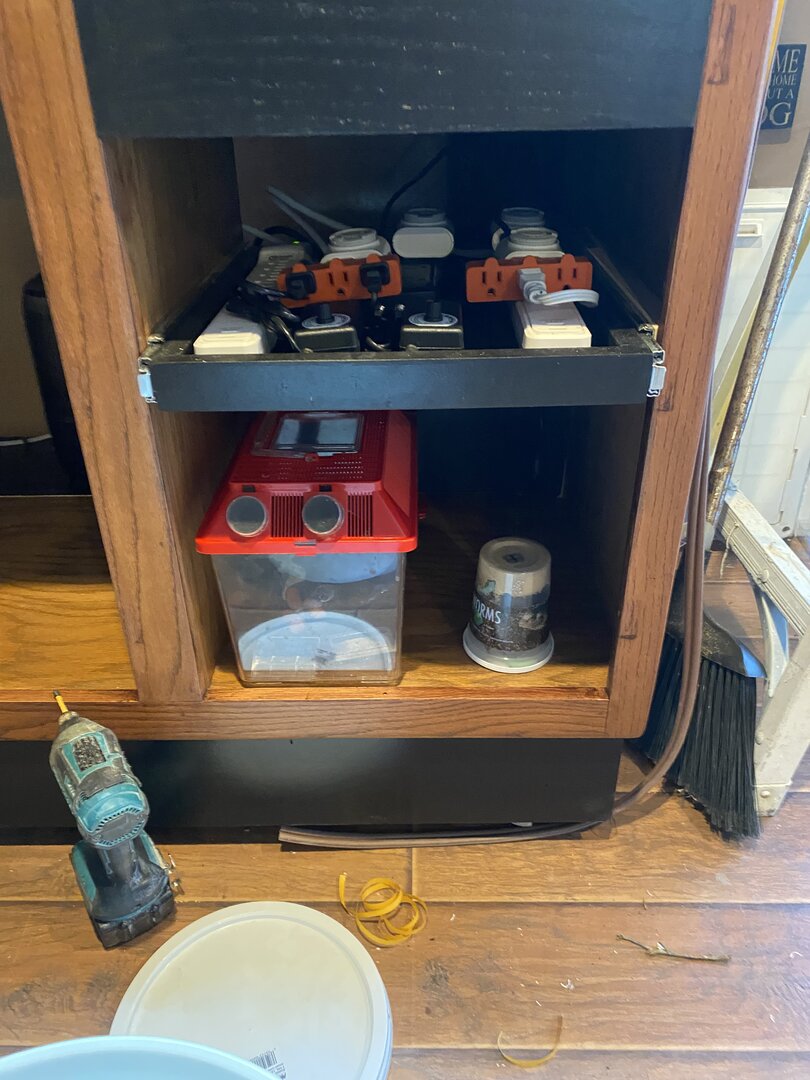

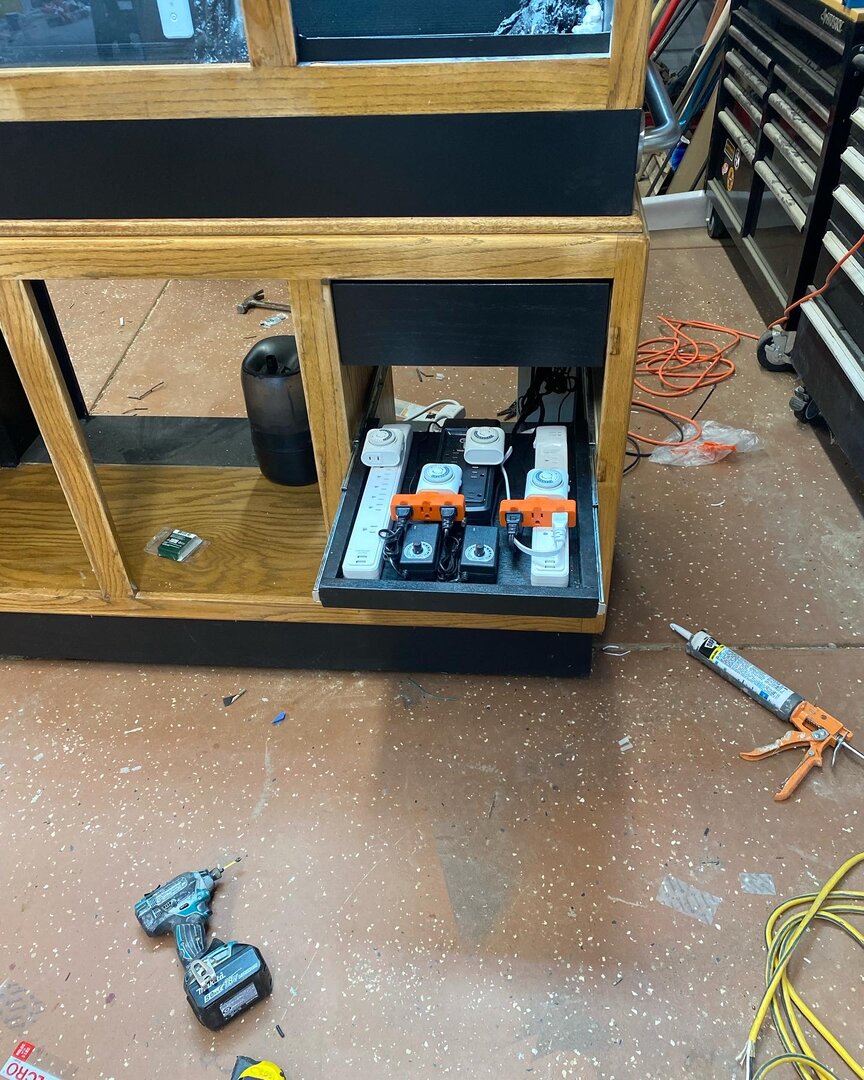

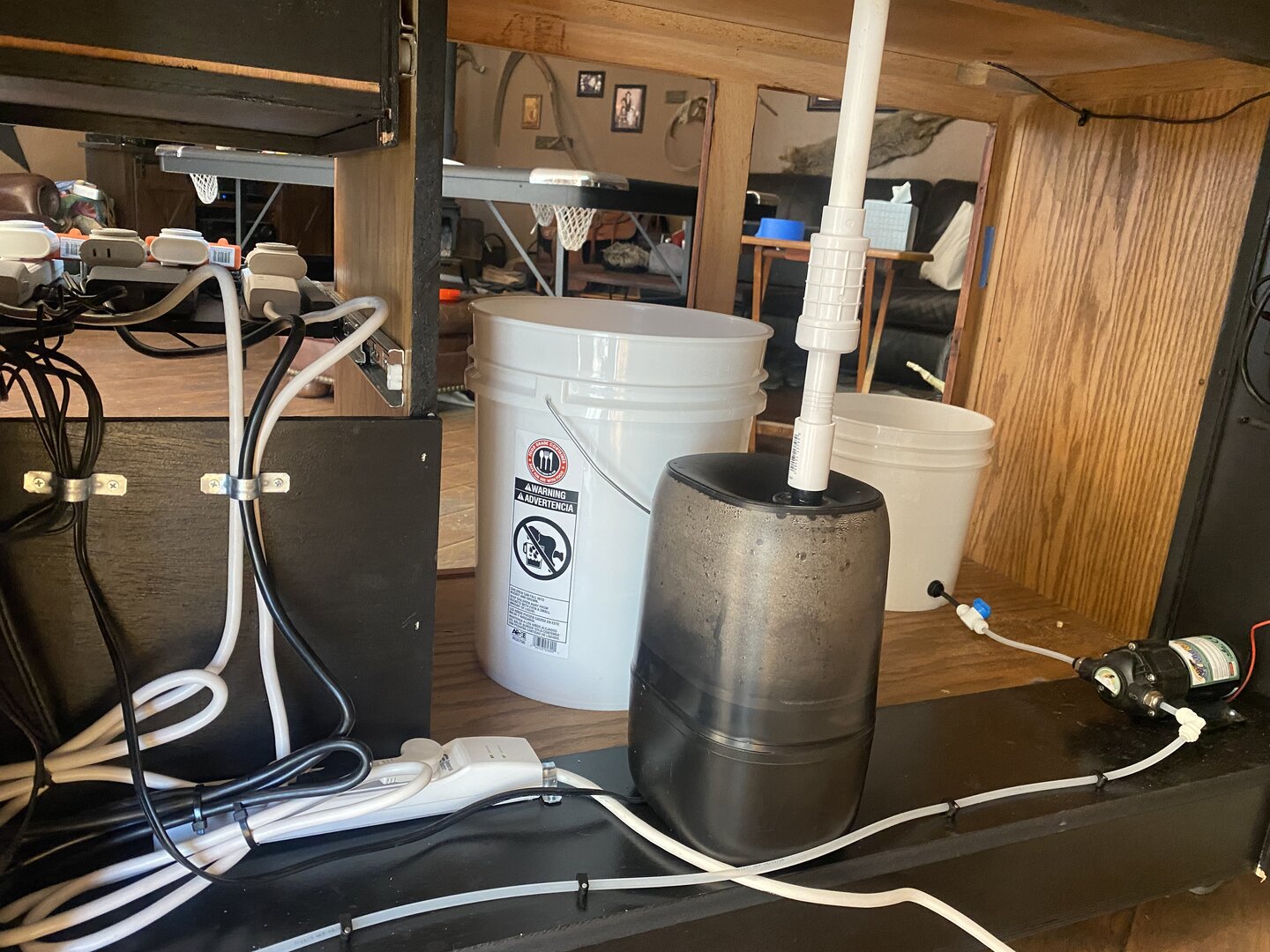

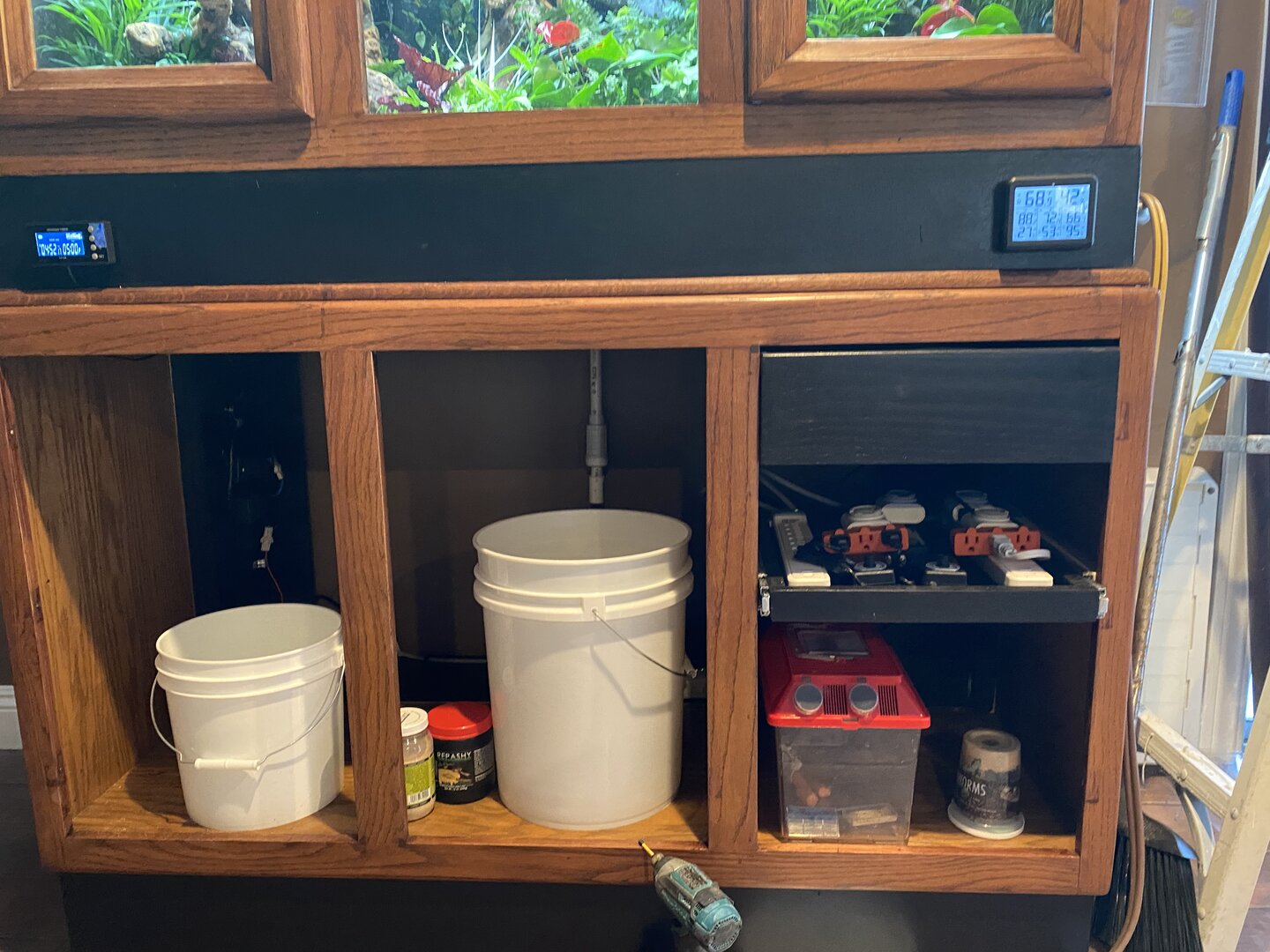

My favorite part is the pull out electrical tray , where I have all the timers very easy access all wires are hidden within the cabinet , The two fake black trees made out of spray foam have a 2 inch tube for light wires and miss King tubing to go down into the bottom of the cabinet without going outside of the cabinet , The center tree supports the misting system pvc which has four outlets to saturate the entire cabinet with fog , of course when the tank temperature is above 80 the fogger doesn’t work very well , I have it set to go off at 1 o’clock in the morning until four , when I wake up the entire set up is a big cloud .. before leaving for work I open up the side doors . It also has two powered fans variable speed . Which literally dry almost the entire tank out over the eight hours during the day , top of tank drops to about 30% humidity at 80° Center of the tank is 74 with about 50% humidity bottom of the tank generally stays about 64 at 90% humidity . So I have a great Gradient from top to bottom with three sensors


Attachments

  • 82A043A4-1640-4F52-946C-E8A964685F3D.jpeg
    163.7 KB · Views: 22
  • 7926B945-42DC-4481-BB33-CFA97D1436CC.jpeg
    179.7 KB · Views: 27
  • 815DC1CF-CDFC-4319-B3A5-918120CEC2AC.jpeg
    115.6 KB · Views: 27

PlanetRemulak

Avid Member
My favorite part is the pull out electrical tray , where I have all the timers very easy access all wires are hidden within the cabinet , The two fake black trees made out of spray foam have a 2 inch tube for light wires and miss King tubing to go down into the bottom of the cabinet without going outside of the cabinet , The center tree supports the misting system pvc which has four outlets to saturate the entire cabinet with fog , of course when the tank temperature is above 80 the fogger doesn’t work very well , I have it set to go off at 1 o’clock in the morning until four , when I wake up the entire set up is a big cloud .. before leaving for work I open up the side doors . It also has two powered fans variable speed . Which literally dry almost the entire tank out over the eight hours during the day , top of tank drops to about 30% humidity at 80° Center of the tank is 74 with about 50% humidity bottom of the tank generally stays about 64 at 90% humidity . So I have a great Gradient from top to bottom with three sensors
That is so unbelievably cool!! This is definitely not me feeling the slightest bit jealous. 😂
